NF61S Micro 754
9

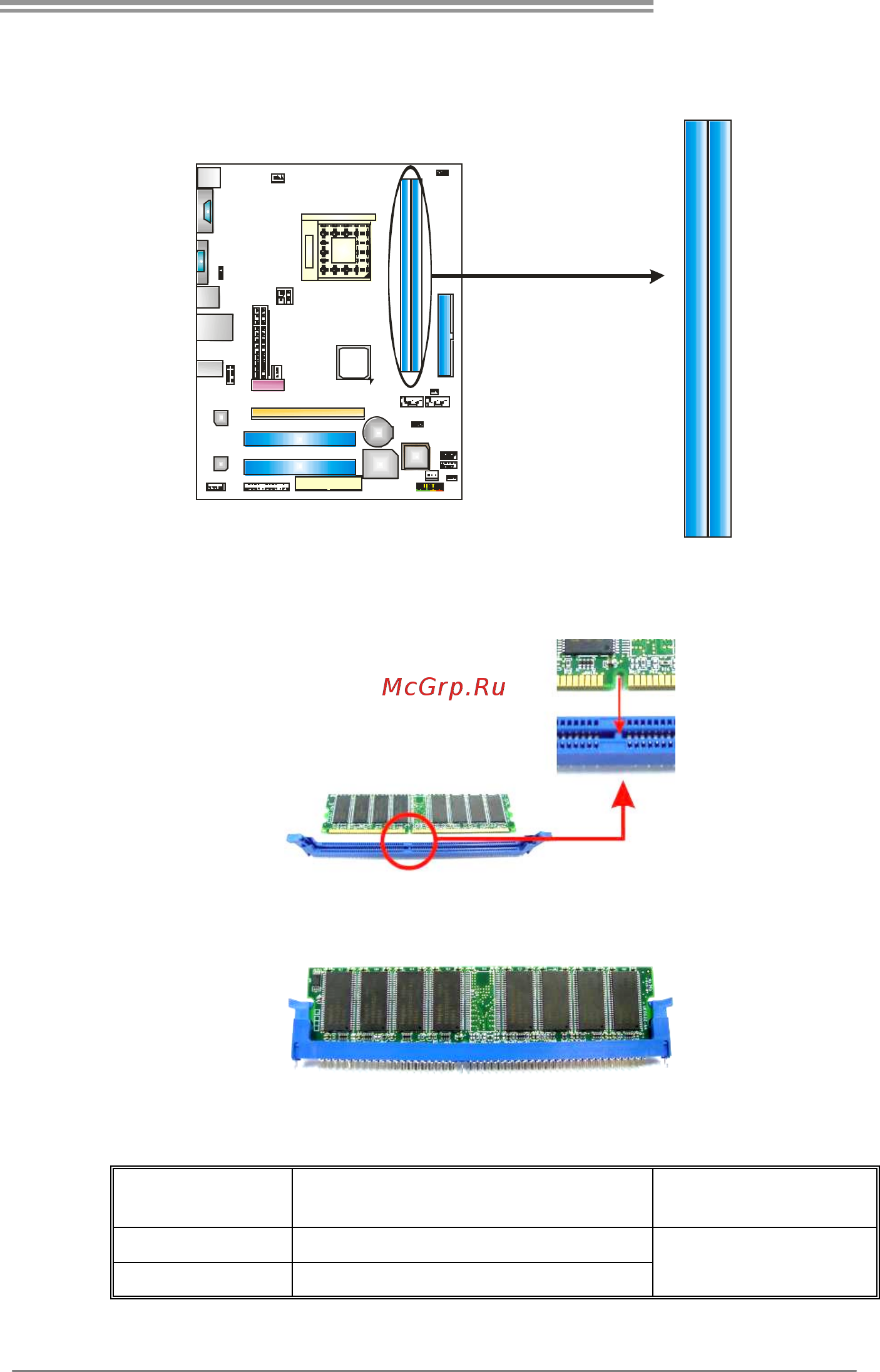

2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
DI MM1
DI MM2
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
B. Memory Capacity
DIMM Socket
Location
DDR Module Total Memory Size
DIMM1 256MB/512MB/1024MB *1
DIMM2 256MB/512MB/1024MB *1
Max memory 2GB.
