15
Chapter 4 Configuration Utility
The Configuration Utility is a powerful application that helps you configure the WL-U356M and
monitor the link status and statistics during the communication process.
When the WL-U356M is installed, the configuration utility will be displayed automatically. This
card will auto connect to wireless device which has better signal strength and no wireless
security setting

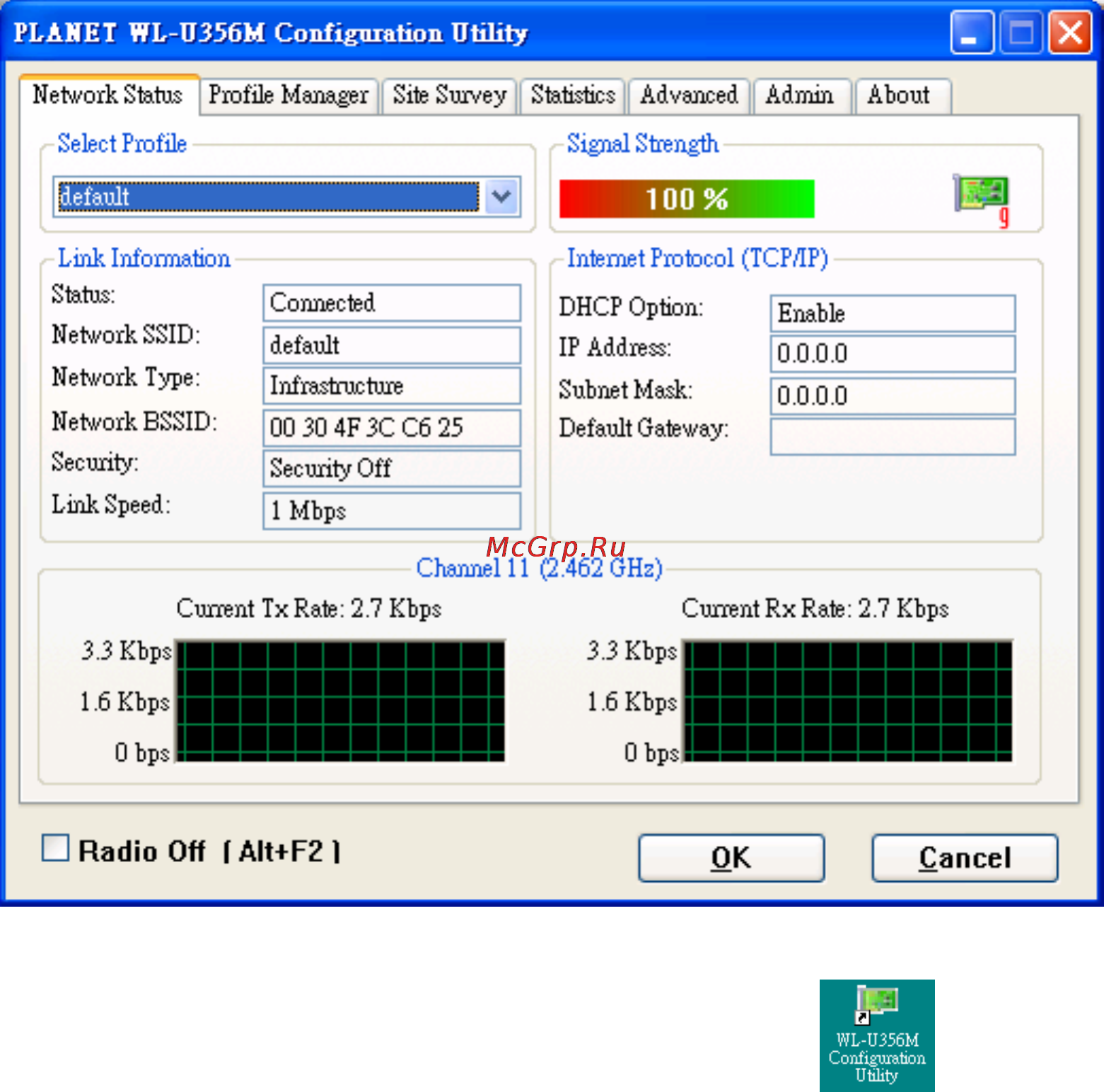

Figure 4-1
If the Configuration Utility does not appear, you can double-click the on your system
desktop start it. Another way to start the Configuration Utility is to click on Start > Programs >
PLANET WL-U356M > WL-U356M Configuration Utility.exe.
