9
Chapter 3 Installation Procedure
Before you proceed with the installation, it is necessary that you have enough information
about the Wireless USB Adapter. Follow the procedure described below in this chapter to
install the USB adapter under Windows 98SE/Me/2000/XP.
3.1 Configuration Utility & Driver Installation
The following installation operates under Window XP. The procedure also applies to Windows
98SE/Me/2000.
Note 1: If you had ever installed the other Wireless Cards before, please uninstall
the existed drivers and utilities first.
Note 2: Please install the configuration utility before insert WL-U356M into the USB
port of the computer.
1. Insert the bundled CD into the CD-ROM drive to launch the autorun program. Once
completed, a welcome menu screen will appear.

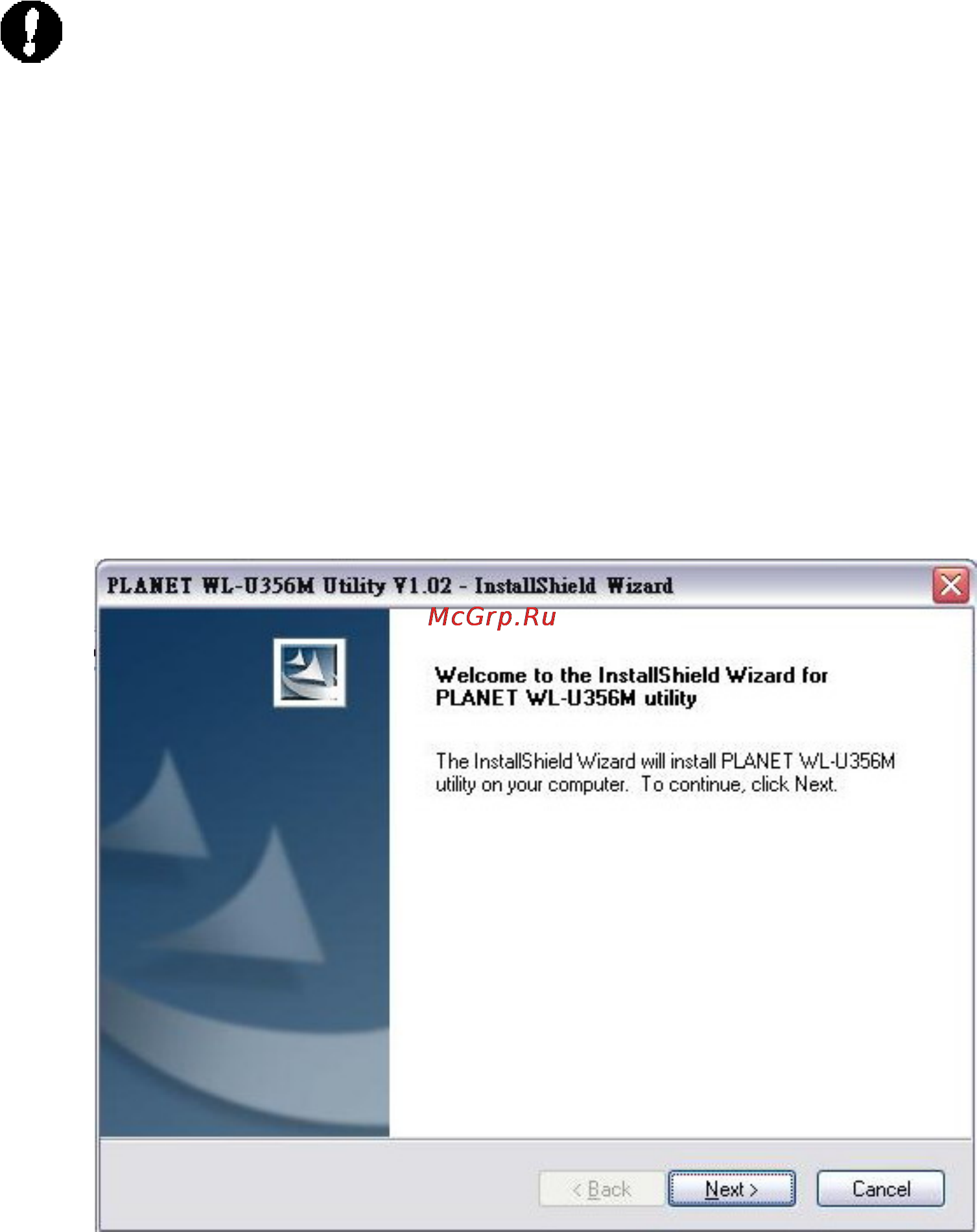

2. Click the “WL-U356M Utility” hyperlink in the WL-U356M field to initiate the installation
procedure. You will see the below InstallShield Wizard dialog box. Please click “Next” to
continue.
Note: If the above screen does not appear, click “Start” at the taskbar. Then, select “Run”
and type “D:\Utility\WL-U356M\setup.exe”, where D is your CD-ROM drive.
