Chapter 2 Designing Your Wireless Network
The PLANET WL-U356M supports up to 54 Mbps connections. This card is fully compliant with
the specifications defined in IEEE802.11g standard. It is designed to
complement USB port
computers and supports Windows 98SE/Me/2000/XP
2.1 PLANET WL-U368M

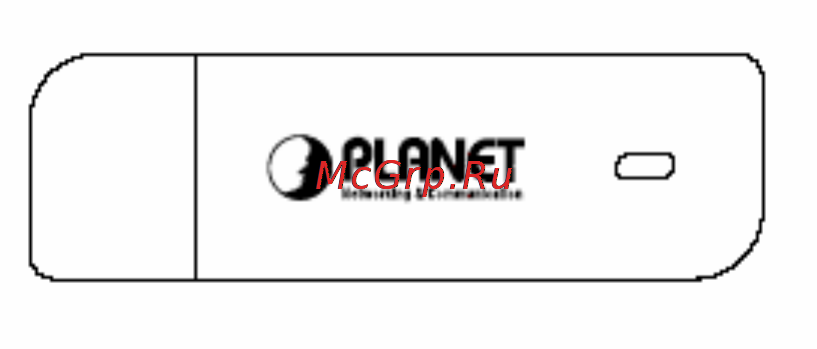

The status LED indicators of the PLANET WL-U356M are described in the following.
z Lnk/Act ON (Green): Indicates a valid connection
z Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving data.
Figure 2-1
