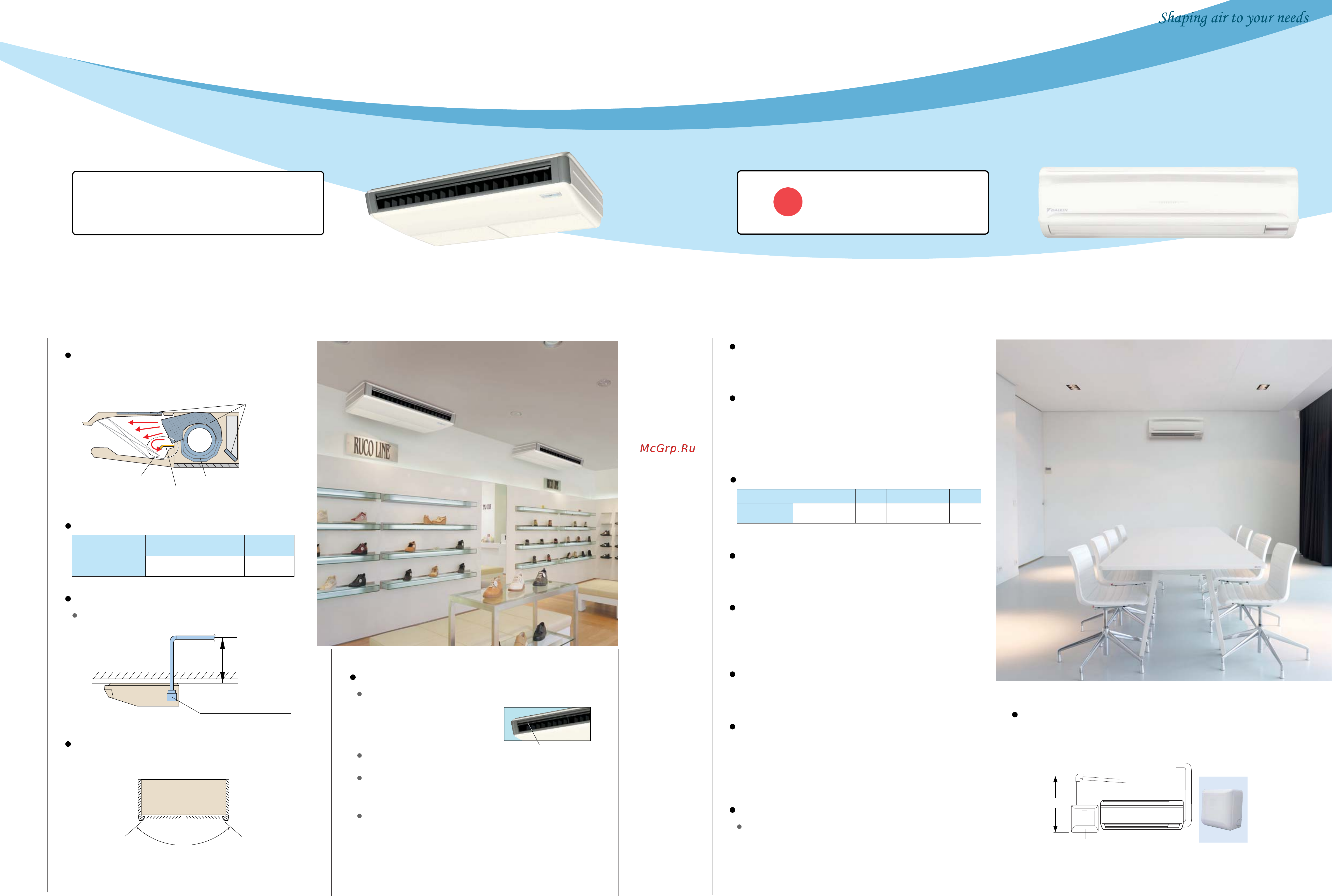

INDOOR UNIT LINEUP
2221
Wall Mounted Type
Stylish flat panel design harmonised
with your interior décor
FXAQ20P/FXAQ25P
FXAQ32P/FXAQ40P
FXAQ50P/FXAQ63P
New
Ceiling Suspended Type
Slim body with quiet and wide airflow
Adoption of QUIET STREAM FAN
Drain pump kit (option) can be easily
incorporated.
Easy-to-clean flat design
Maintenance is easier because servicing can
be performed from below the unit.
Non-dew Flap with no implanted bristles
FXHQ-MA
Sound level
(H/L)
32
36/31
63
39/34
100
45/37
(dB(A))
Low operation sound level
Uses the quiet stream fan and many
advanced technologies.
Sound absorption
material
Turbulent flow
is produced
Straightening vane
Quiet stream fan
Installation is easy
Maintenance is easy
Drain pump kit
(built inside main unit)
600 mm
Bristle-free Flap minimises
contamination and makes
cleaning simpler.
Non-dew Flap
100
°
Wide air discharge openings produce a
spreading 100° airflow.
A long-life filter (maintenance free up to one
year) is equipped as standard accessory.
FXHQ32MA/FXHQ63MA
FXHQ100MA
Drain pan and air filter can be kept clean by
mould-proof polystyrene.
Drain pump kit is available as optional accessory,
which lifts the drain 1,000 mm from the bottom of
the unit.
Vertical auto-swing realises efficiency of air
distribution. The louvre closes automatically
when the unit stops.
5 steps of discharge angle can be set by
remote controller.
Discharge angle is automatically set at the
same angle as the previous operation when
restarting. (Initial setting: 10˚ for cooling and
70˚ for heating)
Flexible installation
Drain pipe can be fitted to from either left or
right sides.
Drain pump kit
1,000 mm
Height of drain-up
Indoor unit
Stylish flat panel design creates a graceful
harmony that enhances any interior space.
Flat panel can be cleaned with only the single
pass of a cloth across their smooth surface.
Flat panel can also be easily removed and
washed for more thorough cleaning.
Low operation sound level
47/41
63
42/37
50
39/34
40
38/31
32
36/31
25
35/31
20
Sound level
(H/L)
FXAQ-P
(dB(A))
