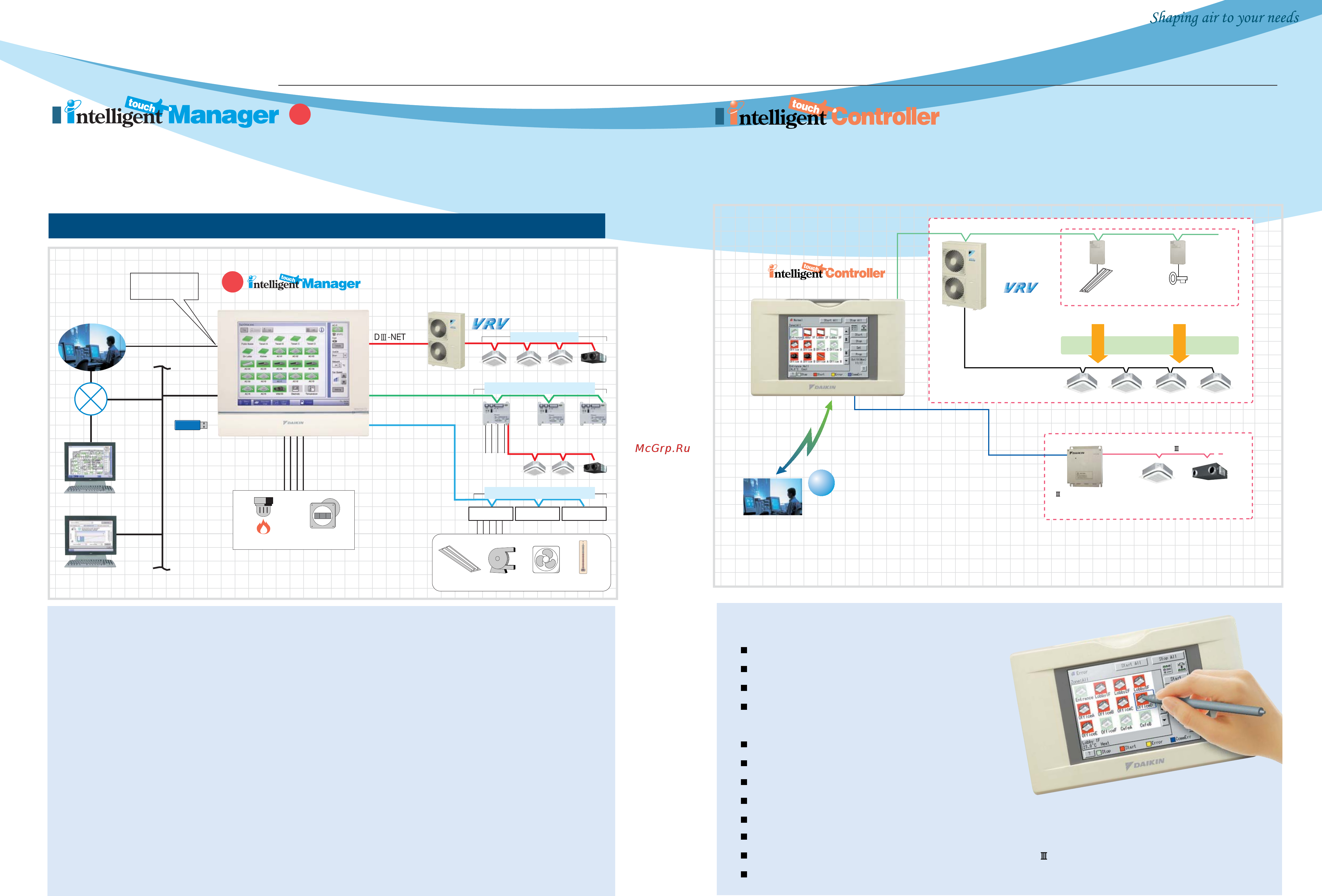

CONTROL SYSTEMS
1413
Advanced control systems
One touch selection to total air comfort
Up to 2,560 groups (5,120 indoor units) can be controlled by one system
Air Conditioning
Network Service System
Web Access
Web Access
LAN
Max. 50m
iTM plus adaptor
line
Di/Pi port
Max. 500m
I/O expansion line
I/O System (Max. 30 modules)
iTM plus adaptor
(Max. 7 adaptors)
I/O moduleI/O module I/O module
Lighting
Pump
Fan Sensor
Internet
Intranet
system overview
Max. 64 groups
Phone line
LAN
Internal modem
(option)
Fire alarm
Max. 200m
kWh meter
Di/Pi line
USB memory
line
DCM601A51
Daikin proudly introduces its new
intelligent Touch Manager
, a VRV system controller
featuring an array of simple, useful system management functions for added value.
New
New
Features
• Handy area settings simplify detailed management of VRV.
• Display of floor plans enables a quick search of desired air conditioning units.
• Operation history shows manner of control and origin in past operations of air conditioning units.
Central control
• Remote access with a PC allows total air conditioning management using the same type of screens as those displayed in the
intelligent Touch Manager
.
• Authorised users can centrally control individual air conditioning units from their own computers.
Remote access
• VRVs are controlled automatically throughout the year by the schedule function.
• Interlocking VRVs and other equipment enables easy automation of building facilities operation.
• Setback adjusts temperature settings even when rooms are unoccupied.
Automatic control
• The Energy Navigator feature simplifies energy management by tracking energy consumption data and identifying inefficient
operation.
Energy management
• Contact information of maintenance contractors can be registered and displayed.
• E-mails are sent automatically to alert of malfunctions and potential trouble.
• The
intelligent Touch Manager
can link to the Air Conditioning Network Service System for 24-hour monitoring of operating
conditions and status.
Troubleshooting
• A single
intelligent Touch Manager
can manage a small building or be expanded to handle medium- to large-sized buildings.
• Large building properties can also take advantage of the
iTM integrator
to link up and expand system up to 5
intelligent Touch
Managers
for integrated control.
Scalability
Communication functions in the user-friendly icon-based multilingual controller simplify
centralised control of the VRV system.
Features
Colour LCD touch panel icon display
Small manageable size
Simplified engineering
Multi language (English, French, Italian, German,
Spanish, Dutch, Portuguese, Chinese and Korean)
Yearly schedule
Auto heat/cool change-over
Temperature limitation
Enhanced history function
Simple Interlock Function
Built-in modem for connecting to Air Conditioning Network Service System (Option)
Management of facilities/equipment other than A/C units (By adding Dio unit or Di unit)
Doubling of number of connectable indoor units by adding a D -NET Plus Adaptor (Option)
Input
(Lights)
Input (Key signal -
General purpose ADP)
Dio Unit
DEC102A51
(Option)
Di Unit
DEC101A51
(Option)
System
Set temperature
change command
OFF
command
RS-232C
Air Conditioning Network
Service System modem
for connections
Number of indoor units expanded from 64 to 128.
D -NET
D -NET Plus Adaptor
DCS601A52 (Option)
Indoor Unit
Heat Reclaim
Ventilator
ACC centre
• Air Conditioning Network Service System
(Optional Maintenance Service)
System
Components
Via internet
DCS601C51
system overview
