Daikin RXYMQ5PVE [6/20] Control systems

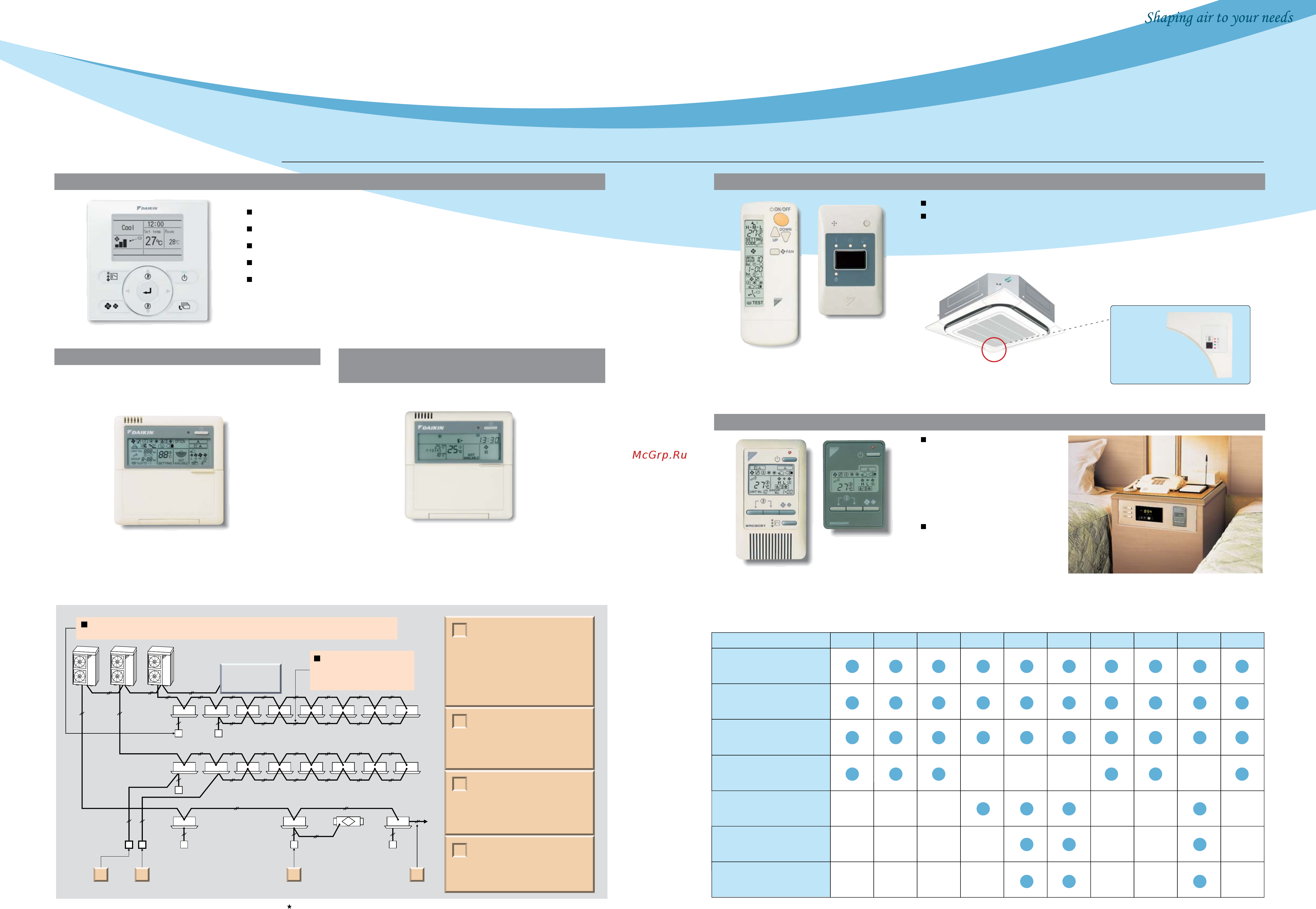

![Daikin RXYMQ5PVE [6/20] Control systems](/views2/1712404/page6/bg6.png)
Control systems
The VRVIII-S system uses the same DIII-NET communication system as the
VRV, enabling the use of advanced control systems.
CONTROL SYSTEMS
Wireless remote controller (Option)
Simplified remote controller (Option)
Individual control systems
Outdoor
unit
Indoor unit
Forced OFF
input
Remote controller
Remote controller
Remote controller
Remote controller
Remote controller
Remote controller
Remote
controller
Remote
controller
Heat Reclaim
Ventilator
The indoor unit can be connected by the two
remote controller, for example one in the room
and the other one in the control room, which
can control the operation of indoor unit freely.
(The last command has a priority.) Of course,
the group control by two remote controller is
also possible.
Control by two remote controller
The system can be expanded to add
several controllers, such as BMS, Forced
OFF input and etc.
Expansion of system control
In all the series of VRV, Cool/Heat changeover in the same refrigerant
circuit can be changed by the remote controller of the indoor unit.
Control of Cool/Heat
changeover
One remote controller can
control the operation of max.16
indoor units at the same time.
Group control
Equipment
related to the
central control
1 2 3
The wiring of remote controller can be
extended to max. 500 m and it is possible
to install the remote controllers for the
different indoor units in one place.
Remote control
The operation of Heat Reclaim Ventilator can
be controlled by the remote controller of the
indoor unit. Of course, the remote controller
can display the time to clean the filter.
Control for the combined operation
4
4
3
2
1
Refer to page 7 for the total number of indoor units that can be connected to the outdoor unit.
The wired remote controller supports a wide range of control functions
109
The same operation modes and settings as with wired remote controllers are possible.
A compact signal receiver unit (separate type) to be mounted into a wall or ceiling is
included.
Large buttons and arrow keys for easy operation.
Guide on display gives an explanation of each setting.
Backlight and dot matrix LCD display for easy viewing.
Weekly schedule timer can be set up easily.
10 display languages are available.
(English, German, French, Spanish, Italian, Portuguese, Greek, Dutch,
Russian and Turkish)
• A signal receiver unit (installed type) for a Ceiling Mounted Cassette (Round Flow,
Compact Multi Flow, Double Flow) type, Ceiling Suspended type and Wall Mounted
type is mounted into the indoor unit.
The remote controller has
centralised its frequently used
operation selectors and switches
(on/off, operation mode,
temperature setting and airflow
volume), making itself suitable
for use in hotel rooms or
conference rooms.
The exposed type remote
controller is fitted with a
thermostat sensor.
Signal receiver unit
(Separate type)
Wireless remote
controller
The concealedtype remote controller smartly fits into a
night table or console panel in a hotel room.
Exposed type
(BRC2C51)
Concealed type
(For hotel use)
(BRC3A61)
Signal receiver unit
(Installed type)
Signal receiver unit can be
installed on the panel
ex. Ceiling Mounted Cassette (Round Flow) type
Wired remote controller
(BRC1C62)
Wired remote controller with
weekly schedule timer
(BRC1D61)
Wireless remote controller*
(Installed type signal receiver unit)
Wireless remote controller*
(Separate type signal receiver unit)
Simplified remote controller
(Exposed type)
(BRC2C51)
Simplified remote controller
(Concealed type: for Hotel use)
(BRC3A61)
FXFQ FXZQ FXCQ FXDQ FXMQ FXHQ FXAQ FXL(N)QFXKQ
*Wireless remote controller and signal receiver unit are sold as a set.
*Refer to page 35 for the name of each model.
Wired remote controller (Option)
BRC1C62
BRC1E61
Wired remote controller
with weekly schedule timer
(Option)
BRC1D61
Adds weekly schedule timer function.
Displays current airflow, swing, temperature,
operating mode and timer settings.
Notes: 1. Standard remote controllers (BRC1C62) not required.
2. If the BRC1D61 is connected to the centralised remote controllers
(DCS303A51, DCS302CA61, DCS301BA61, DST301BA61), the
schedule function is not available.
Wide variation of remote controllers for indoor units
Navigation remote controller (Wired remote controller) (Option)
*Refer to page 35 for the name of each model.
FXUQ
Navigation remote controller
(Wired remote controller)
(BRC1E61)
