1. Introduction – About the uninstaller. The un-installation will be started once the Uninstall

button is hit.

2. Uninstalling – The un-installation is in progress. Note that every files and folder created

during the installation will be removed.

3. Uninstall Complete – Un-installation completed successfully.

4.2 How to use MLRD Management Suite

4.2.1 AP Finder

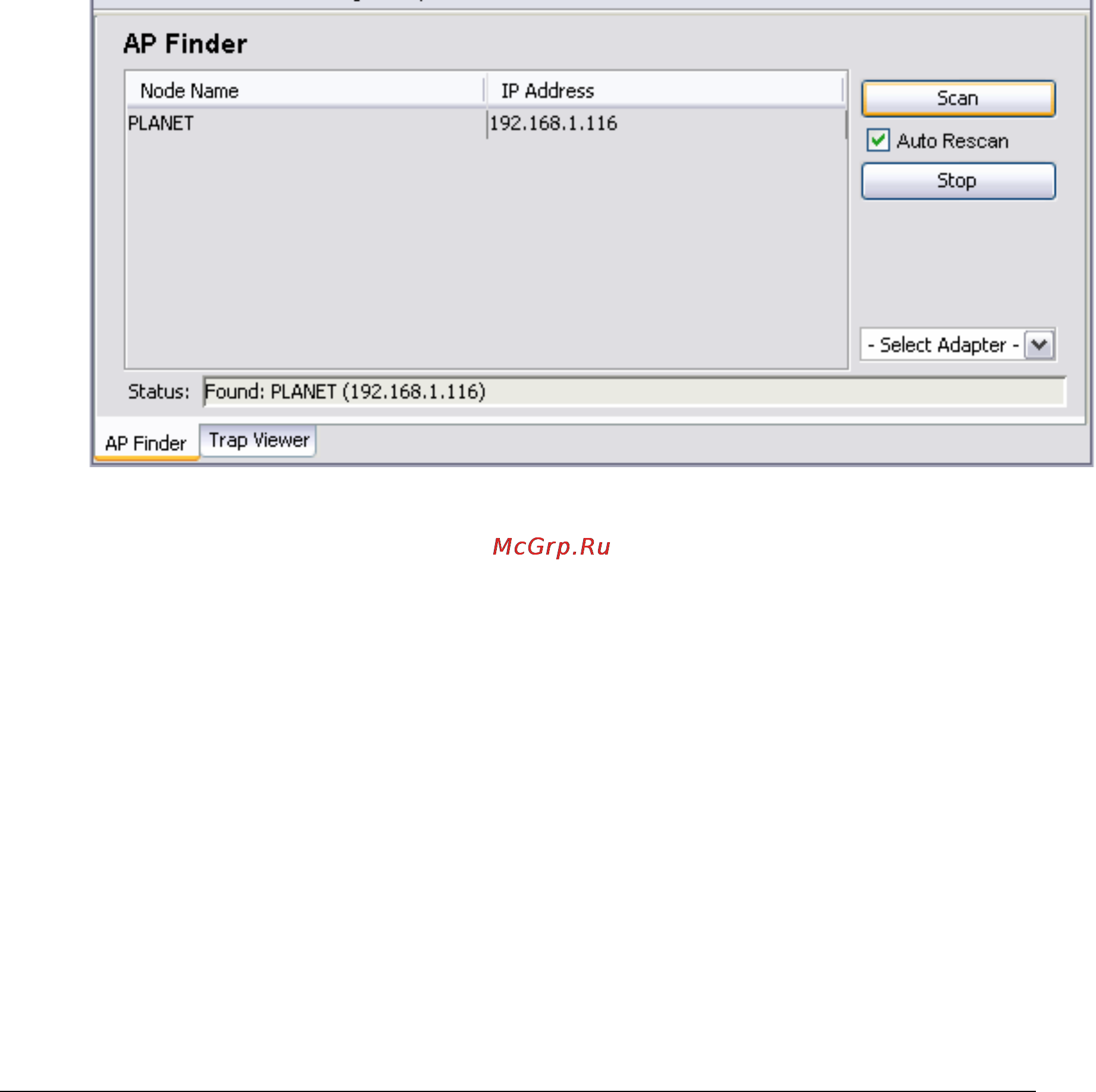

The AP Finder is used to discover the IP Address of the MAP-2105 available in the subnet. The

figure below illustrates the outlook of the AP Finder.

In order to start scanning for the nodes, select the Scan button at the right pane of the AP Finder.

The system will search for the available MAP-2105 and display at the table. Alternatively, user

can start the AP-scan by select the Actions > Scan Start from the menu bar.

On the other hand, the Stop button, or Actions > Scan Stop at the menu bar is used to cancel

the scan.

Check the Auto Rescan option in between the Scan and Stop button to enable the scanning

process restart automatically after sleep for certain period. User can configure this feature via

Settings > Auto-Rescan option from the menu bar as well.

To set the time interval for rescanning, choose Settings > Rescan Interval from the menu bar. A

window will be pop-up to prompt the user to enter the desired duration in seconds, as shown at

the following figure.
