the Output File Name text box in the Settings column and press the Set button. Besides, choose

Settings > Output Filename from the menu bar would open a window to prompt the user for the

new log file name.

To disable the log feature, uncheck the Write to File check box in the Settings column and hit the

Set button, or uncheck the Settings > Write to File menu item from the menu bar. Under this

circumstance, the alarms deleted from the Trap Viewer will be gone forever.

The remaining two setting option in the Settings column is the Port and Community. The Port

defines the port number of the system to listen to the alarms, while the Community defines the

password to match the community of incoming traps. Similarly, user can fill in the value in the

space provided and hit the Set button or select from the menu bar.

4.2.3 MLRD Manager

The MLRD Manager is the configuration pages of a MAP-2105. User may open the MLRD

Manager to update or edit the settings of the node. In order to start up the MLRD Manager,

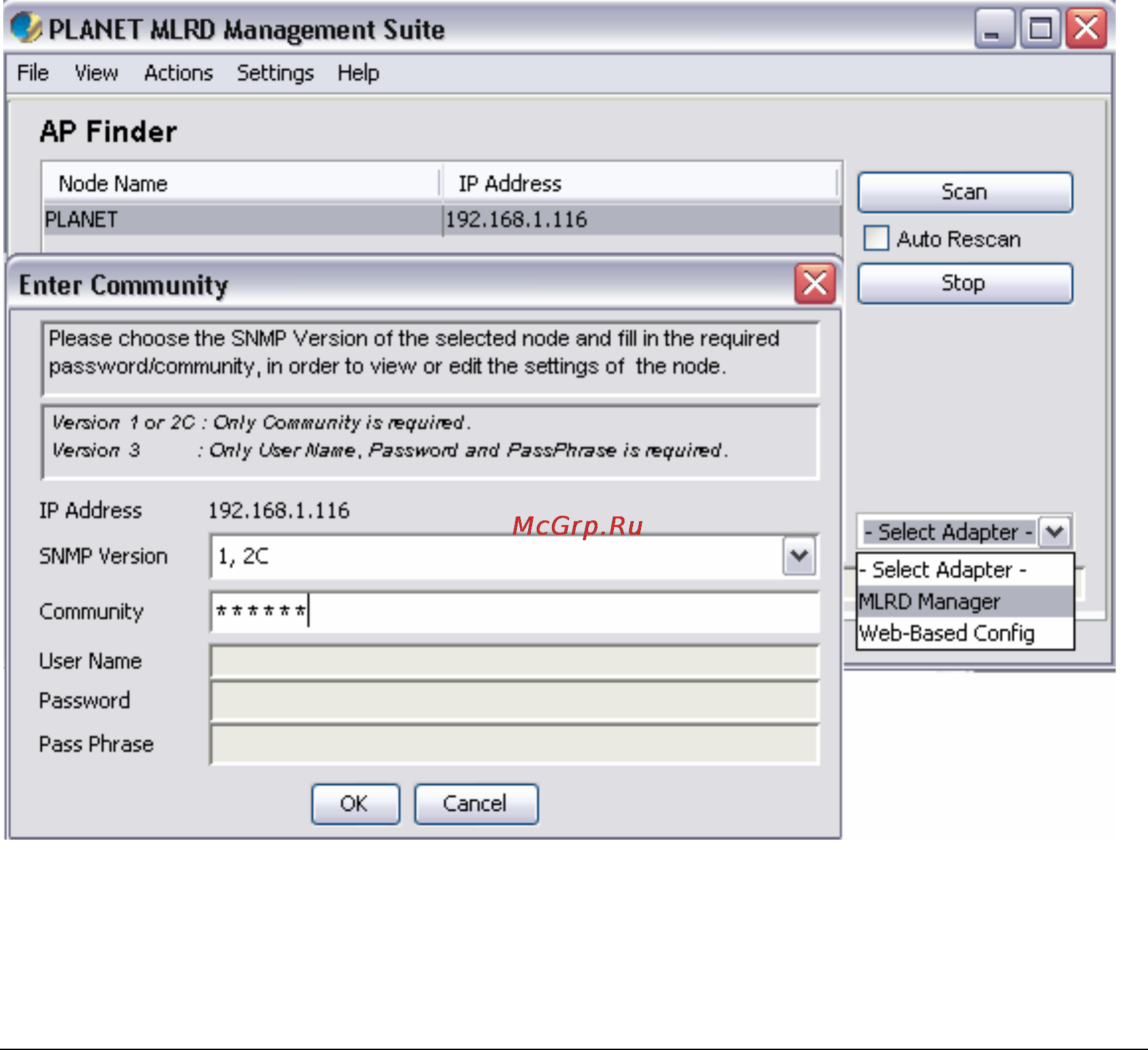

choose the MLRD Manager from the drop-down list at the left bottom corner of AP-Finder, as

shown:

This action will open window to prompt the user for the SNMP Passwords. The configurations can

only be done with the correct password or community. Note that the MLRD Manager is supporting

SNMP Version 1, 2c and 3. Thus for SNMP Version 1 or 2c, only the Community field is

compulsory, whereas for SNMP Version 3, the Username, Password and Pass Phrase fields is

required to be filled.
