Chapter 2 Basic Network Setup

This chapter describes a basic network environment formed by three mesh AP and one MAP-

2105. The administrators can add the mesh AP freely according to real application.

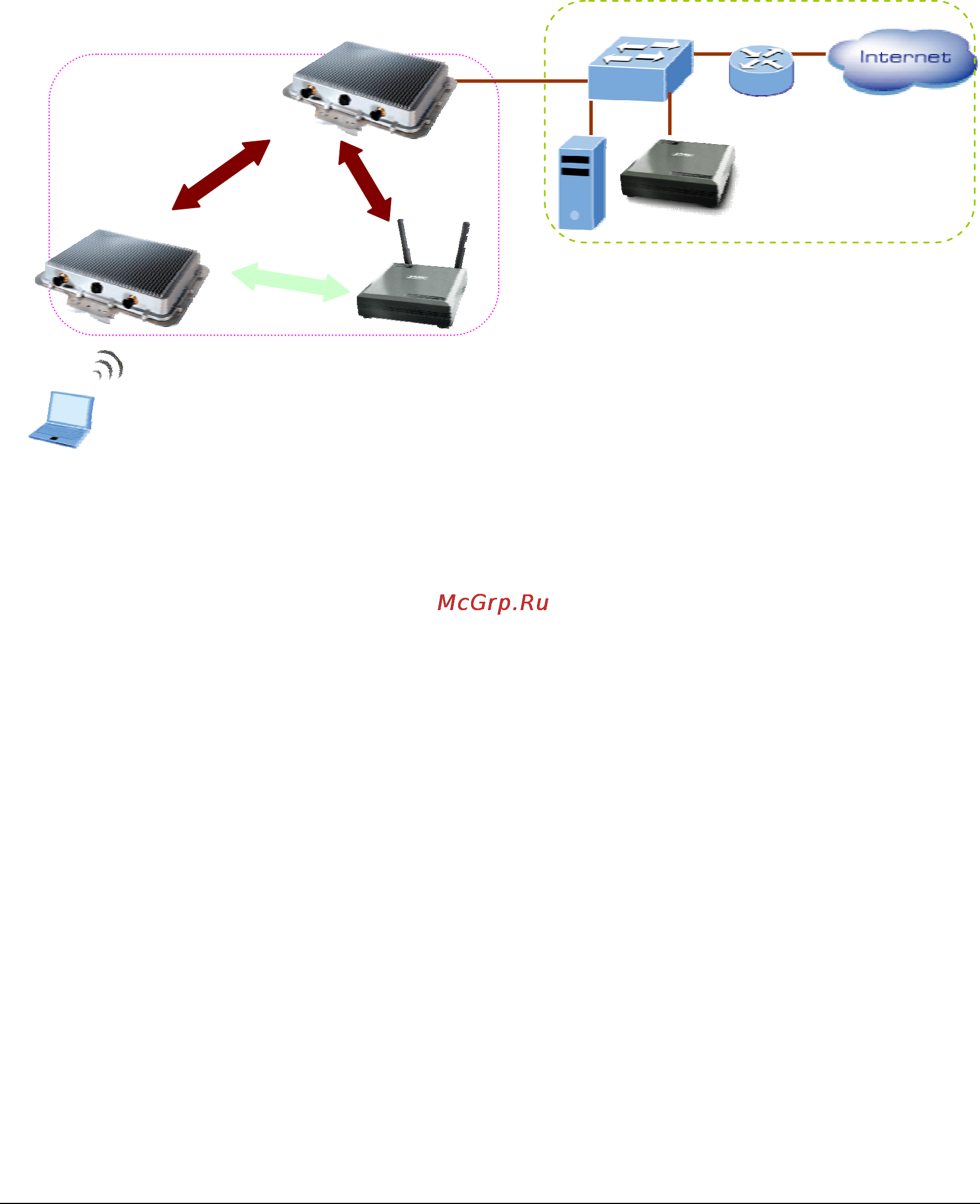

The sample network topology is as below.

Ethernet Switch

DHCP Server

Router

MAP-2105

802.11b/g

Mobile User

Mesh Relay

Mesh

Step 1: Gateway Configuration:

[Configuration -> Local Service -> VPN Server]

Enable VPN Server = checked

Add New User by pressing Add button

Username: test (it is defined by user)

Password: test (it is defined by user)

Assign IP: 10.16.1.7 (this address must be in the same IP segment as Gateway’s

Backhaul radio IP)

Comment: Testing (it is defined by user)

Status: Enable
