Planet MAP-2105 [7/66] Hardware installation

The MAP-2105 should connect to the network that provide DHCP services (the first time

installation) In this guide, we will base on XRT-401D (Internet Broadband Router) as the example

for DHCP server, switch and router, this installation can vary on the network planning.

The MAP-2105 should be installed in the same subnet to the Mesh Gateway for optimal

performance.

Note

The MAP-2105 is optimized for 500-user registration; however, the overall

network performance may vary on the real environment and application in

many aspects, such as the bandwidth to the Internet, the services / sessions

that the clients implement.

1.4 Hardware Installation

1. Using Category 3 or higher UTP or STP cable, connect the WAN port of MAP-2105 to a

10Mbps or 10/100Mbps Ethernet hub or switch, and connect the management station to a

hub or switch on the same LAN.

2. Connect the power adapter to the receptor on MAP-2105 and plug the other end to a wall

outlet or power strip.

Note

ONLY use the power adapter supplied with the MAP-2105. Otherwise, the

product may be damaged.

1.5 Startup the MAP-2105

To get the first management of the MAP-2105, please follow the following steps.

1. Connect the MAP-2105’s WAN port to the network where can provide the DHCP services.

For example, connect to the LAN port of XRT-401D.

2. Power on a PC that also connects to the LAN port of the XRT-401D with DHCP or fixed IP

address.

3. Open the Internet browser and go to the DHCP status page of XRT-401D to check the WAN

IP address of the MAP-2105.

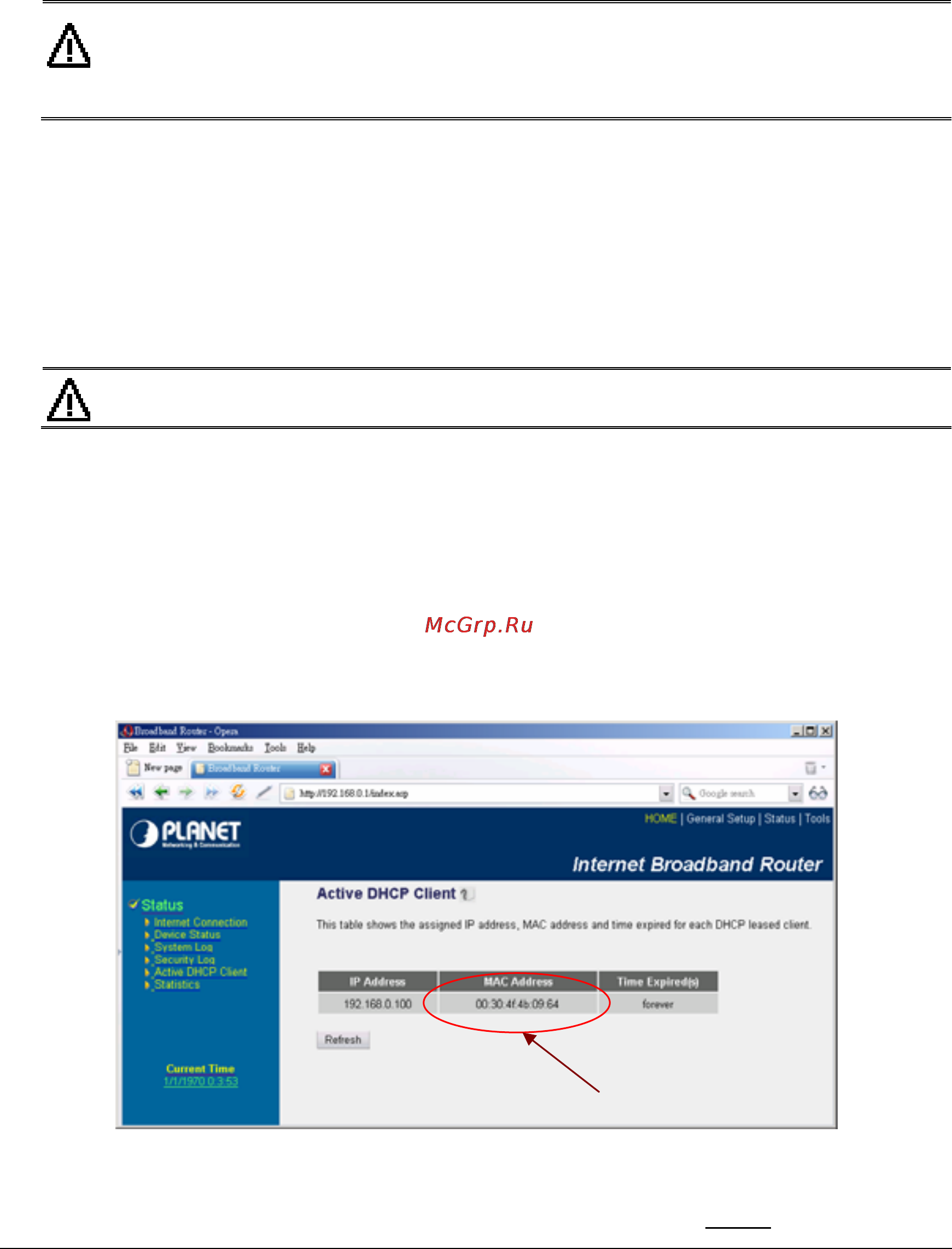

WAN MAC Address of

MAP-2105

4. Check the MAC address from the Web page and also the MAC address label of the MAP-

2105. For example, 09-64 as the figure above.

5. Key in the IP address you found for MAP-2105 with “

https://”. For example:
