Planet WAP-6000 [10/33] Chapter 3 initial setup

- -

Chapter 3 Initial Setup

The WAP-6000 allows configuration either via the configuration utility, known as PLANET WAP-6000

Locator or Web Browser through network. For the initial installation, we suggest using the PLANET

WAP-6000 Locator. Before using Locator, please make sure the personal firewall installed in your PC is

disabled.

It is strongly recommended to configure and manage WAP-6000 using a wired LAN computer.

3.1 Setup Procedures

1. Insert the bundled CD in the CD-ROM drive to initiate the autorun program. Click on the

"PLANET WAP-6000 Locator" hyperlink to activate the program.

Or you can start the installation as follows.

A. Click on Start Menu/ Run.

B. Enter “E:\UTILITY\Locator.exe” in the appeared box, where “E” is the letter of your CD-ROM

drive.

C. Click on “OK” button.

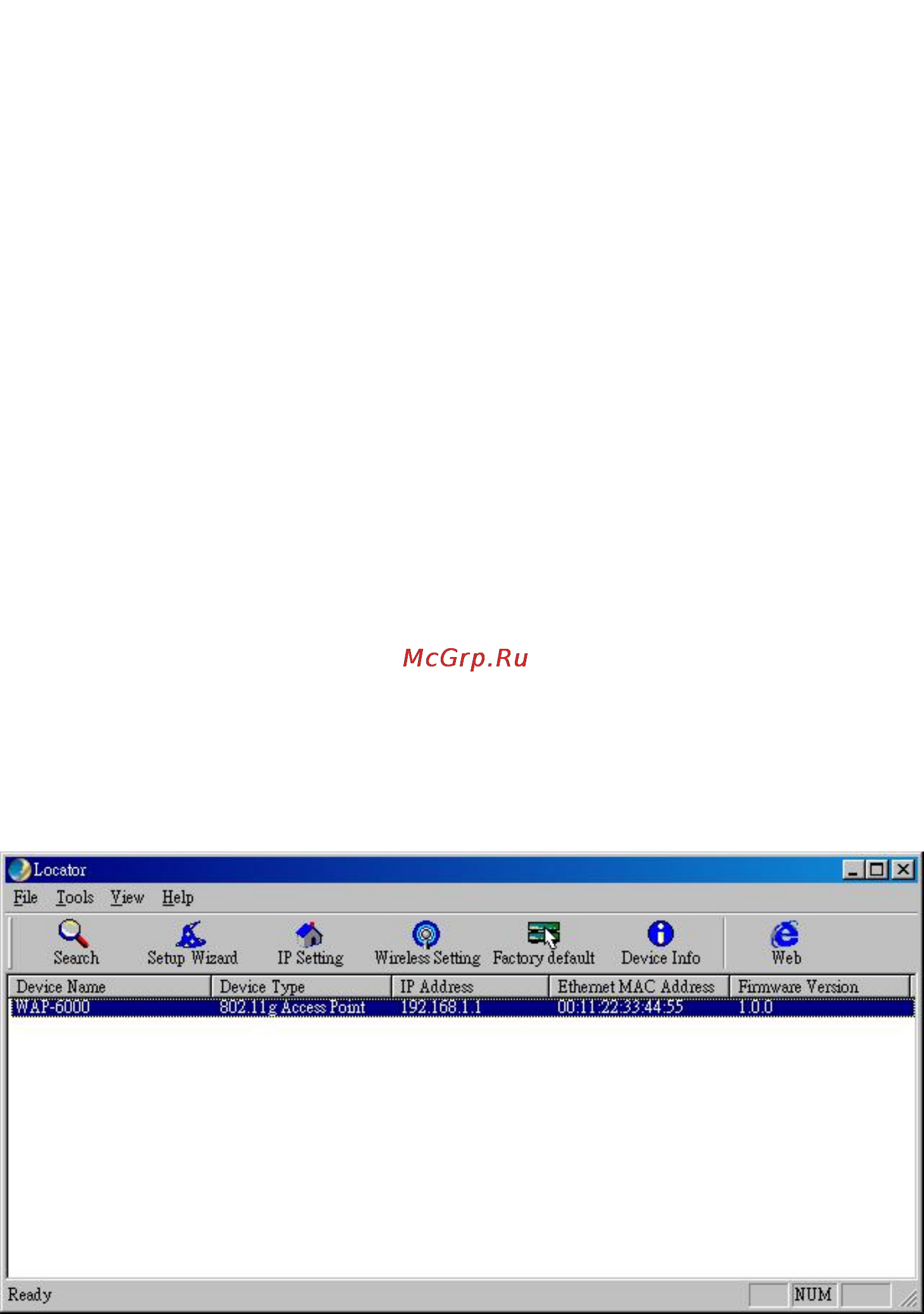

2. When the Locator is executed, it will search the available WAP-6000 on the same network. The

Locator shows you the Device Name, Device Type, IP Address, Ethernet MAC Address and

Firmware Version.

3. To setup the WAP-6000, just click on the “Setup Wizard” icon and the Locator will lead you step

by step to finish all the settings. After click on the “Setup Wizard” icon, the first page show up will

be “Login”. Please input your user name and password into the column. Default user name and

password are as below:

User Name: Admin

Password: (blank)

Please note the first character of user name is a capital letter.
