Chapter 4 Web Configuration

Web configuration provides a user-friendly graphical user interface (web pages) to manage your

WAP-6000. An AP with an assigned IP address (e.g. http://192.168.1.1) will allow you to monitor and

configure via web browser (e.g., MS Internet Explorer or Netscape).

1. Open your web browser.

2. Enter the IP address of your WAP-6000 in the address field (default IP address is http://192.168.1.1).

Please note that your PC’s IP address should be on the same IP subnet of the WAP-6000. For

example, you can configure your PC’s IP address to 192.168.1.2 if WAP-6000 is with IP 192.168.1.1.

3. A User Name and Password dialog box will appear. Please enter your User Name and Password here.

Default User Name and Password are as below:

User Name: Admin

Password: (blank)

Please note the first character of user name is a capital letter.

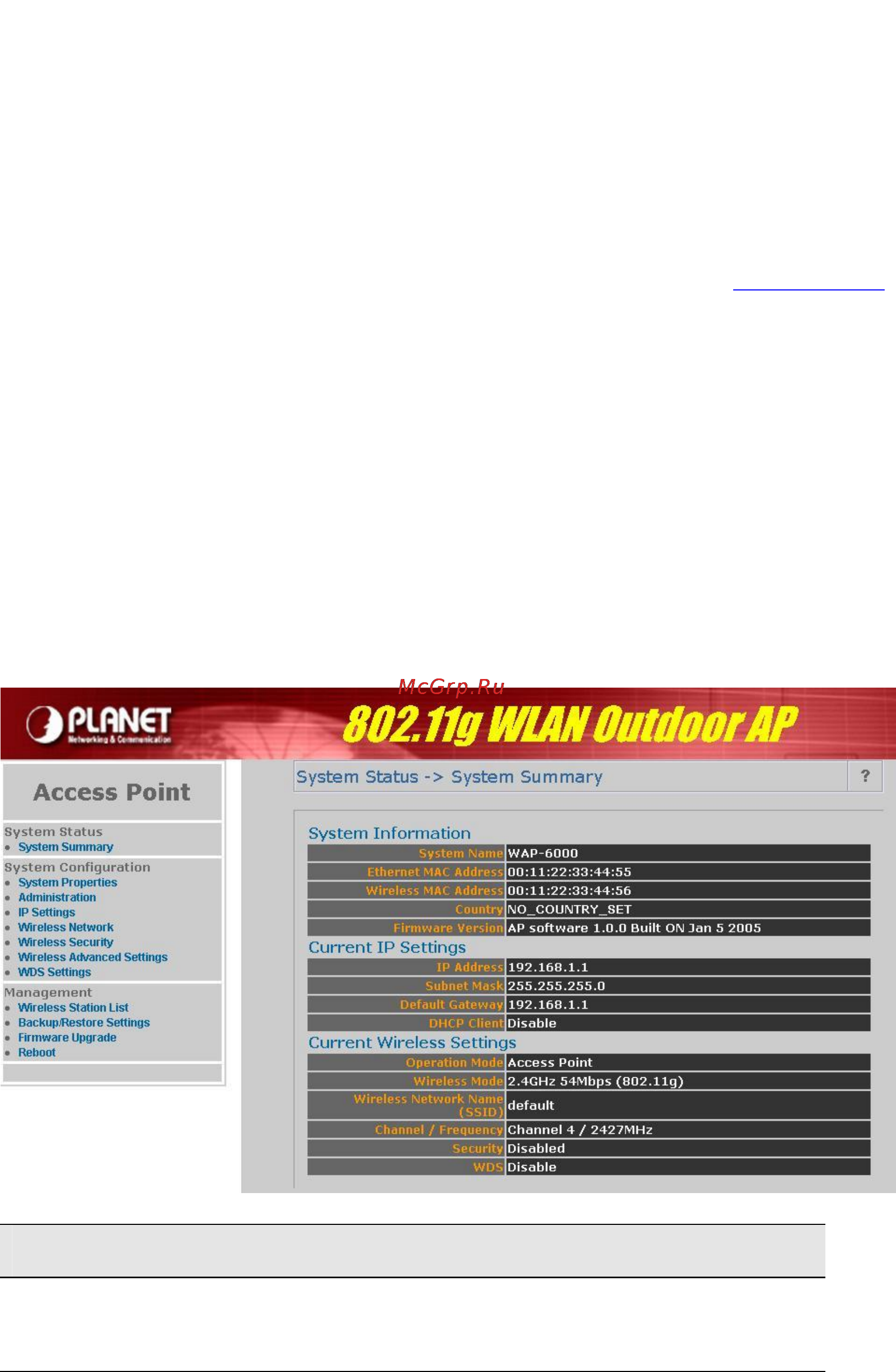

4. Then you will see the WAP-6000 web configuration page after click on “OK”.

4.1 Access Point Mode

4.1.1 System Summary

System Information

· This will display system name and both Ethernet MAC address and Wireless MAC

address. Current country setting and firmware version will also be available here.
