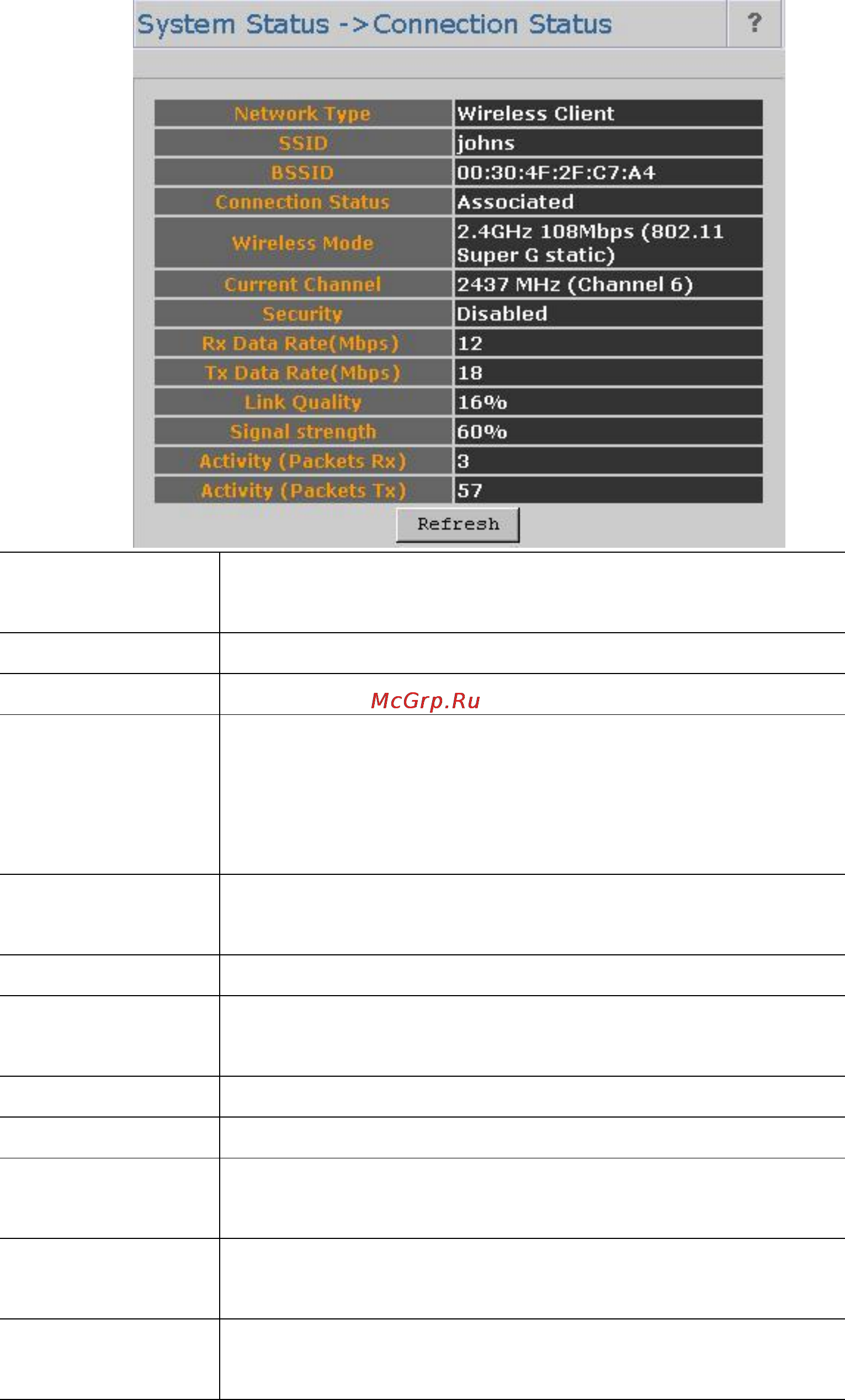

4.2.1 Connection Status

Network type Here indicates the WAP-6000 works in AP mode or Client mode

(Infrastructure mode / Ad Hoc mode).

SSID Here displays current SSID assigned to the WAP-6000.

BSSID The MAC address of the associated AP.

Connection status This column shows current connection status. If WAP-6000 already

connects to an Access Point or station, here will show “Associated”.

Otherwise, connection column will show “N/A” which means no

connection to any Access Point or station.

Wireless mode Here show the Access Point current work in 11b, 11g, or super G

mode.

Current channel This column indicates the radio channel currently in use.

Security Here indicates AP security settings in client mode. Should be either

“Disabled”, “WEP” or ‘WPA-PSK”.

Rx data rate (Mbps) Displays current receive data rate.

Tx data rate (Mbps) Displays current transmit data rate.

Link quality This column shows current link quality with AP in 0 to 100

percentage scale.

Signal strength This column shows current signal strength with AP in 0 to 100

percentage scale.

Activity Displays the number of packets received and transmitted through

this WAP-6000.
