3
GB

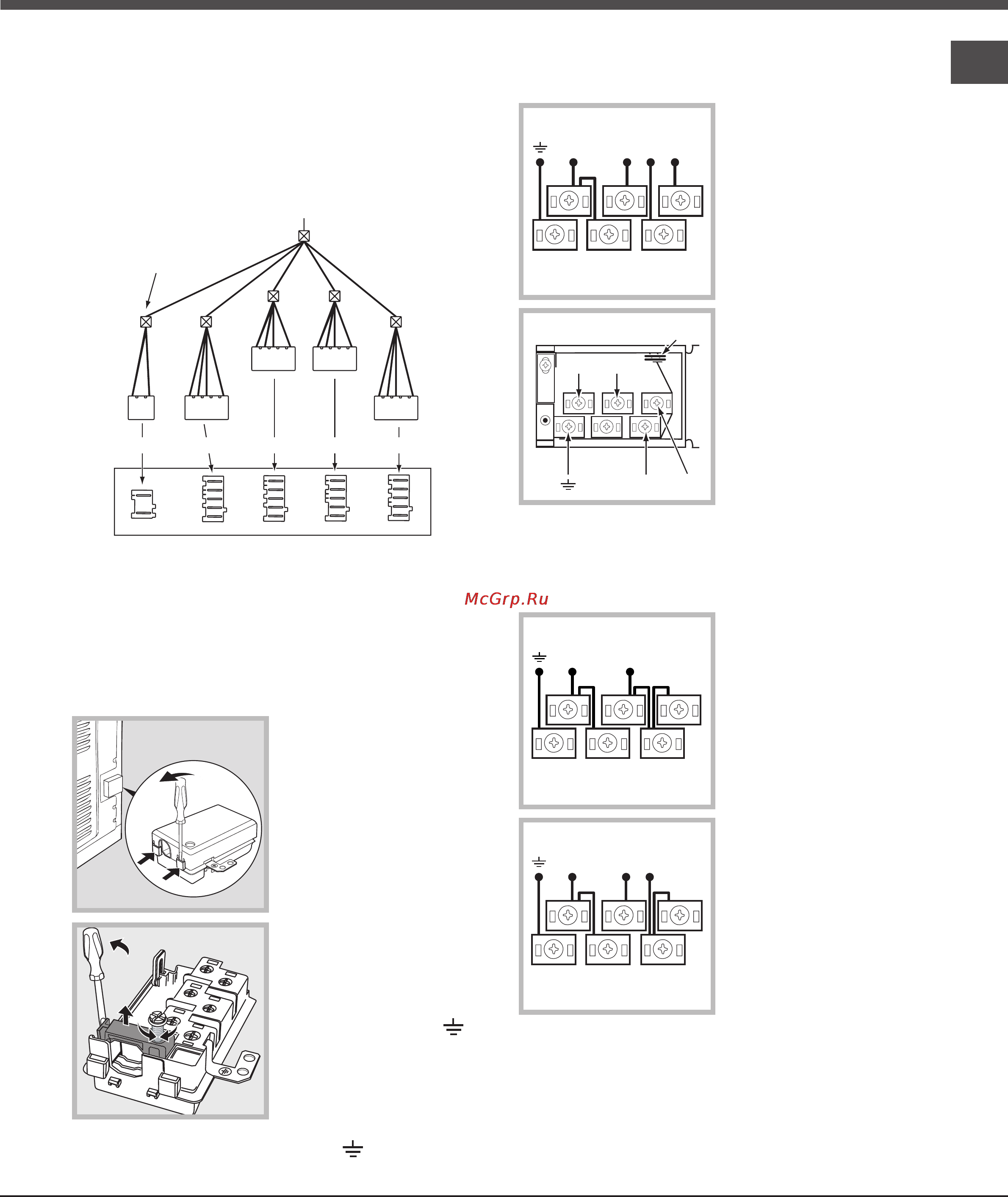

Electrical connections
The cooker must be connected to the mains electricity
supply. It is designed to operate with alternating
current at the voltage and frequency indicated on the
data plate (
see the following page
).
The hob is connected to the cooker using a special
connector.
Replace the metal protection after performing all the
necessary hob connections. If the hob is removed
from its position, the red cap which was originally
protecting the red connector must be replaced.
Fitting the power supply cable
1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(
see diagram
).
2. Loosen the cable
clamp screw and
remove it, using a
screwdriver as a lever
(see figure).
3. Remove the wire
contact screws L-N-
, then fasten the wires
under the screw heads,
respecting the colour
code: Blue (N), Brown
(L) and Yellow-Green
Verde (
).
The terminal board is designed for a 400 V three-
phase connection (
see diagrams below
).
400V 3N~H05RR-F
5x2.5 CEI-UNEL 35363
If the electrical system has other characteristics (
see
diagrams below
), carry out the electrical connection
using the connection supports provided in the box P.
230V ~H05RR-F 3x4
CEI-UNEL 35363
400V 2N~H05RR-F 4x4
CEI-UNEL 35363
3. Secure the power supply cable by fastening the
clamp screw.
4. Close the cover of the terminal board.
BUILT-IN HOB
BUILT-IN COOKER
WHITE RED YELLOWBLUE GREEN
Only on
certain models
NL1L3L2
1
3
2
4
5
N
L2
L1
L3
P
NL
1
3
2
4
5
NL1L2
1
3
2
4
5
