20

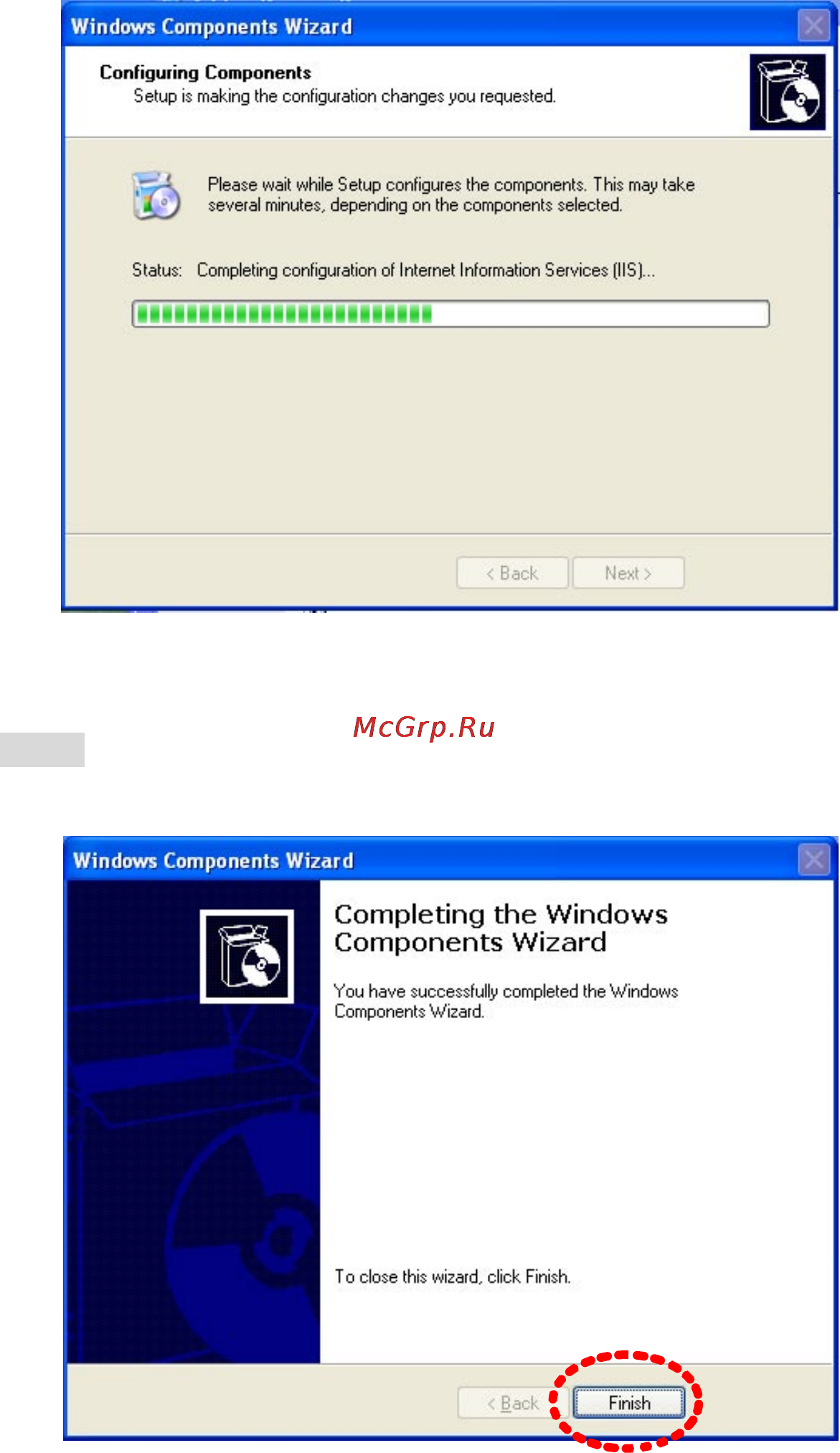

The program will start installing the UPnP automatically. You will see the below pop-up screen,
please wait while Setup configures the components.
Please click “Finish” to complete the UPnP installation
