21

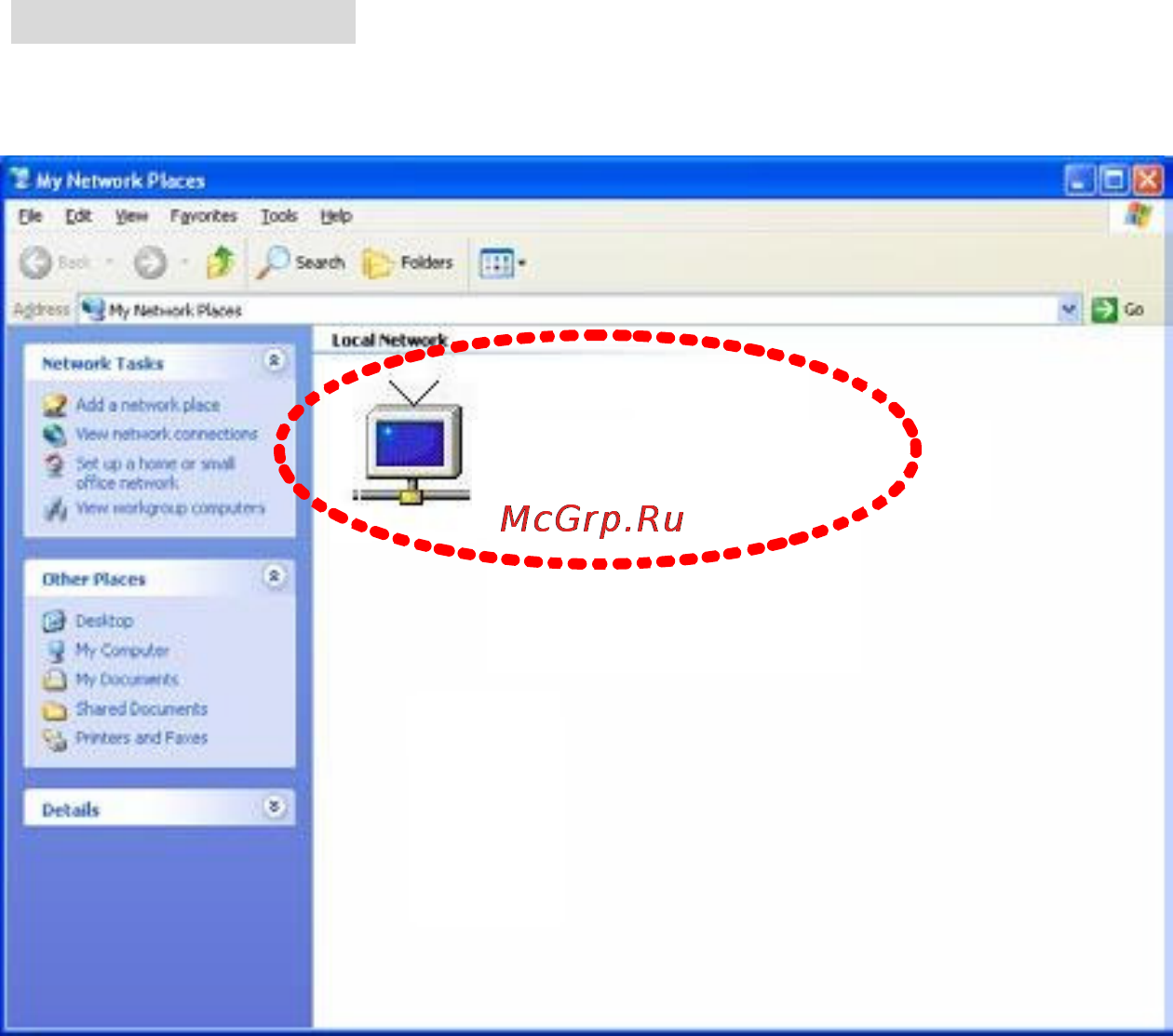

Double-click “My Network Places” on the desktop, the “My Network Places” will display on the
screen and double-click the UPnP icon with Internet camera to view your device in an internet
browser.
ICA-HM130
-
00304f1a2247
