)LHOG6HWWLQJ 6L(1%(
7HVW2SHUDWLRQ
$

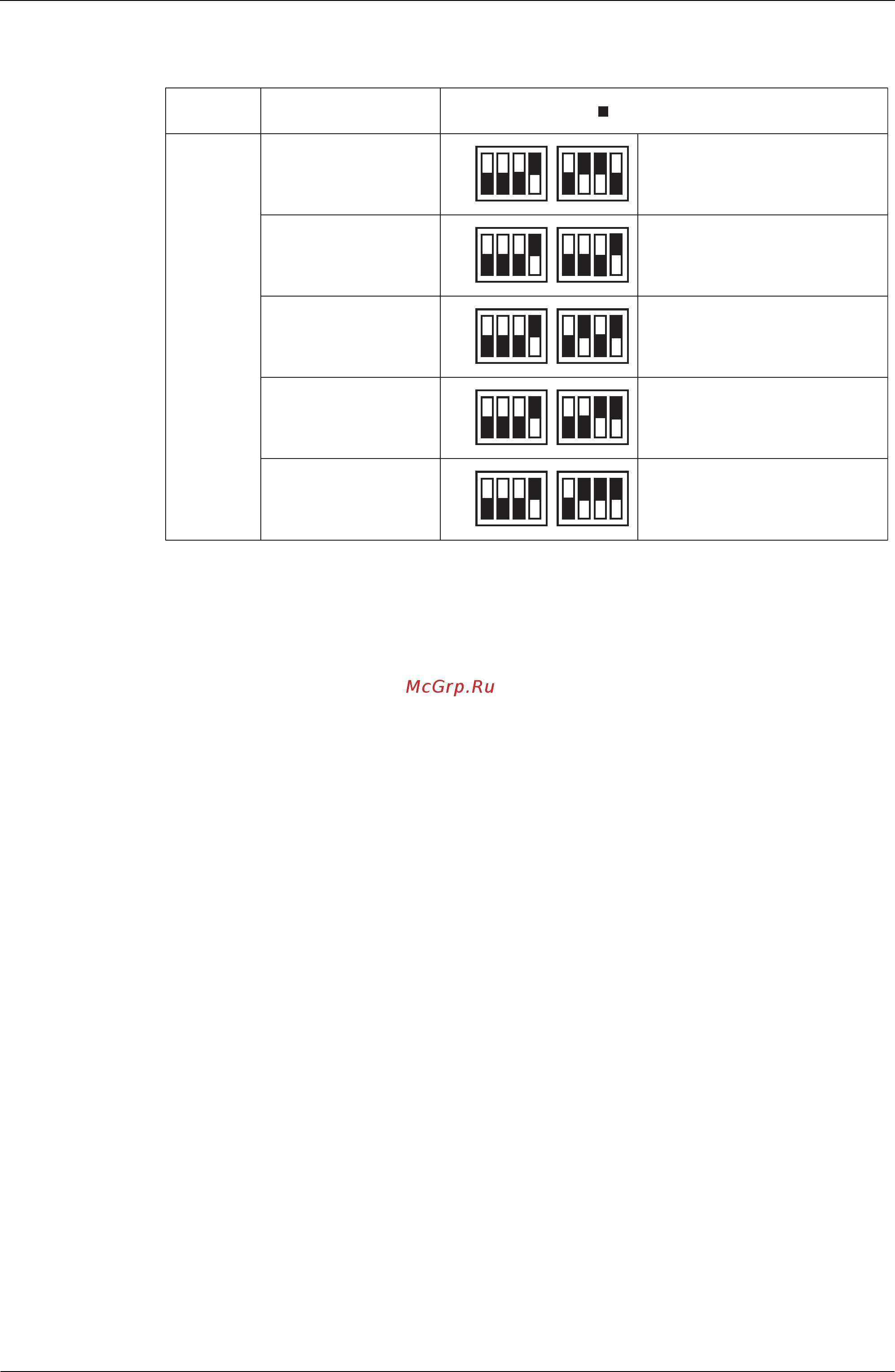

Setting method ( represents the position of switches)
123 1234
ON
OFF
4
DS1DS2
123 1234
ON
OFF
4
DS1DS2
123 1234
ON
OFF
4
DS1DS2
123 1234
ON
OFF
4
DS1DS2
Application model
HEAT RECOVERY(8HP)
REMQ8P8Y1B
HEAT RECOVERY(10HP)
REMQ10P8Y1B
HEAT RECOVERY(12HP)
REMQ12P8Y1B
HEAT RECOVERY(14HP)
REMQ14P8Y1B
HEAT RECOVERY(16HP)
REMQ16P8Y1B
Set DS1-4, DS2-2 and DS2-3 to ON.
Set DS1-4 and DS2-4 to ON.
Set DS1-4, DS2-2 and DS2-4 to ON.
Set DS1-4, DS2-3 and DS2-4 to ON.
Set DS1-4, DS2-2, DS2-3 and
DS2-4 to ON.
123 1234
ON
OFF
4
DS1DS2
Multiple Type
Allocation
For Europe
