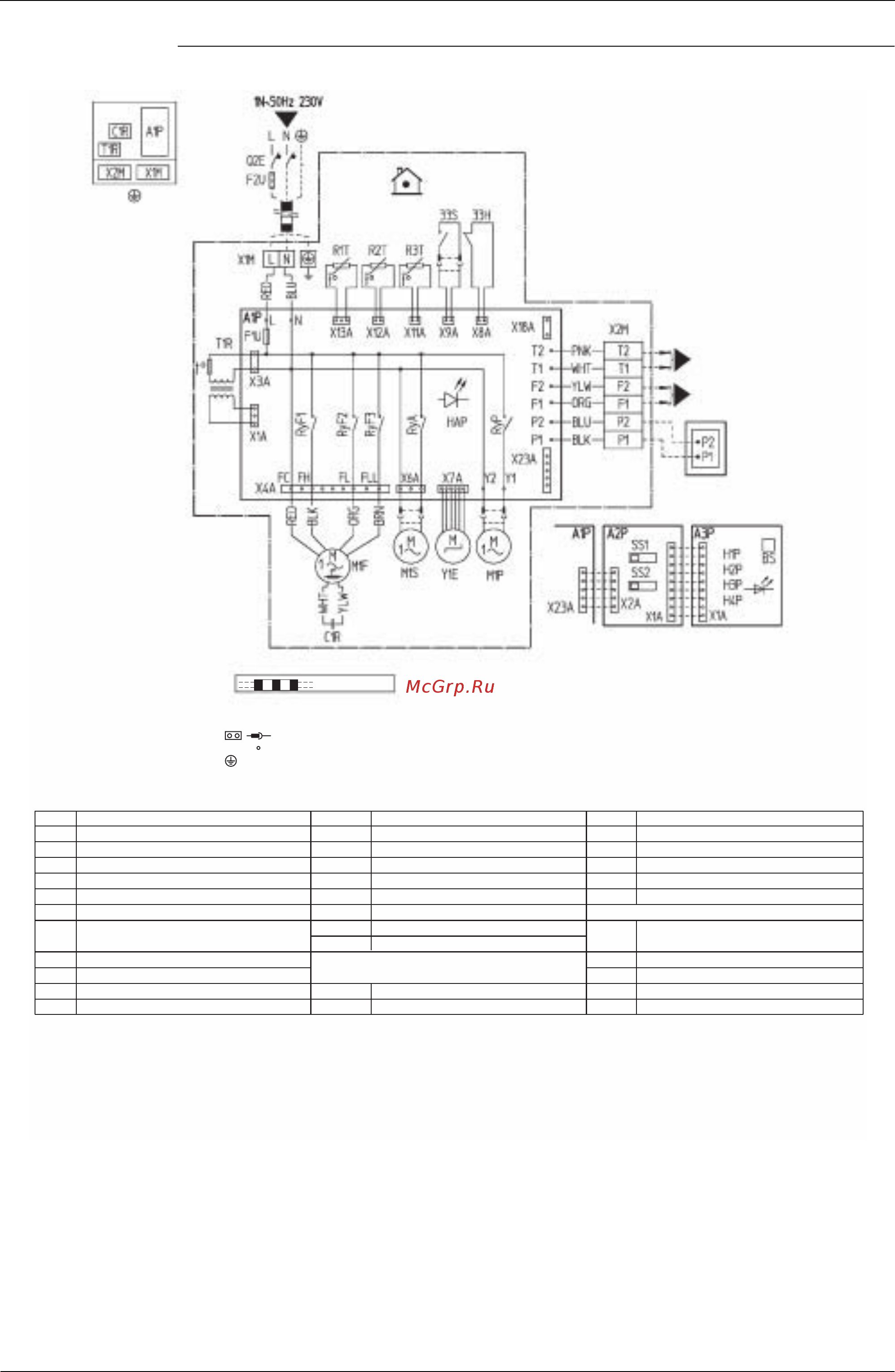

:LULQJ'LDJUDPVIRU5HIHUHQFH 6L(1%(
 $SSHQGL[
);&400009
20,25,32,63 class
(22,28,36,71 class)
indoor
Switch box
Input from outside
(note 3)
To central remote
control (note 1)
Wired remote
control
(Note 2)
Note 2 Receiver / display unit
Field wiring
L : Live
N : Neutral
: Connector
: Wire clamp
: Protective earth
(screw)
Colors
BLK : BLACK
BLU : BLUE
BRN : BROWN
ORG : ORANGE
PNK : PINK
RED : RED
WHT : WHITE
YLW : YELLOW
NOTES
1. When using a central remote control, see manual for connection to the unit.
2. X23A is connected when the infrared remote control kit is used.
3. When connecting the input wires from outside, “forced off” or “on/off” control operation can be selected by the remote control.
For more details see installation manual.
4. Use copper conductors only.
2TW23776-1D
33H Float switch
33S Limit switch (swing flap)
A1P Printed circuit board
C1R Capacitor (M1F)
F1T Thermal fuse (152°C) (M1F embedded)
F1U Fuse (250V, 5A)
F2U Field fuse
HAP Light emitting diode
(service monitor-green)
M1F Motor (indoor fan)
M1S Motor (swing flap)
M1P Motor (drain pump)
R1T Thermistor (air)
R2T, R3T Thermistor (coil)
Q2E Earth leak detector
RyA Magnetic relay (M1S)
RyF1-3 Magnetic relay (M1F)
RyP Magnetic relay (M1P)
T1R Transformer (220-240V/22V)
X1M Terminal strip (power)
X2M Terminal
strip (control)
Y1E Electronic expansion valve
Receiver / display unit (attached
to infrared remote control
A2P, A3P Printed circuit board
BS On/off button
H1P Light emitting diode (on-red)
H2P Light emitting diode (timer-green)
H3P Light emitting diode (filter sign-red)
H4P Light emitting diode (defrost-orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Connector for optional parts
X18A Connector (wiring, adapter for
electrical appendices)
X23A Connector (infrared remote control)
