6L(1%( :LULQJ'LDJUDPVIRU5HIHUHQFH
$SSHQGL[ 
%(940$0$0$9(
3D044901B
Fuse ( ,10A, 250V)
Bev unit
Printed circuit board assy
Thermistor (Gas)
Selector switch (M/S)
Terminal strip (power)
Terminal strip (Transmission)
Electronic expansion valve
Noise filter
A1P
A2P
F1U
HAP
R3T
SS1
X1M
X2M
Y1E
Z1C·Z2C
Z3C·Z4F
control box
Power supply
220-240V 220V
50Hz 60Hz
To indoor unit
To outdoor unit
: Terminal
: Field wiring
: Connector
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Note:

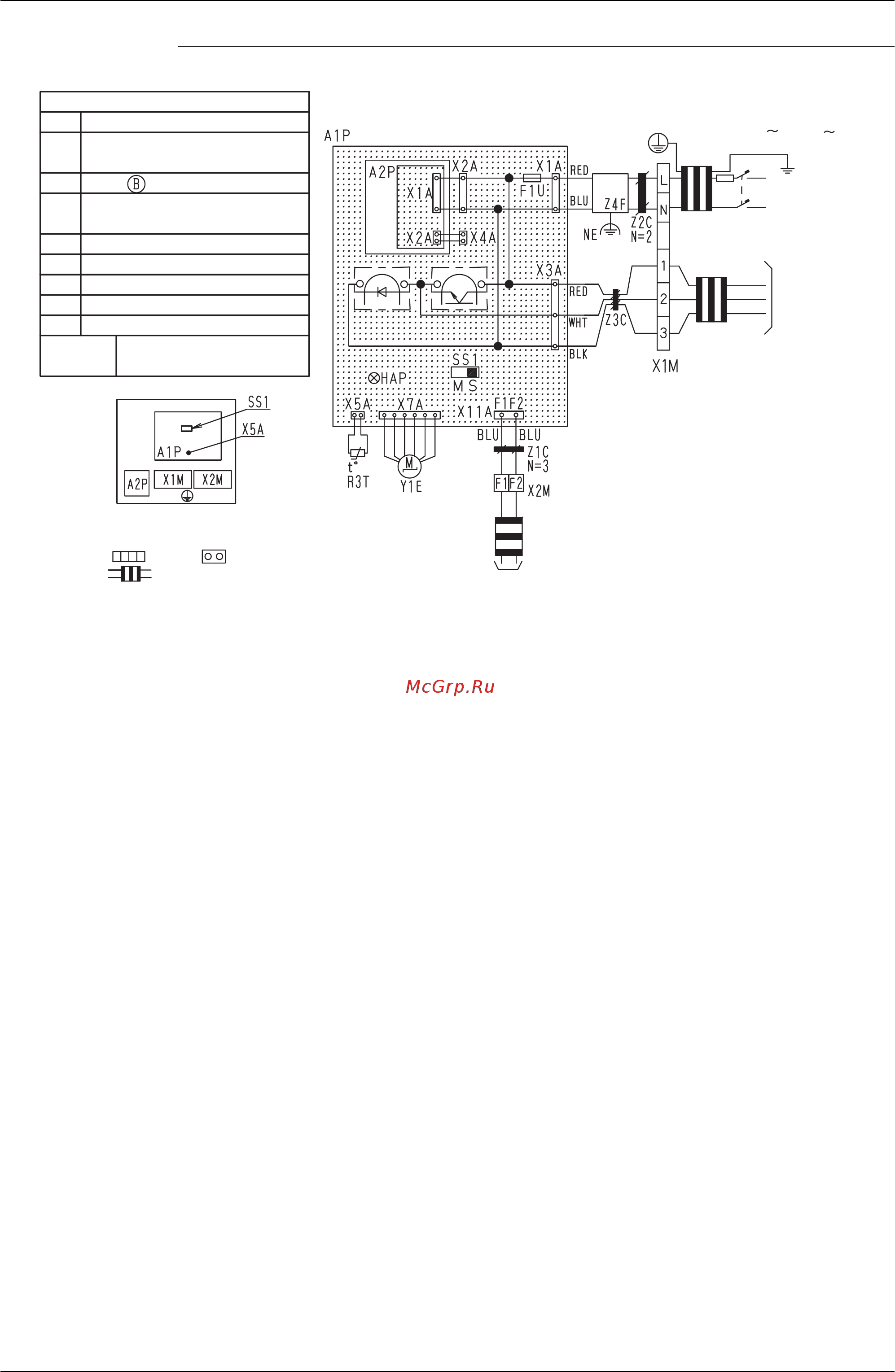

This wiring diagram only shows the bev unit.see the wiring diagrams and installation
manuals for the wiringand settings for the indoor, outdoor and BS units.
See the indoor unit’s wiring diagram when installing optional parts for the indoor unit.
Only one indoor unit may be connected to the bev unit
See the indoor unit’s wiring diagram for when connecting the remote control.
Always use the sky air connection adapter for the unit when using a central control
unit. refer to the manual attached the unit when connecting.
Cool/heat changeover of indoor units connected to bev unit cannot be carried out
unlessthey are connected to BS unit.In case of a system with bev unit only, cool/heat
selector is required.
Set the SS1 to “M” only for the bev unit connected to the indoor unit which is to
havecool/heat switching capability, when connecting the BS unit.the “M/S” on the
SS1 stands for “Main/sub”.this is set to “S” when shipped from the factory.
Connected the attached thermistor to the R3T.
Symbols shows as follows.
(BLU: Blue - RED:Red - WHT: White - BLK: Black
Light emitting diode (Service
monitor-green)
Power supply printed circuit board
assy (220-240V/16V)
