6L(1%( 7URXEOHVKRRWLQJ23&HQWUDO5HPRWH&RQWURO
7URXEOHVKRRWLQJ
7URXEOHVKRRWLQJ

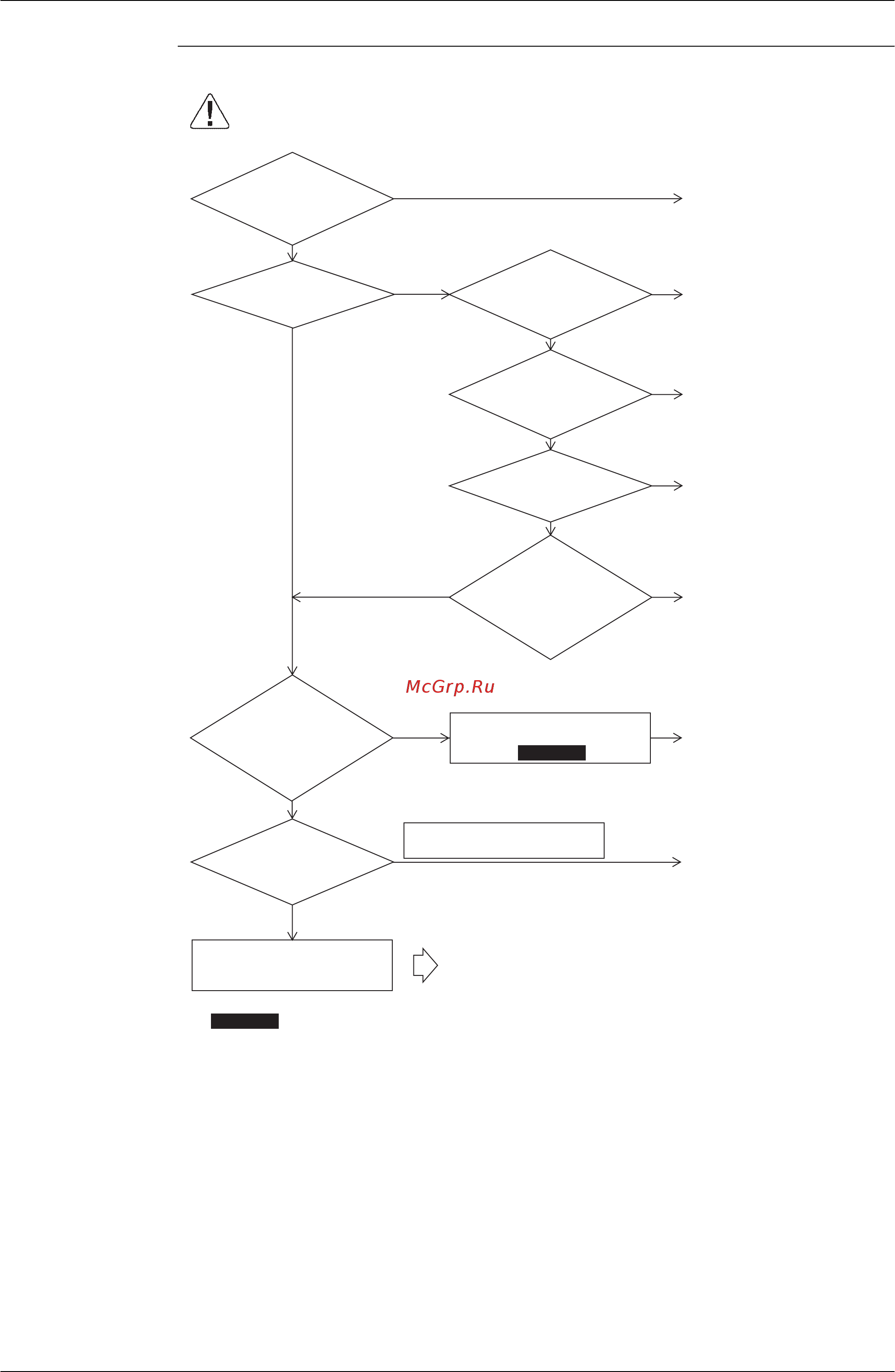

Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
NO
Not available for combined
use with the remote control
adapter. Dismount the remote
control adapter, and then
reset power supplies of every
central equipment.
Not available for combined
use of the schedule timer and
the Interface for BaCnet
®
.
Dismount either of them, and
then reset power supplies of
every central equipment.
Not available for combined
use of the schedule timer and
the DMS-IF. Dismount either
of them, and then reset
power supplies of every
central equipment.
Not available for combined
use of the schedule timer and
the parallel interface.
Dismount either of them, and
then reset power supplies of
every central equ
ipment.
Dismount the Independent/
Combined use connector
(CN1/X1A) of the schedule
timer, and then reset power
supplies of every central
equipment.
Integrate every central
equipment to which the
master unit central connector
is connected, and then reset
power supplies of every
central equipment.
Disconnect the master unit
central setting connector and
connect this connector to
different central equipment,
and then reset power
supplies of every central
equipment. Central
equ
ipment, to which the
master unit central setting
connector is connected at the
time when the malfunction
code is cleared, is faulty.
Replace this equipment.
YES
YES
YES
NO
YES
Has the
remote control
adapter (KRP2A series)
been connected?
Has the
schedule timer been
connected?
Are there
two or more units
of central equipment with
master unit setting
connectors
(CN1/X1A)
connected?
Reset the
power supplies of every
central equipment.
Has the
Interface for BaCnet
®
been connected?
NO
NO
YES
Has the
DMF-IF been
connected?
NO
YES
Has the
parallel interface been
connected?
NO
YES
Has the
Independent/
Combined use
connector(CN1/X1A) of the
schedule timer been
connected?
Central equipment: Normal
The List of Setting of Master
Unit Central Setting Connector
Check 8
The MA malfunction code is
displayed again.
It is supposed that the
malfunction results from
external factors (e.g. noises)
from other equipment.
Check 8
∗1
∗1
The "MA" error code has
been cleared.
: Referring to the information on P353.
