6L(1%( 7URXEOHVKRRWLQJ238QLILHG212))&RQWUROOHU
7URXEOHVKRRWLQJ
NO
NO
Cannot be used in
combination with a wiring
adapter for electrical
appendices. Remove the
wiring adapter for electrical
appendices and reset the
power supply for all optional
controllers for centralized
control simultaneously.
Schedule timer and parallel
interface cannot be used in
combination. Disconnect
either the schedule timer or
parallel interface a
nd reset the
power supply for all optional
controllers for centralized
control simultaneously.
Disconnect the schedule
timer's individual / combined
connector and reset the power
supply for all optional
controllers for centralized
control simultaneously.
Arrange so that the connector
for setting master controller is
connected to one controller for
centralized control and reset
the power supply for all
optional controllers for
centralized control
simult
aneously.
Disconnect the connector for
setting master controller from
the master controller, connect
to another optional controller
for centralized control and
simultaneously reset all
optional controllers for
centralized control again. The
controller connected by the
connector for setting master
controller when the
malfunction is cleared is
defective and must be
replaced.
Reset the power supply for
all optional controllers for
centralized control
simultaneously.
YE
S
YES
YES

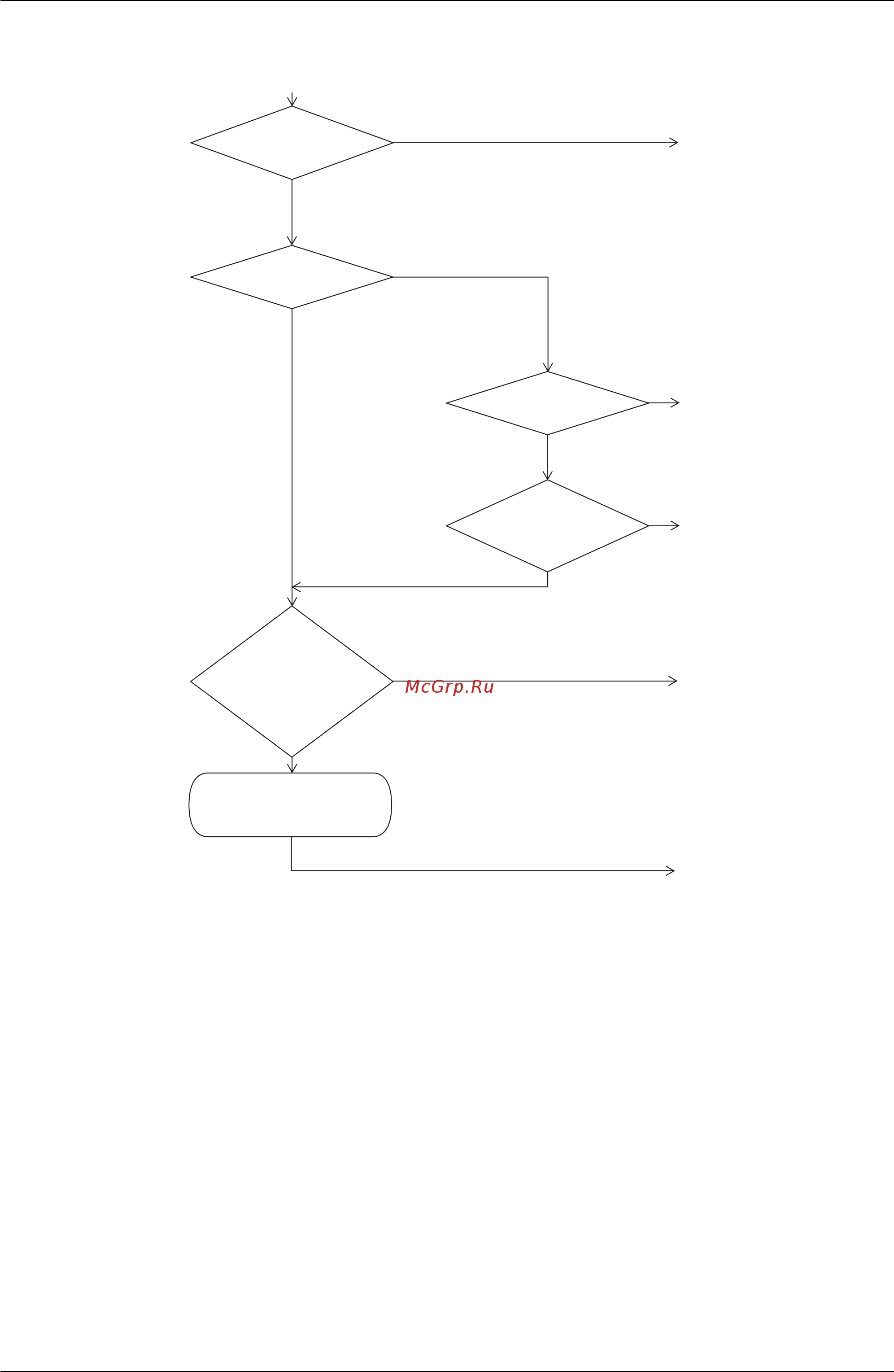

Is
the wiring
adapter for electrical
appendices connected?
Is a
schedule timer
connected?
Are
there two or
more optional
controllers for
centralized control connected
with the connector for
setting master
controller?
YES
Is a
parallel interface
connected?
NO
YES
Is
the
schedule timer's
individual/combined
connector
connected?
NO
NO
If the malfunction is still not cleared:
A
(V2843)
