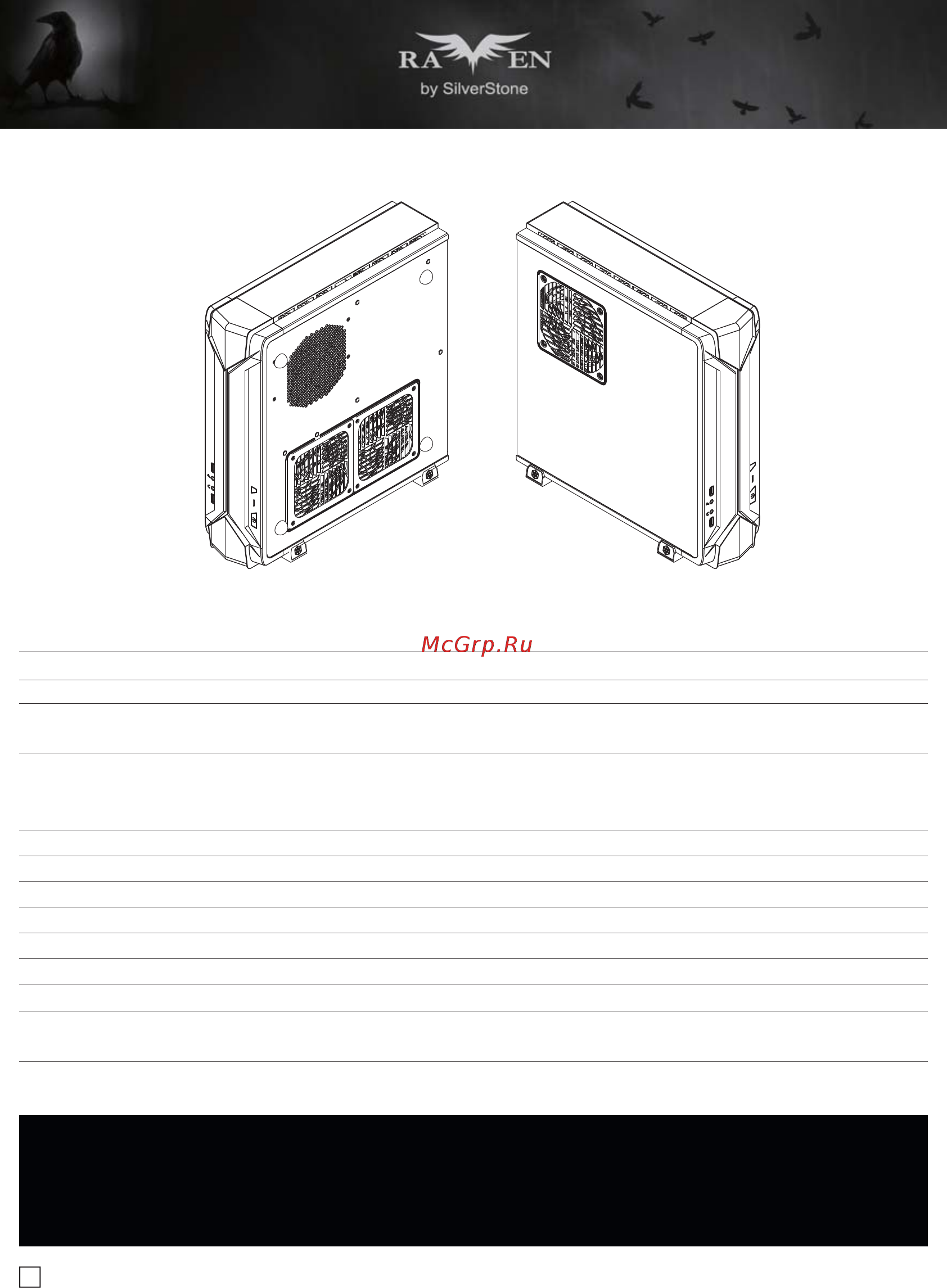

SilverStone RVZ03 [4/35] Redefine expectations
![SilverStone RVZ03 [4/35] Redefine expectations](/views2/1714280/page4/bg4.png)
2
Specifications
Model No.
Material
Motherboard
Drive Bay
Cooling System
Expansion Slot
Front I/O Port
Power Supply
Expansion Card
Limitation of CPU cooler
Limitation of PSU
Net Weight
Dimension
Extra
SST-RVZ03B (black), SST-RVZ03W (white)
Reinforced plastic outer shell, steel body
Mini-DTX, Mini-ITX
External
Internal
Top
Bottom
2
USB 3.0 x 2, Audio x 1, MIC x 1
Optional PS2 (ATX)
Compatible up to 13" (330mm) long, width restriction-5.88" (149mm)
83mm
150mm**
4.05 kg
382mm (W) x 105mm (H) x 364mm (D), 14.6 Liters
15.04" (W) x 4.13" (H) x 14.33" (D), 14.6 Liters
Support Kensington lock
PCI Express riser card set x 1
--
2.5" x 4*
1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan slot
Redefine expectations
* 2.5" drive on center bracket may be difficult or impossible to install due to power supply cable interference, we recommend using 140mm deep or
shorter modular power supply with flat cables.
** Maximum length for power supply is 150mm but we recommend 140mm deep power supply due to varying connector locations and the unique structure
of RVZ03.Due to the use of internal power cord extension, we recommend not to exceed 800W when powering off a 110V outlet (no limit for 220V).
