SilverStone RVZ03 [7/35] Lnstallation guide
![SilverStone RVZ03 [7/35] Lnstallation guide](/views2/1714280/page7/bg7.png)
5
lnstallation Guide
Before you begin, please make sure that you
1. Have all components collected.
2. Check that all components do not have compatibility problems with each other or with the case.
3. If possible, assemble the components outside the case first to make sure they are working.
4. Keep the motherboard manual ready for reference during installation.
5. Prepare a Philips screwdriver.
6. Be careful not to strike on glass side panel when removing it from the case.

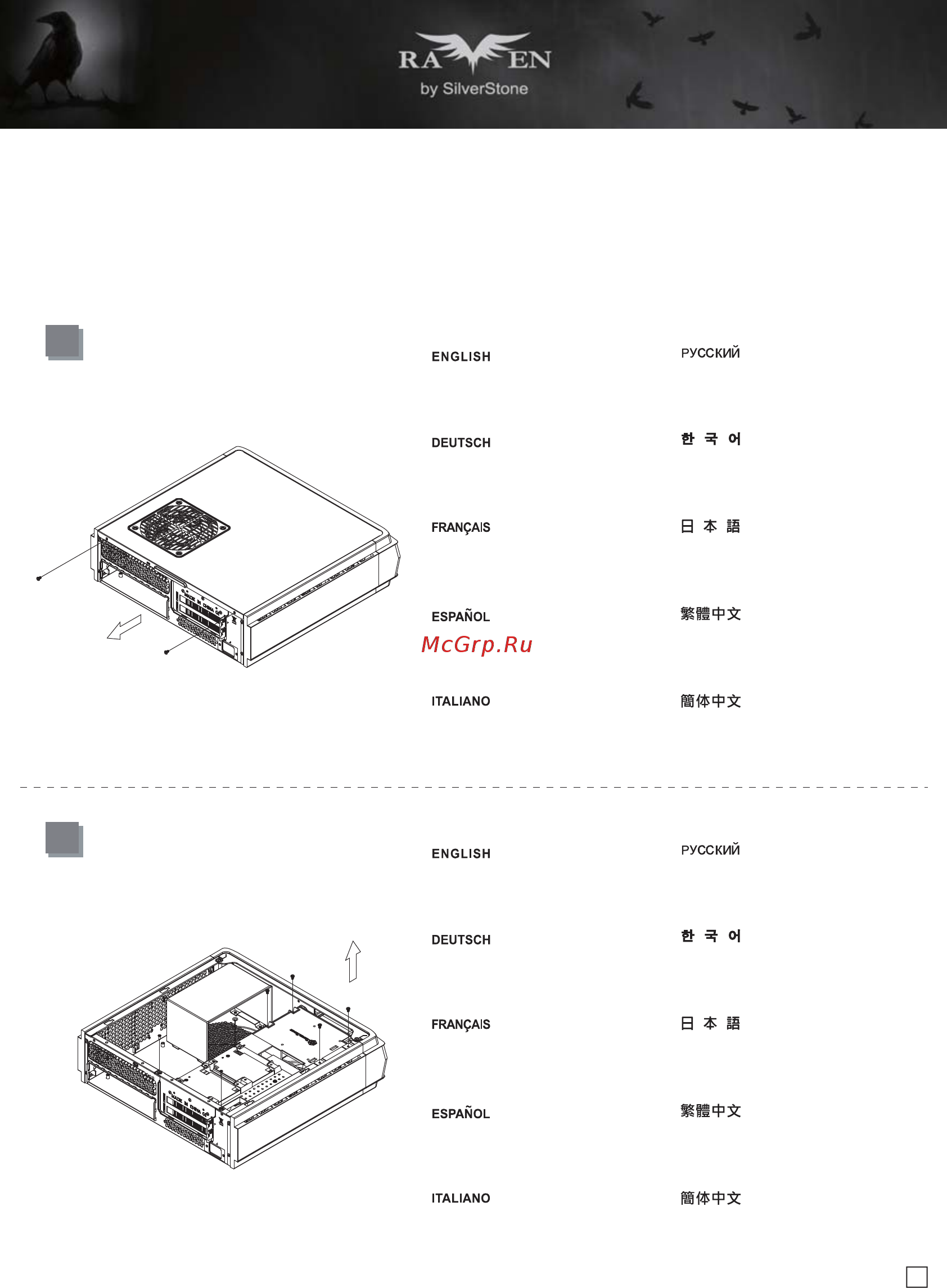

1
Unscrew the screws from the rear of the
chassis then remove the top cover
Lösen Sie die beiden Schrauben von der
Rückseite des Gehäuses, entfernen Sie
dann die obere Abdeckung
Dévissez les deux vis à l'arrière du châssis
puis enlevez le couvercle supérieur
Afloje dos tornillos de la parte posterior
del chasis para retirar la cubierta superior
Allentare le due viti sul lato posteriore
del telaio e poi rimuovere il coperchio
superiore
Ослабьте два винта на задней панели
корпуса и снимите верхнюю крышку
섀시 후면에 있는 두 개의 나사를푼 다음
상단 커버를 분리합니다
鬆開上蓋螺絲,取下上蓋
ケース後部のネジ2本をゆるめてからト
ップカバーを取り外します
松开上盖螺丝,取下上盖
2
Unscrew the screws from the graphics
card support bracket then remove it
Lösen Sie die Schrauben von der
Grafikkartenhalterung und entfernen
sie anschließend
Dévissez les vis du support de la carte
graphique puis enlevez-la
Desenrosque los tornillos del bracket de
soporte de la tarjeta gráfica y luego
retírela
Svitare le viti dalla staffa di support della
scheda video quindi rimuoverla
Отверните винты кронштейна крепления
графической карты и снимите его
그래픽 카드 지지 브래킷에서 나사를 풀어
브래킷을 분리합니다
鬆開顯示卡架的螺絲,取下顯示卡架
グラフィックスカード・サポートブラケ
ットのネジを外して取り外します
松开显示卡架的螺丝,取下显卡架
