SiEN34-705 Appendix
General Information 151
Connection of gas and liquid pipes
2-1 Cutting the field supply gas pipe 1 to 4
• Cut the pipes according to Table 3
• The L dimension of the gas pipe 1 to 4 in Table 3 show those
when the field supply elbows have B dimension in Table 2
shown in Procedure for Front Connection, 2 Connection of
gas and liquid pipes.
If the B dimensions are not same with Table 2, see Table 2
and 3, and adjust them accordingly.
CAUTION
2-2 Connection of pipes

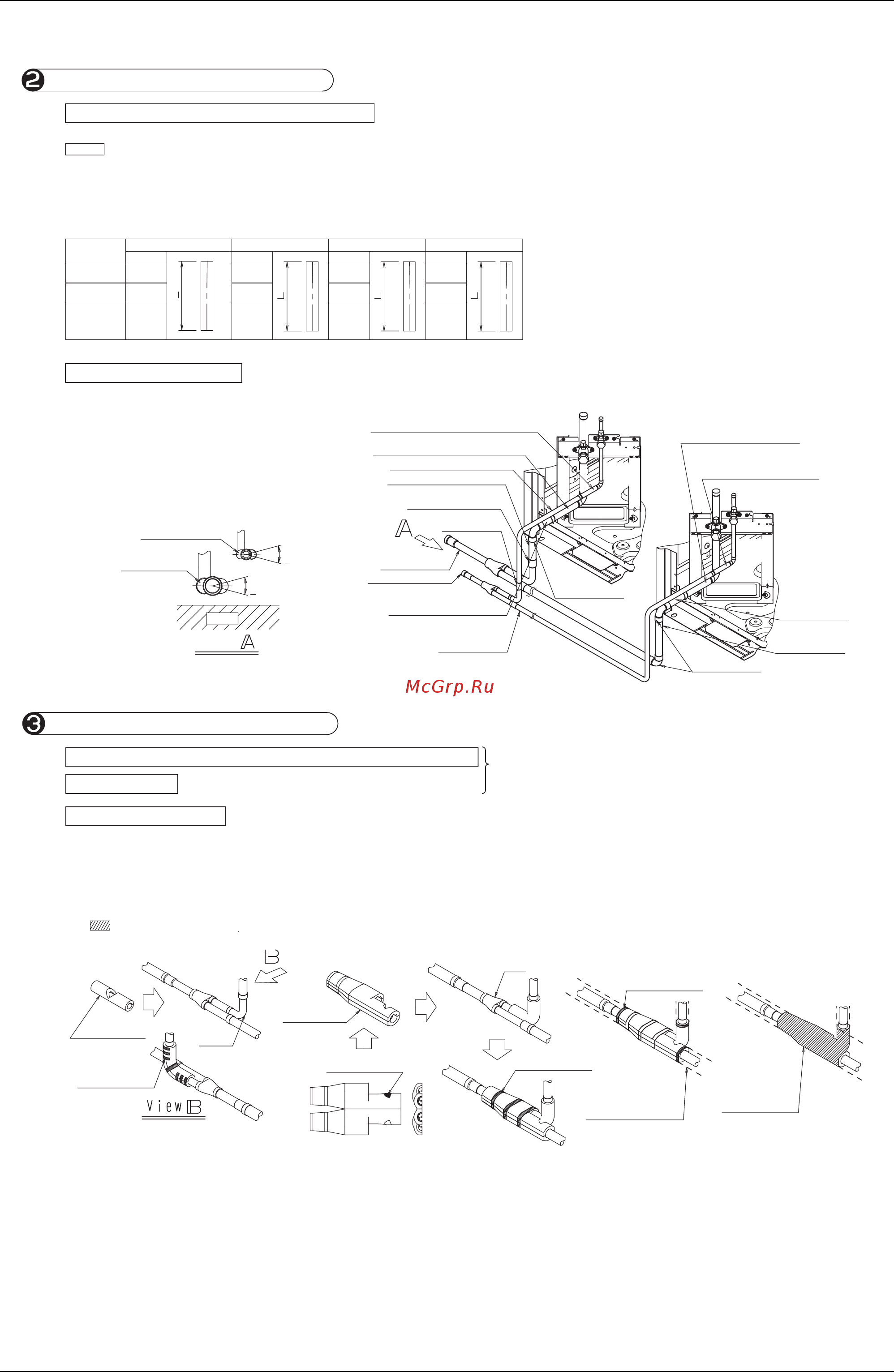

• Connect the gas and liquid pipes as shown in the
figure at the right.
(When connecting the pipes, first connect the gas-side
joint and the gas-side reducer(1), the liquid-side joint
and the liquid-side reducer (1)
• See the caution section in the installation manual
attached to the outdoor unit for brazing pipes and
connecting pipes with flare nuts.
• Install the joint in such a way that the attached face of
the caution label becomes horizontal (See the View A).
Liquid-side joint
Gas-side joint
Ground
Max.
+ 15°
Max.
+ 15°
View
(Attached to the outdoor unit)
Liquid-side accessory pipe assy (1)
(Attached to the outdoor unit)
Gas-side accessory pipe assy (1)
Liquid pipe (field supply)
Gas pipe 3 (field supply)
(As per Table 3)
Gas-side reducer (1)
Liquid-side
reducer (1)
Gas-side joint
Liquid-side joint
Liquid pipe
(field supply)
Gas pipe 1 (field supply)
(As per Table 1)
Elbow
(field supply)
Outdoor
unit A
(Attached to the outdoor unit)
Gas-side
accessory pipe assy (1)
(Attached to the outdoor unit)
Liquid-side
accessory pipe assy (1)
Outdoor
unit A
Elbow
(field supply)
Gas pipe 2
(field supply)
(As per Table 3)
Gas pipe 4
(field supply)
(As per Table 3)
The work after the kit is connected
Connection of piping between the outdoor unit and the indoor unit
Air tight test
Insulation of joints
(1) Fit the insulation to the reducer and temporarily keep it in place with tape.
(2) Cut insulating tube along the slit. (See the figure at the right.)
Fit the insulation to the joint and temporarily keep it in place with tape without leaving a
gap between the insulation mating faces.
(3) Seal the seam between the insulation and the field supply piping insulation with the
field supply tape.
(4) Wrap the tape around the insulation attached to the joint without leaving a gap.
( section shown in the figure at the right.)
Follow the instructions in the installation manual included with the outdoor unit,
when performing installation work.
Insulating tube
Tape (field supply)
reducer
Insulating tube
(1) (2) (3)
Cut along the slit
Joint
Tape (field supply)
Tape (field supply)
Tape (field supply)
Local pipe’s insulating
material
(4)
Ta ble 3
Gas pipe 1 (field supply) Gas pipe 2 (field supply) Gas pipe 3 (field supply) Gas pipe 4 (field supply)
Model type
L(mm L(mm) l(mm) L(mm)
8HP 130 165 59 237
10HP 100 135 83 225
12~18 HP 66 101 149 213
