Installation SiEN34-705
80 General Information

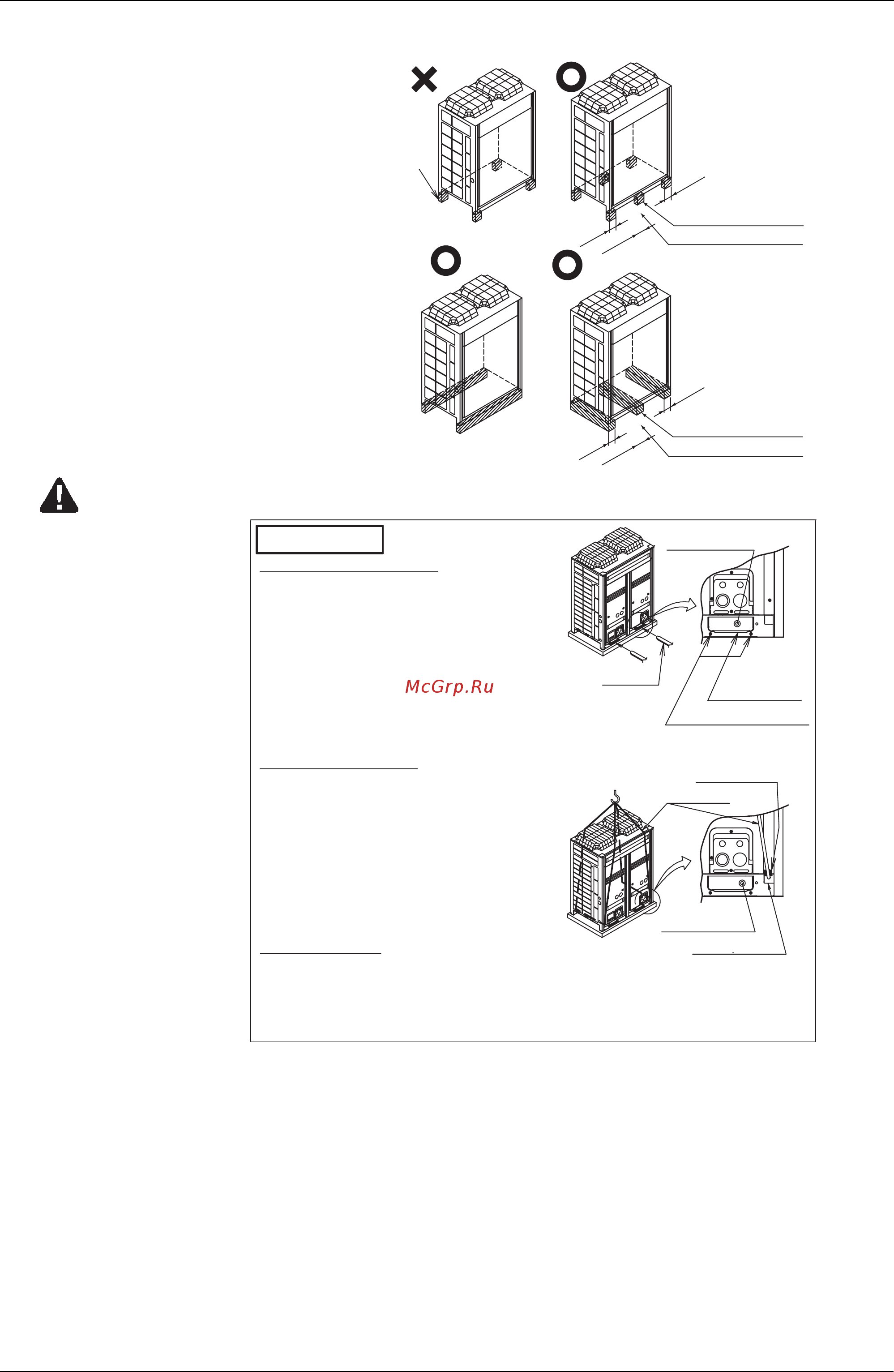

Do not Use Stands to Support The Corners
Caution Caution label
In the case of 8HP type or
more, the product cannot be
supported with four corners.
In the case of 5HP type, the
product can be supported
with four corners.
It is need in the case
of 8HP type or more
Center of the product
It is need in the case
of 8HP type or more
Center of the product
≥
100
≥
100
≥
100
≥
100
≥
100
≥
100
3P170269B
1. When carrying the unit
If a forklift is used for carrying the unit,
put the forklift arms into the large
openings on the bottom of the unit.
! In order not to damage the coating of
the bottom frame, put rags on the
forklift arms. (Otherwise rustproofing
effect will be lost)
After installation, remove the transport
claps attached to the large openings.
2. When lifting the unit
Put the belt s
lings into the small
openings.
(For 5HP unit, into the large openings)
Lift the unit with 2 belts of at least 8m
long.
Put cushioning plates or rags where the
slings contact the casing.
3. Electrical work
To prevent electric shock and fire accident, be sure to perform
grounding and install an earth leak breaker.
Electrical work must be carried out
by a licensed electrician in
accordance with local and national regulations.
To Installers
Opening (Large)
Forklift
Transport clasp screw
Cushion plate
Belt sling
Opening (Large)
Opening (Small)
Transport
clasp (Yellow)
