Appendix SiEN34-705
180 General Information
FXDQ

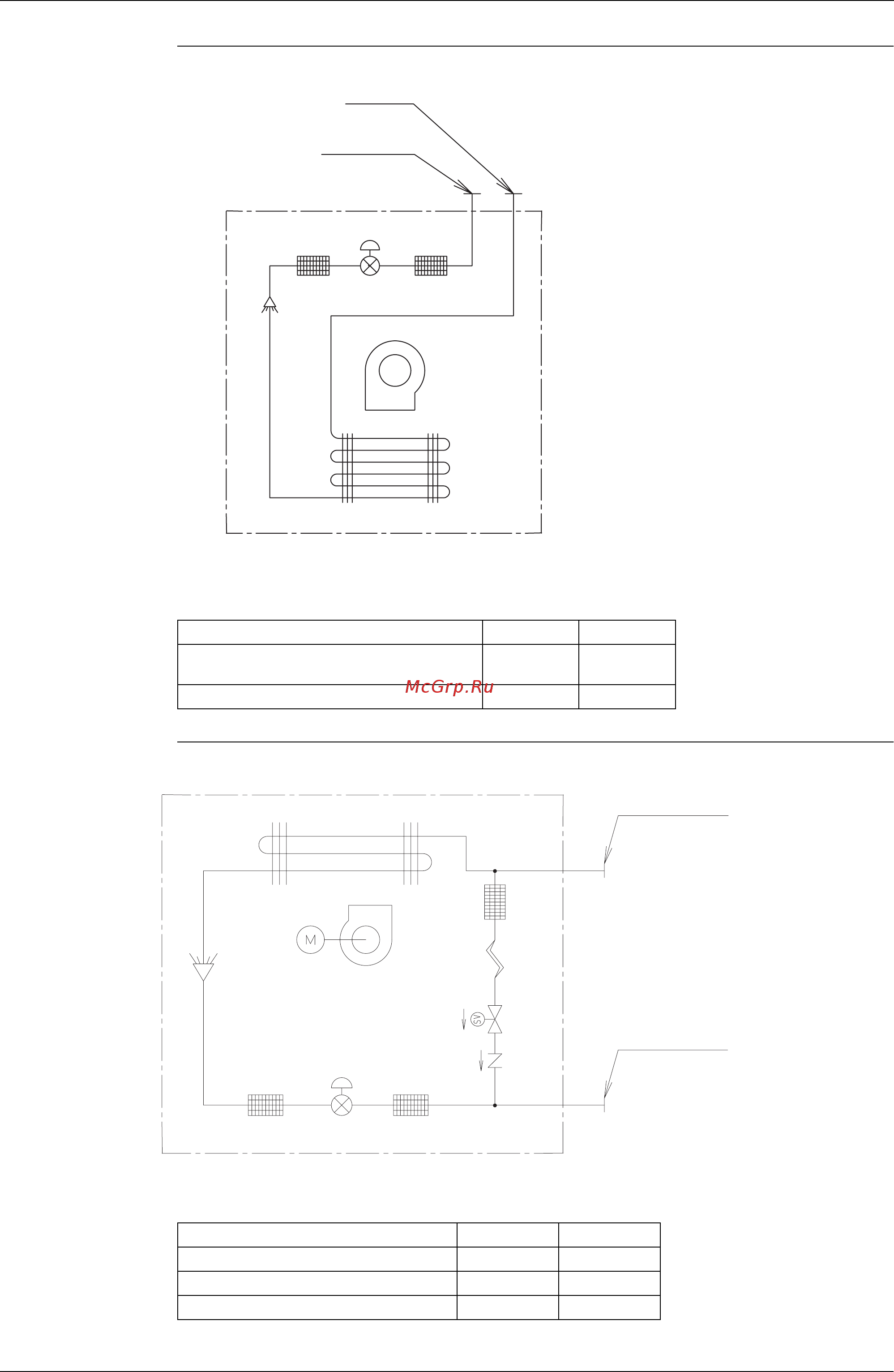

! Refrigerant pipe connection port diameters
FXMQ125MF / 200MF / 250MFV1
! Refrigerant pipe connection port diameters
4D043864J
Indoor heat exchanger
Gas side
Electronic
expansion valve
Fan
Liquid side
Filter
Filter
(mm)
Model Gas Liquid
FXDQ20N(A), P / 25N(A), P / 32N(A), P /
40N(A) / 50N(A)VE(T)
φ12.7 φ6.4
FXDQ63N(A)VE(T) φ15.9 φ9.5
4D018650B
Filter
Filter
Filter
Fan
Distributor
Heat exchanger
Gas pipe
connection port
Liquid pipe
connection port
Electronic
expansion valve
Capillary
tube
Solenoid
valve
Check
valve
(mm)
Model Gas Liquid
FXMQ125MFV1 φ15.9 φ9.5
FXMQ200MFV1 φ19.1 φ9.5
FXMQ250MFV1 φ22.2 φ9.5
