SiEN34-705 Heat Pump 60Hz (RXYQ5~54P)
Installation Manual 267

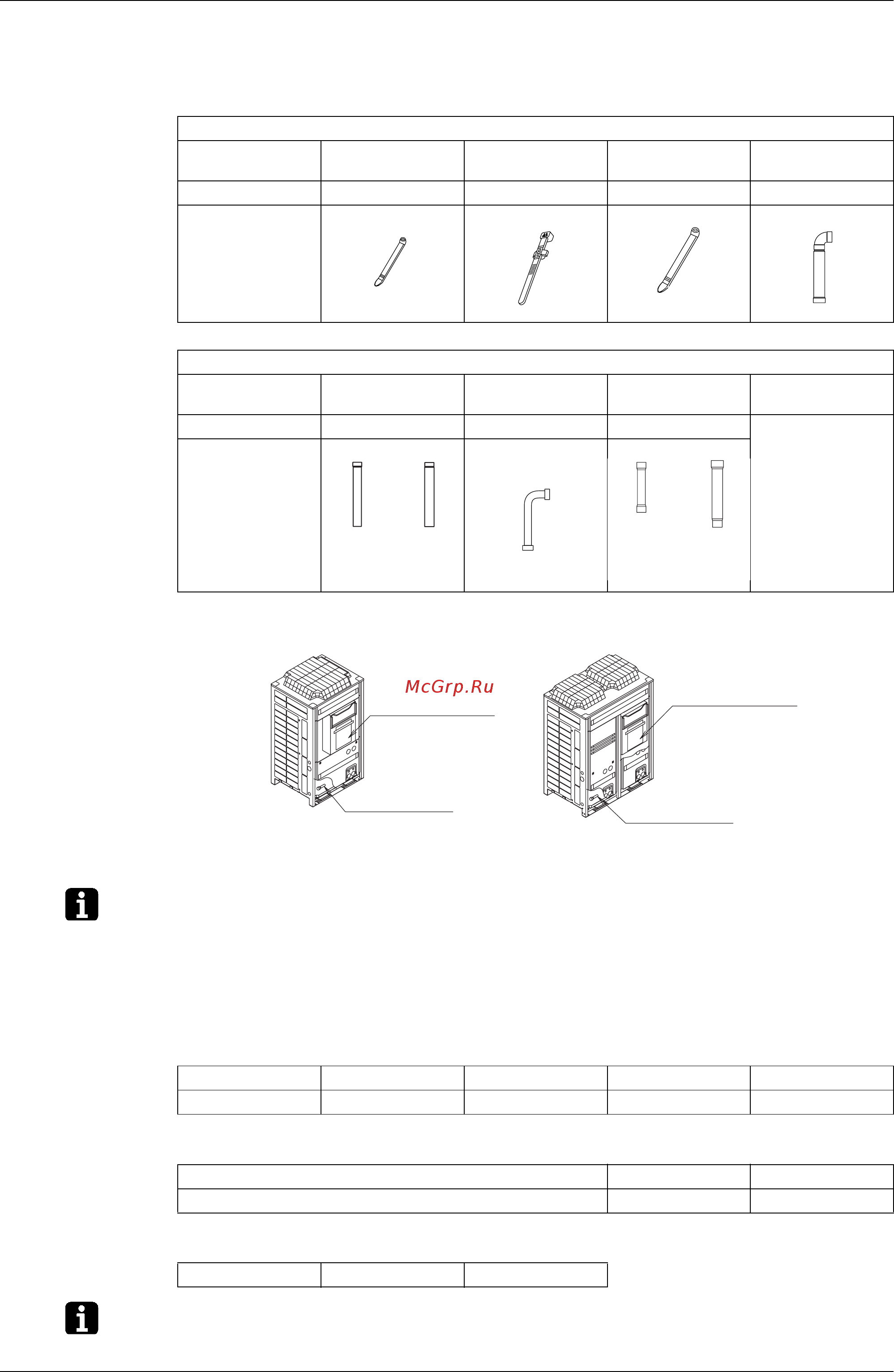

2.2.2 Standard Supplied Accessories
The following accessories are included. The storage location of the accessories is shown in
figure 1.
Note: Do not throw away any of the accessories until installation is complete.
2.2.3 Option Accessory
To install the outdoor units, the following optional parts are also required. To select an optimum
kit, refer to “2-6 Refrigerant Piping”.
! Refrigerant branching kit
! Outdoor unit multi connection piping kit
! Pipe size reducer
Note: Make sure that any separately purchased accessories are designed for use with R-410A.
Q5~Q18 type
Name Clamp (1) Clamp (2) Clamp (3)
Gas side
accessory pipe (1)
Quantity 9 pcs. 2 pcs. 1 pc. 1 pc.
Shape
Small
Large
Q5~Q18 type
Name
Gas side
accessory pipe (2)
Liquid side
accessory pipe (1)
Liquid side
accessory pipe (2)
Others
Quantity 1 pc. 1 pc. 1 pc. ! Operation
manual
! Installation
manual
! “REQUEST
FOR THE
INDICATION”
label
(Installation
records)
Shape
5-10
HP type
12-18
HP type
5-10,
14,16
HP type
12,18
HP type
figure 1
Operation manual,
Installation manual,
Clamps
Operation manual,
Installation manual,
Clamps
Accessory pipes
Accessory pipes
[Q5 · 8 · 10 type]
[Q12 · 14 · 16 · 18 type]
REFNET header KHRP26M22H KHRP26M33H KHRP26M72H KHRP26M73H
REFNET joint KHRP26A22T KHRP26A33T KHRP26A72T KHRP26A73T
Number of outdoor units connected 2 units 3 units
Kit name BHFP22P100 BHFP22P151
Kit name KHRP26M73TP KHRP26M73HP
