Physical Details
Front-mounted LEDs
IAD-200
IAD-200W

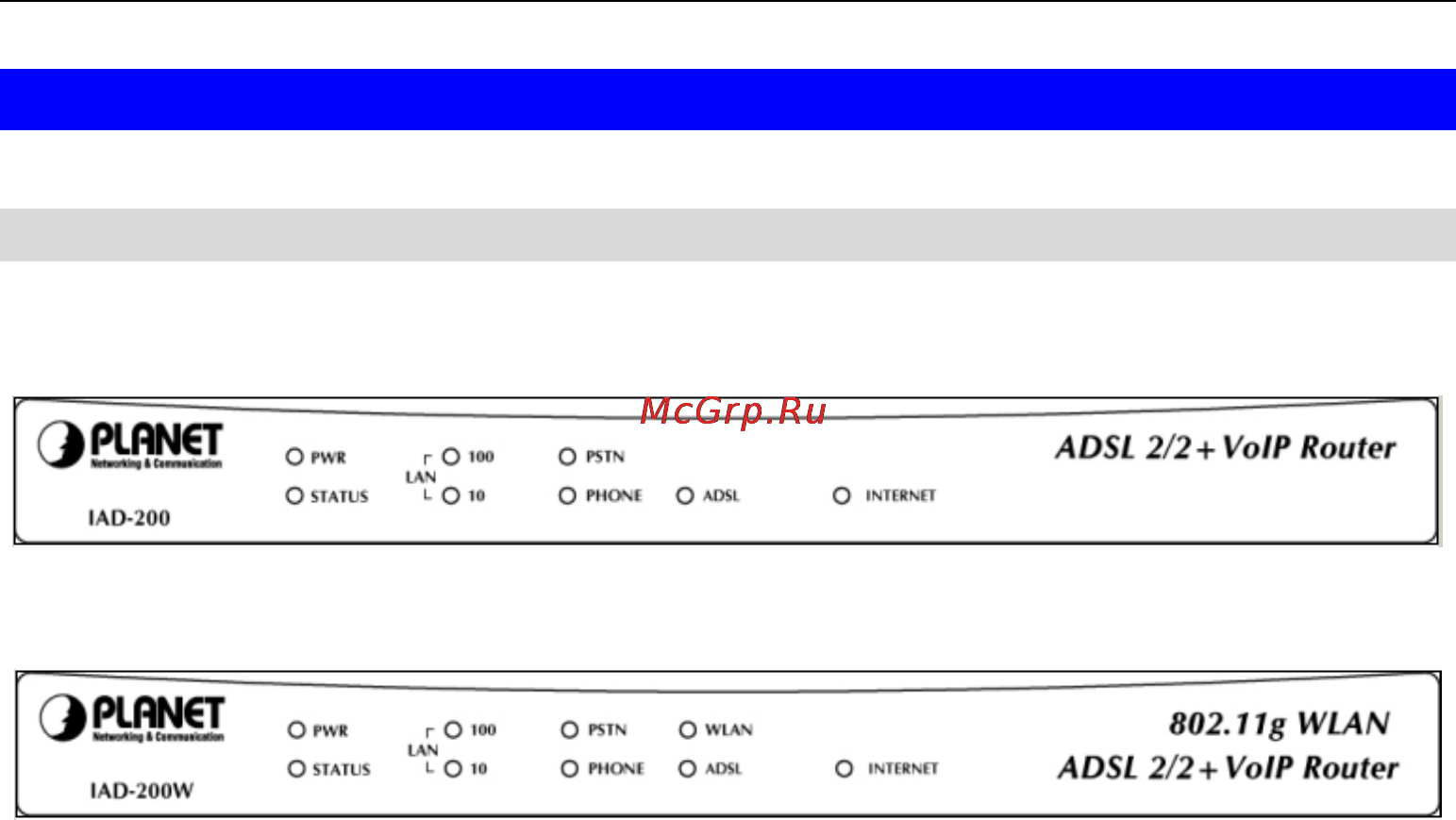

Figure 2: Front Panel
Power LED
(Green)
On - Power on.
Off - No power.
Status LED
(Yellow)
Off - Normal operation.
Blinking - This LED blinks during start up, and during a Firmware Up-
grade.
LAN
• 100BT - This will be ON if the LAN connection is using 100BaseT,
and Blinking if data is being transferred via the LAN port.
• 10BT - This will be ON if the LAN connection is using 10BaseT, and
Blinking if data is being transferred via the LAN port.
If neither LED is on, there is no active connection on the LAN port.
WLAN LED
(IAD-200W
only)
On - Wireless enabled.
Off - No Wireless connections currently exist.
Flashing - Data is being transmitted or received via the Wireless access
point. This includes "network traffic" as well as user data.
ADSL On - ADSL connection established. (This is a low-level connection, it
does not mean Internet access is available.)
Off - No ADSL connection currently exists.
Flashing - Data is being transmitted or received via the ADSL connection.
PSTN Off - Idle or not connected.
Flashing - PSTN line is in use.
Phone On - Connected to SIP Server.
Off - Idle or not connected.
Flashing (quickly) -Phone is in use.
5
