Checking TCP/IP Settings - Windows XP

1. Select Control Panel - Network Connection.

2. Right click the Local Area Connection and choose Properties. You should see a screen

like the following:

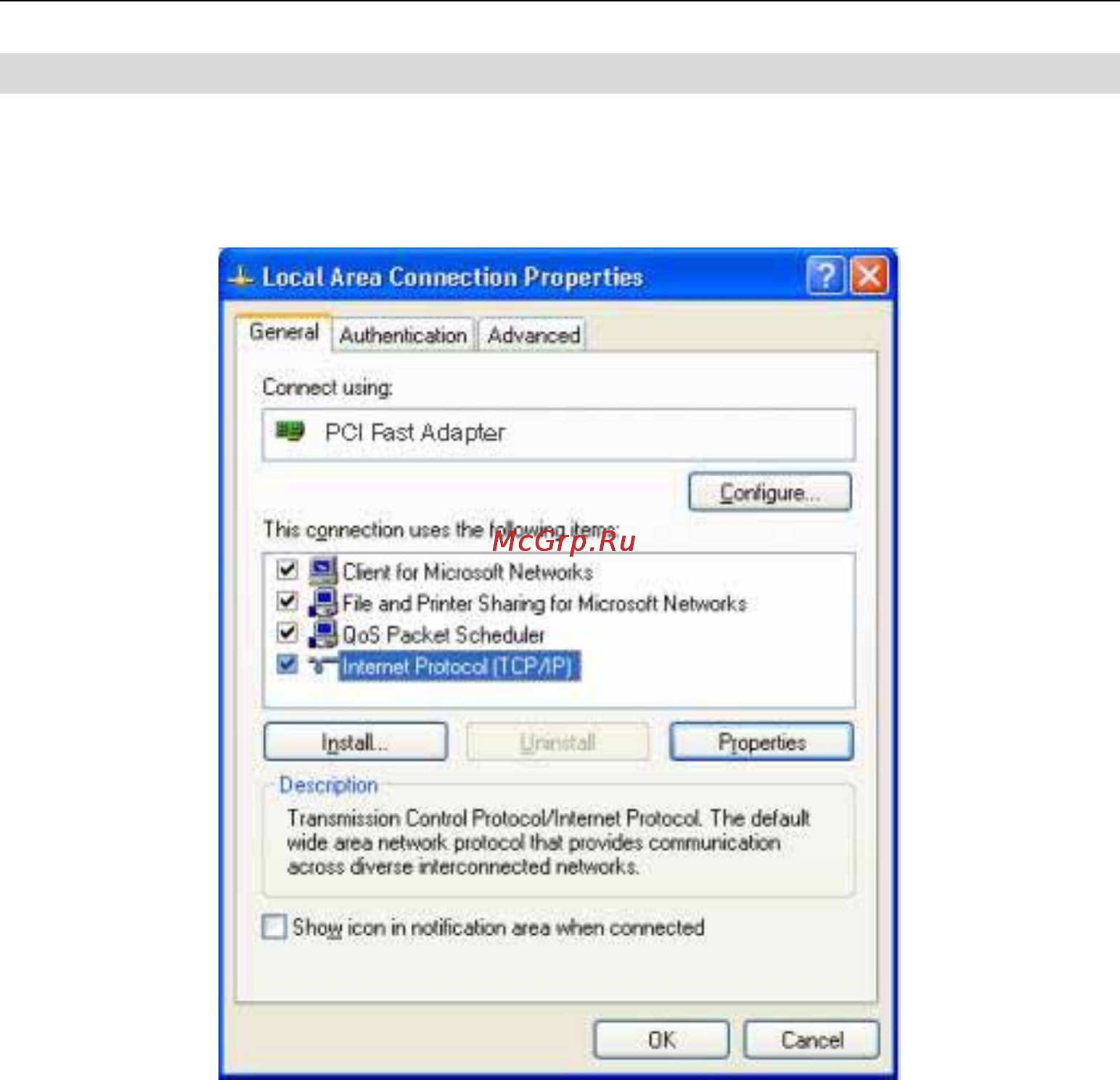

Figure 23: Network Configuration (Windows XP)

3. Select the TCP/IP protocol for your network card.

4. Click on the Properties button. You should then see a screen like the following.
