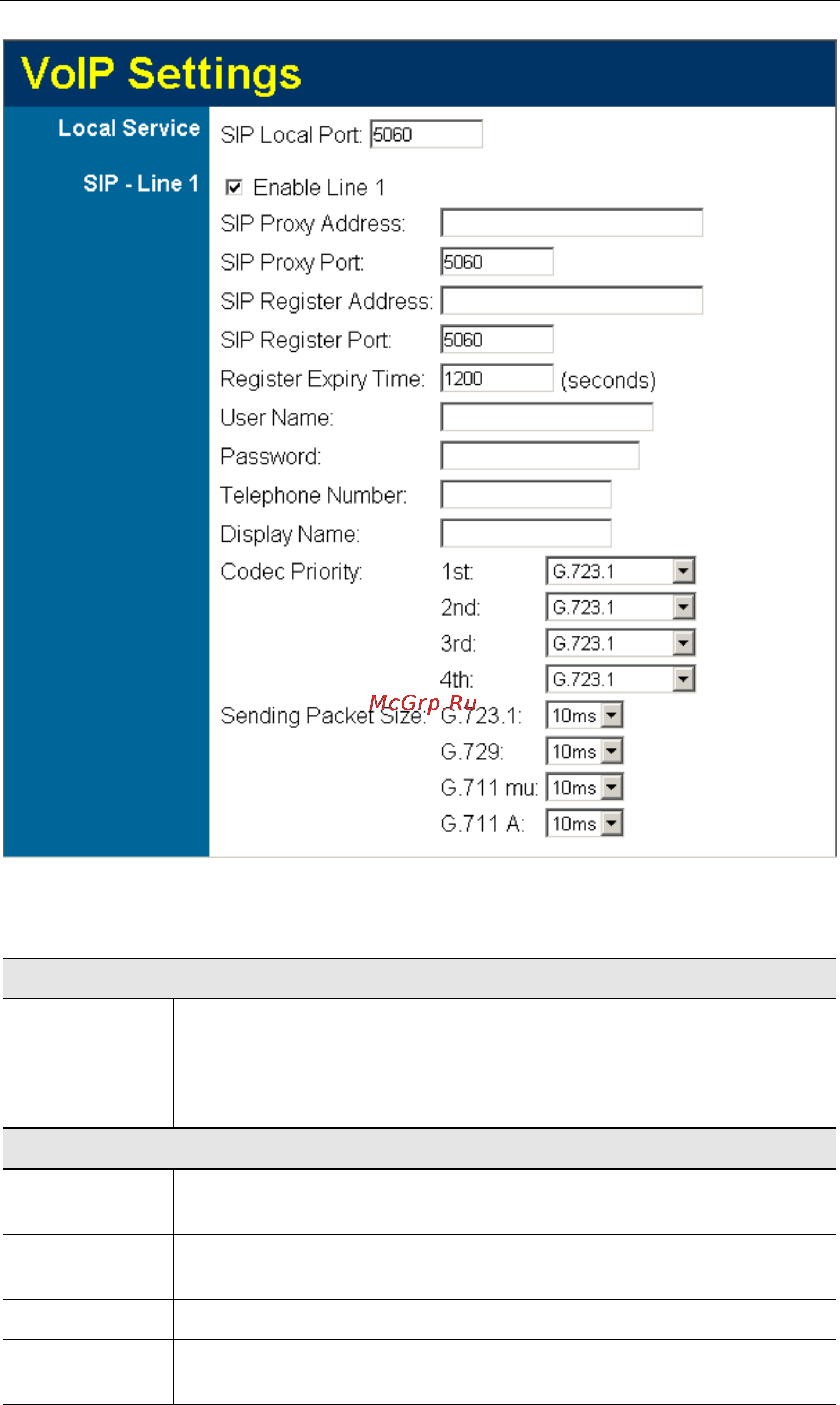

Figure 53: VoIP Settings
VoIP Settings
Local Service
SIP Local Port
This port is used for peer-to-peer (direct) connections to another device,
when no SIP server is used.
Normally, this should be left at the default value. Any other devices you
wish to connect to must use the same port number.
SIP - Line 1
Enable Line1
Check this if you wish to connect to a SIP Server. If enabled, you must
provide the following data.
SIP Proxy
address
Enter the address of the SIP Proxy (Server) used by your VoIP provider.
SIP Proxy port
Enter the port used for connections to the Server above.
SIP register
address
Enter the address of the SIP Register (Server) used by your VoIP pro-
vider. This may be the same server as the "Proxy" above.
