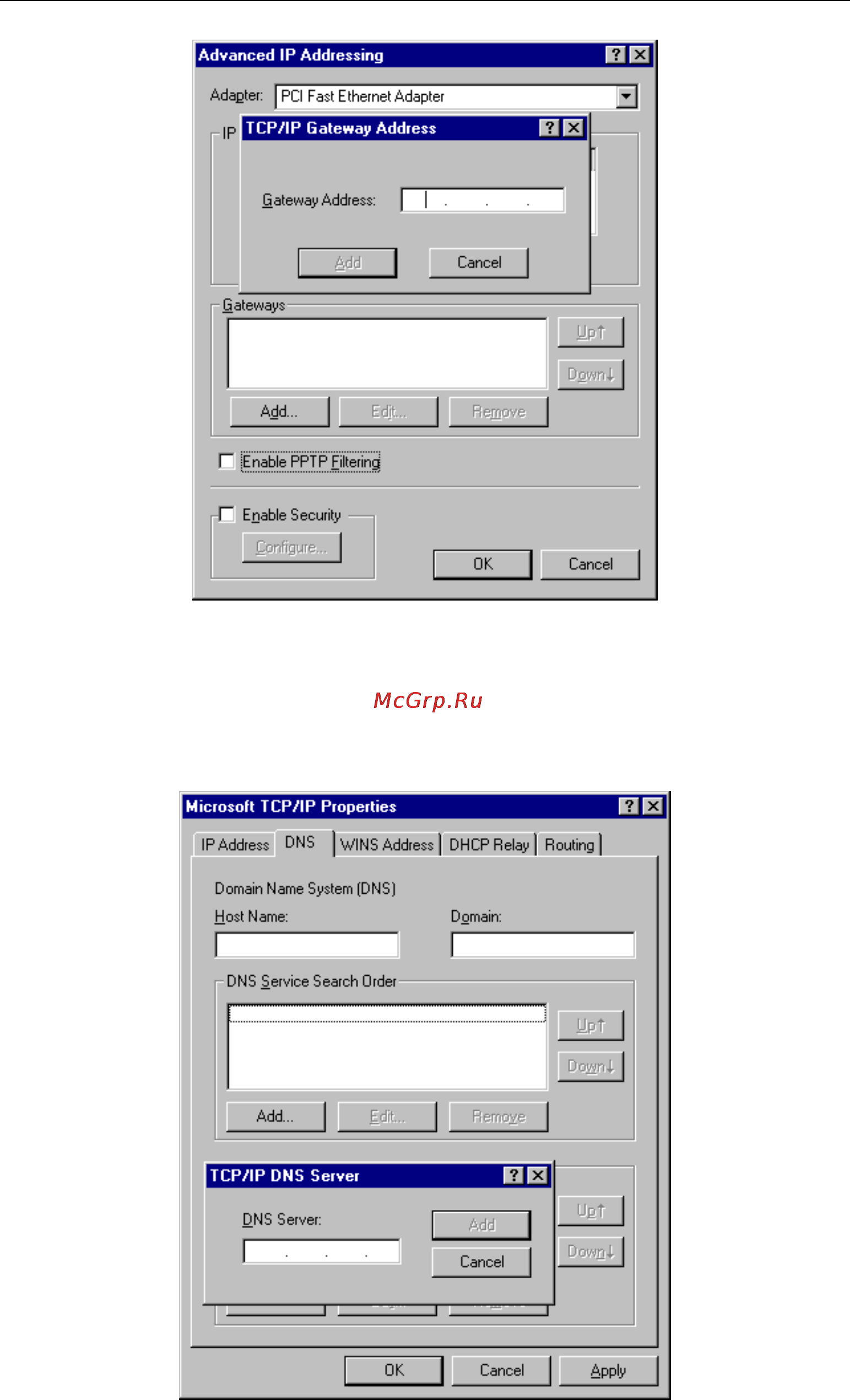

Figure 19 - Windows NT4.0 - Add Gateway

2. The DNS should be set to the address provided by your ISP, as follows:

• Click the DNS tab.

• On the DNS screen, shown below, click the Add button (under DNS Service Search

Order), and enter the DNS provided by your ISP.

Figure 20: Windows NT4.0 - DNS
