• For the Network key and Confirm network key, enter the default key value used on the

IAD-200W. (Windows will determine if 64bit or 128bit encryption is used.)

• The Key index must match the default key index on the IAD-200W. The default value is

• Ensu

re the options. The key is provided for me automatically and this is a computer-to-

computer (ad hoc) network are unchecked.

• Click OK to save and close this dialog.

• This wireless network will now be listed in Preferred Networks on the screen below.

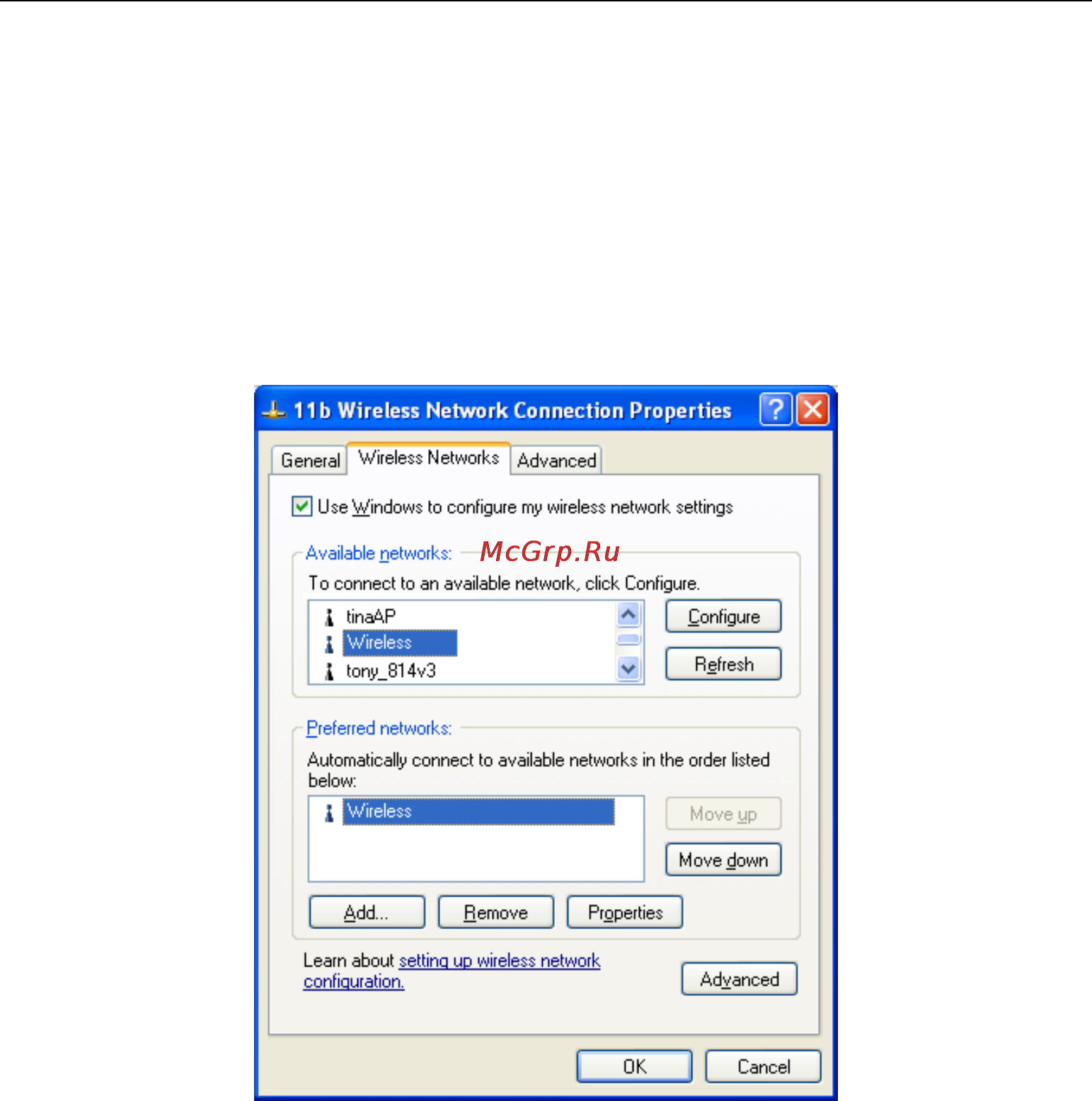

Figure 31: Preferred Networks

Click OK to establish a connection to the IAD-200W.
