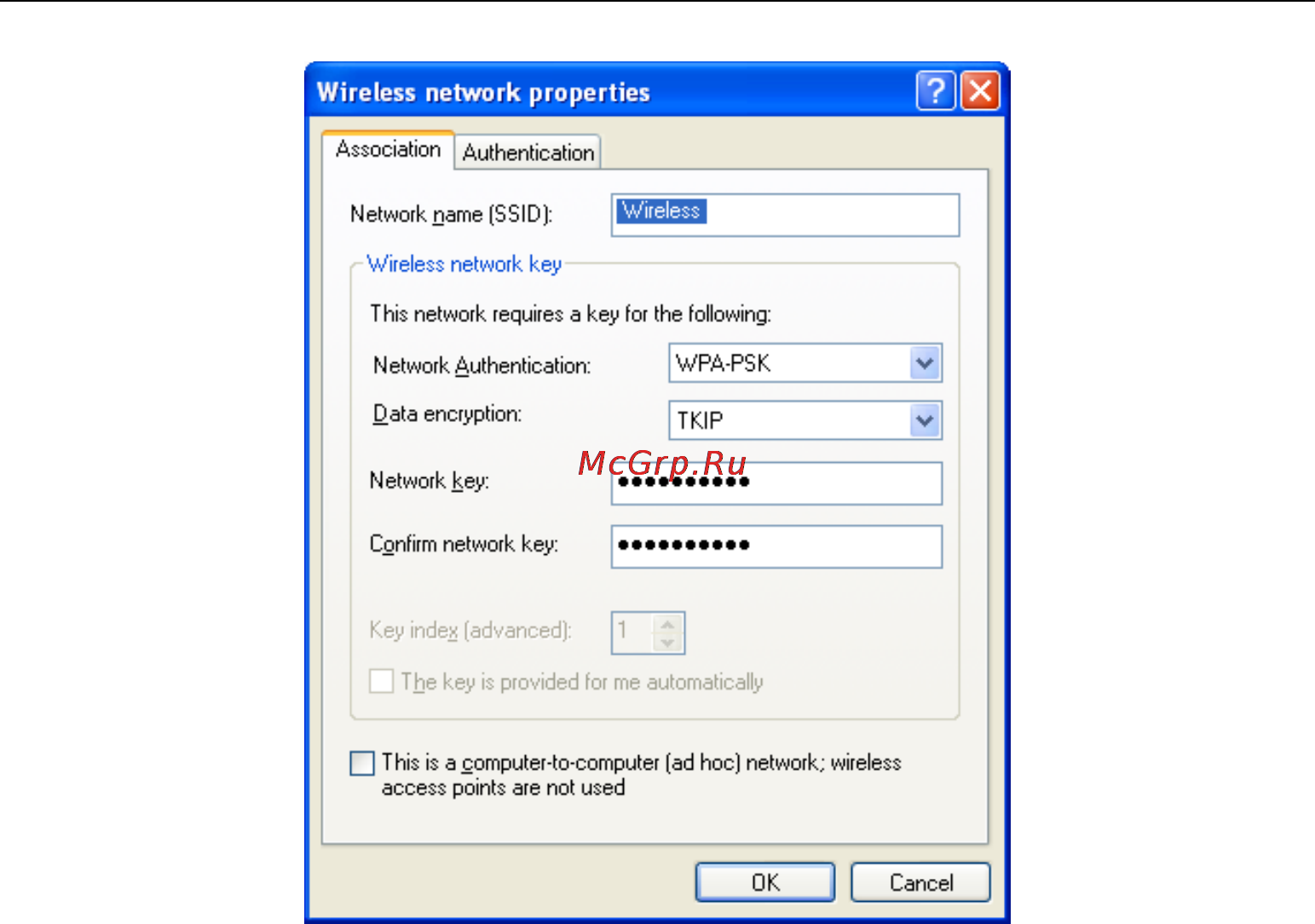

Figure 34: Wireless Network Properties- WPA-PSK

Configure this screen as follows:

• Set Network Authentication to WPA-PSK.

• For Data Encryption, select TKIP.

• For the Network key and Confirm network key, enter the network key (PSK) used on the

IAD-200W.

• Ensu

re the option. This is a computer-to-computer (ad hoc) network is unchecked.

• Click OK to save and close this dialog.

• This wireless network will now be listed in Preferred Networks on the screen below.
