IP DSLAM
43

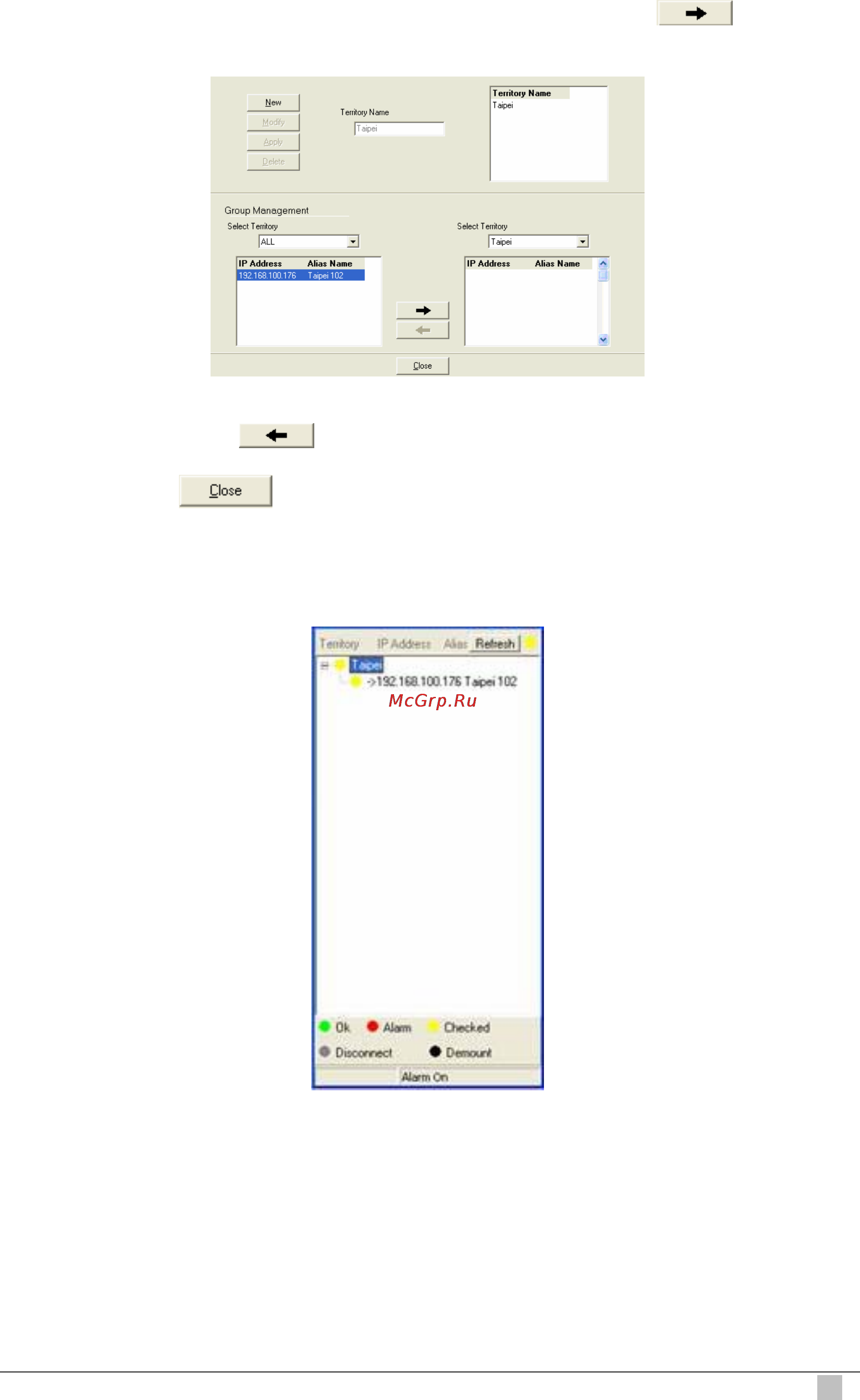

d. Choose the agent, 192.168.100.176 on the left and then click on . The agent IP
will appear on the right and will be mornitored under the territory, Taipei.
e. If users want to move the agent IP from Taipei to other territory, select a desired agent
IP and click on
to shift it to the left.
f. Click on
to exit the window or continue to perform other operations in the
same window.
Correspondently, the Agent Desktop displays that Agent IP 192.168.100.176 has been
monitored under the territory, Taipei.
