IDL series User Guide
48
2.4.2.6 User Manager
The IDL Manager uses user accounts, password as well as power level (system
privileges) to control access and log in. There are three types of privileges, Supervisor,
Constructor and Tester.
Supervisor:
The highest level user with this privilege can access ANY functions and data.
Constructor:
User can set and modify the configuration of network equipments.
Tester:
User can run maintenance test, such as loop back function.
To perform user manager, proceed as follows,

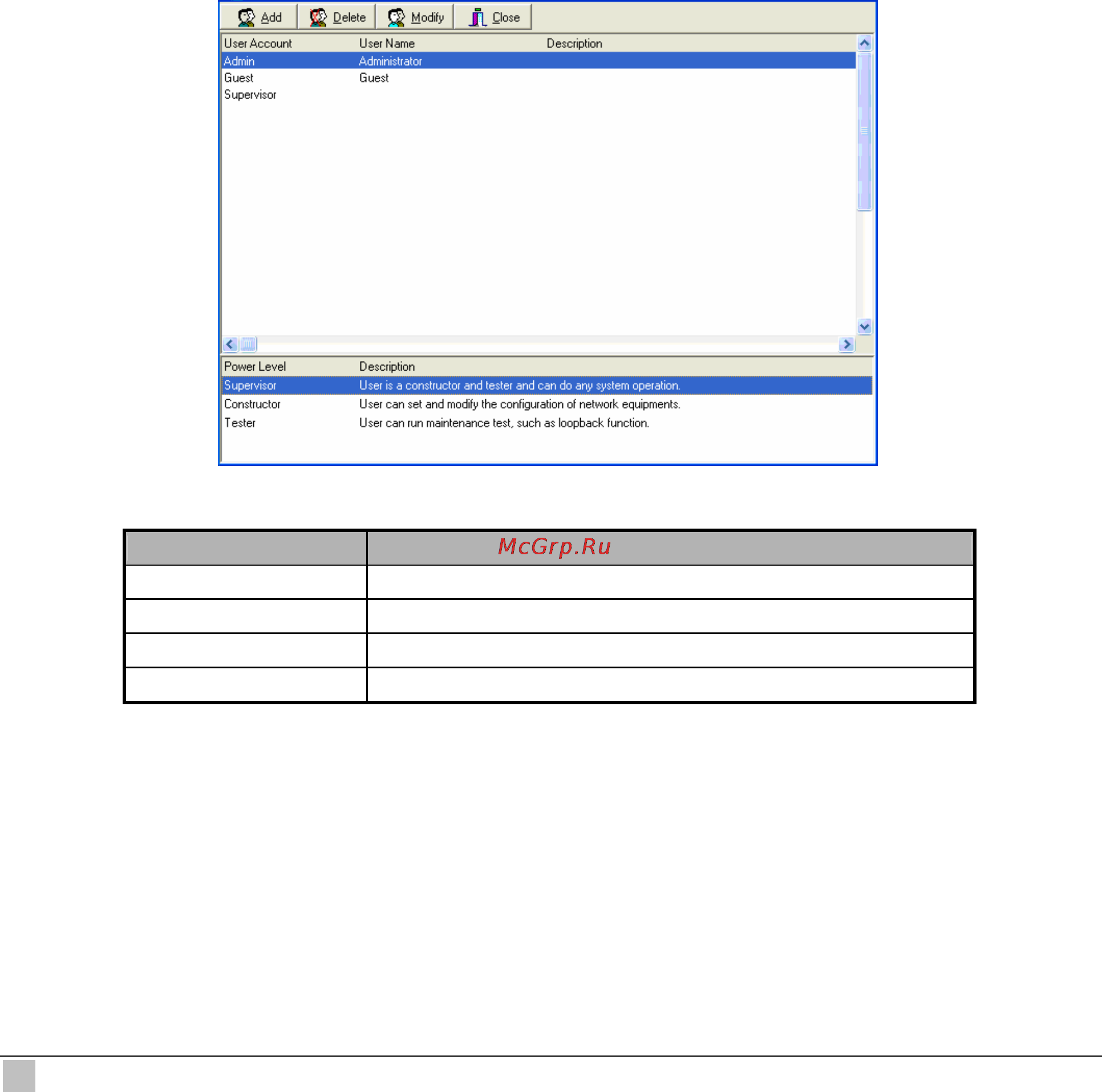

Choose User Manager from Tools Menu to access this window. From the following
window, User Manager, you can add and remove users as well as change passwords,
which are used to control the login.
Field Definition
User Account an ID to be used for login
User Name The full name of a user
Description Remarks for note purpose
Power Level Privileges; Administrator and Tester
