Streacom LH6 CPU Cooling Kit for DB4 [10/16] Fit hdd

10

Installing Hard Drives

The DB4 can accommodate a mix of drives that in principle can be fitted anywhere along the frame of the case but we recommend using the space away from the

CPU side of the motherboard tray so that the drives run cooler. Below are some potential configurations showing the maximum number of 3.5" & 2.5" drives and

typical scenarios which also include using the ZF240 PSU. Note that these examples do not show the back of the motherboard tray in use which can also

accommodate drives but of course will influence the space available for the configurations shown. Once the general concept is understood, it is possible to mix and

match different combinations and achieve the ideal layout for your chosen components.

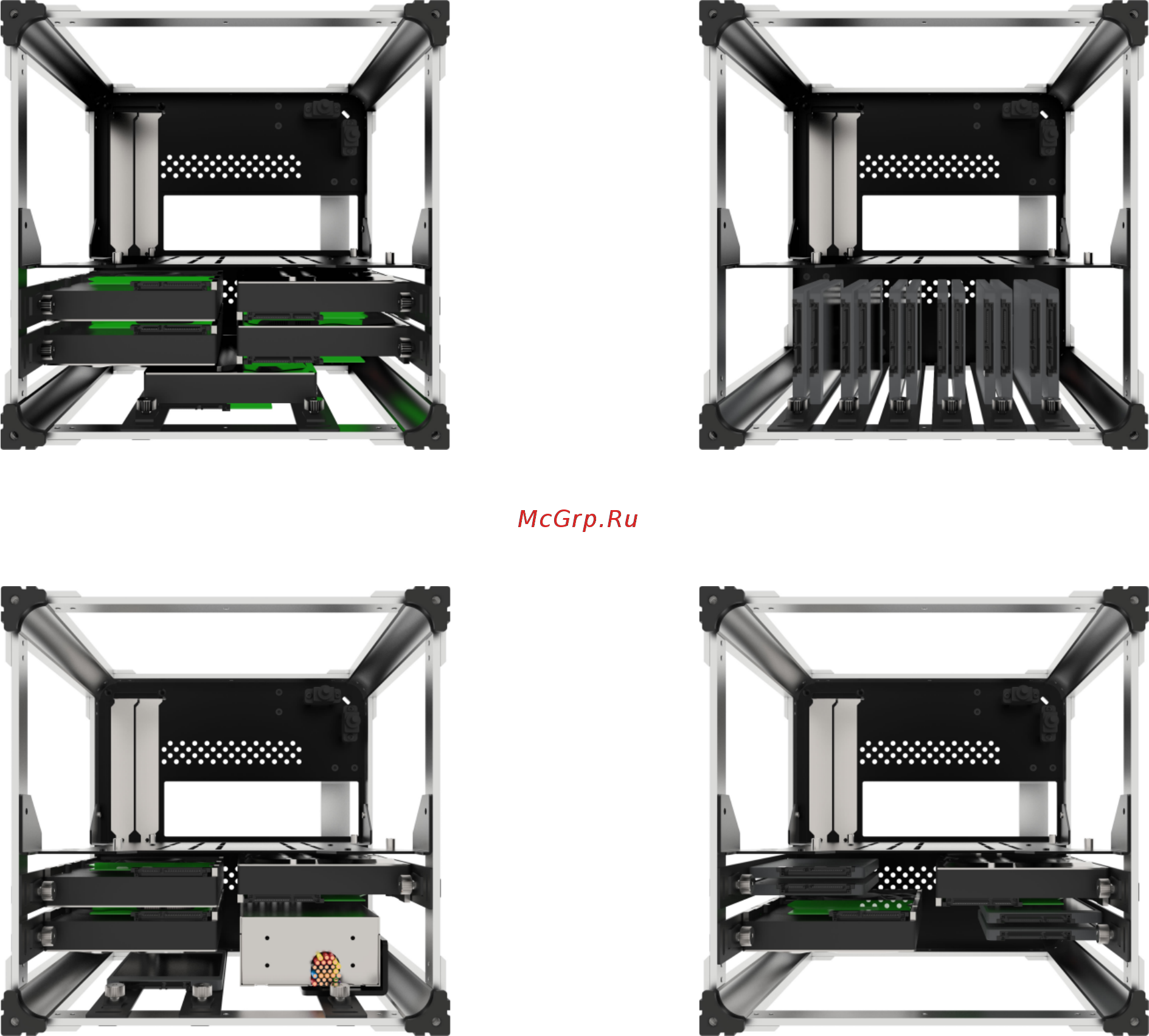

3 x 3.5" +1 x 2.5" + ZF240 2 x 3.5" +4 x 2.5" Drives

5 x 3.5" Drives 12 x 2.5" Drives
