Using the ZF240

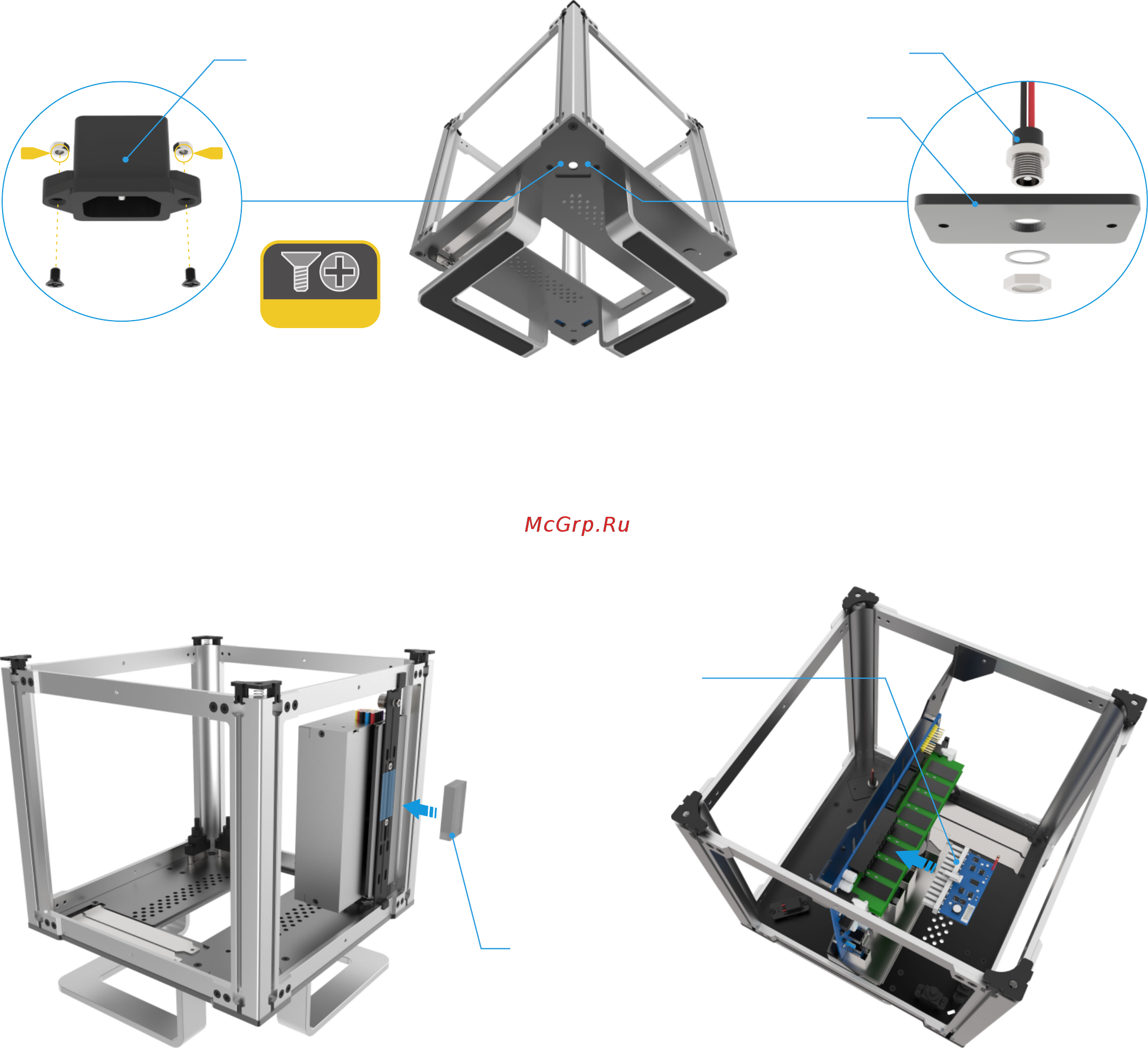

Remove the IEC cover plate from the bottom panel and replace it with the
ZF240 IEC power socket, then attached the ZF240 to a universal bracket,
fitted to the frame as shown below. Apply the thermal pad supplied to the
universal bracket as shown in order to transfer the heat from the ZF240 to
the side panel. When the side panel is replaced, it should make contact
with the thermal pad. Note that the ZF240 can actually be placed
anywhere along the frame, within reach of the AC power cable.
Installing a PSU
The DB4 is compatible with Nano (external AC adapter and internal DC to DC PCB) or ZeroFlex (internal fanless) style PSUs. Depending on which solution you
choose, either secure the Nano DC socket to the IEC cover plate, or remove it in order to install the ZF240 IEC socket directly to the bottom panel.
Using a Nano PSU
Fit the NanoPSU DC jack to the bottom panel though the hole in the IEC
cover plate with the nut and washer supplied. When the motherboard is
installed into the case, you can plug the NanoPSU into the motherboard
24Pin & 4Pin power connectors and connect all the other device power
SATA and Molex connectors.
PCS-M3x8
ZF240 IEC Socket
NanoPSU DC Socket
IEC Cover Plate
Thermal Pad
Nano DC to DC PCB
