Installing the Motherboard Tray with Hardware

Before replacing the tray, locate the I/O shield supplied with your motherboard and firmly push it in place. Ensure that it properly seated and in the correct

orientation otherwise the motherboard will not fit. If you are installing an expansion card, you must first remove the PCI blanking plates already installed in the case.

This is done by removing the single screw for each PCI blank which is located at the bottom of the case. These screws will be replaced once the motherboard tray

with expansion card is installed in the case.

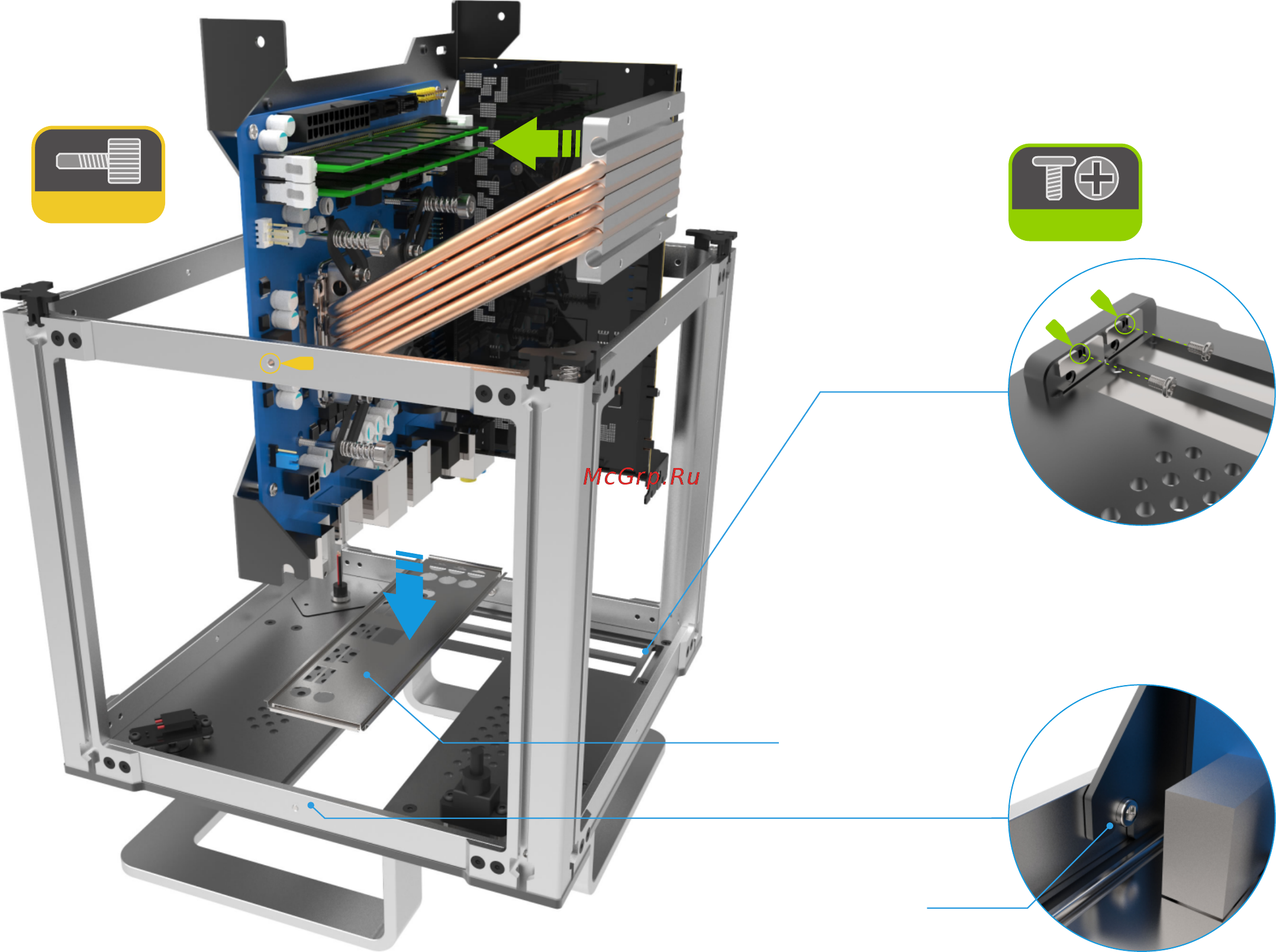

With all the components fitted (i.e. motherboard, CPU, RAM, expansion card, cooler assembly), carefully lower the tray into the case making sure the bottom of

the tray slots into the guide screws and the expansion cards slot into the PCI mount opening. Secure the assembly in place using the lock thumbscrews and PCI

screws if using an expansion card. Do not fully tighten the lock thumbscrews until replacing the side panels.
