Fitting Components to the Motherboard Tray

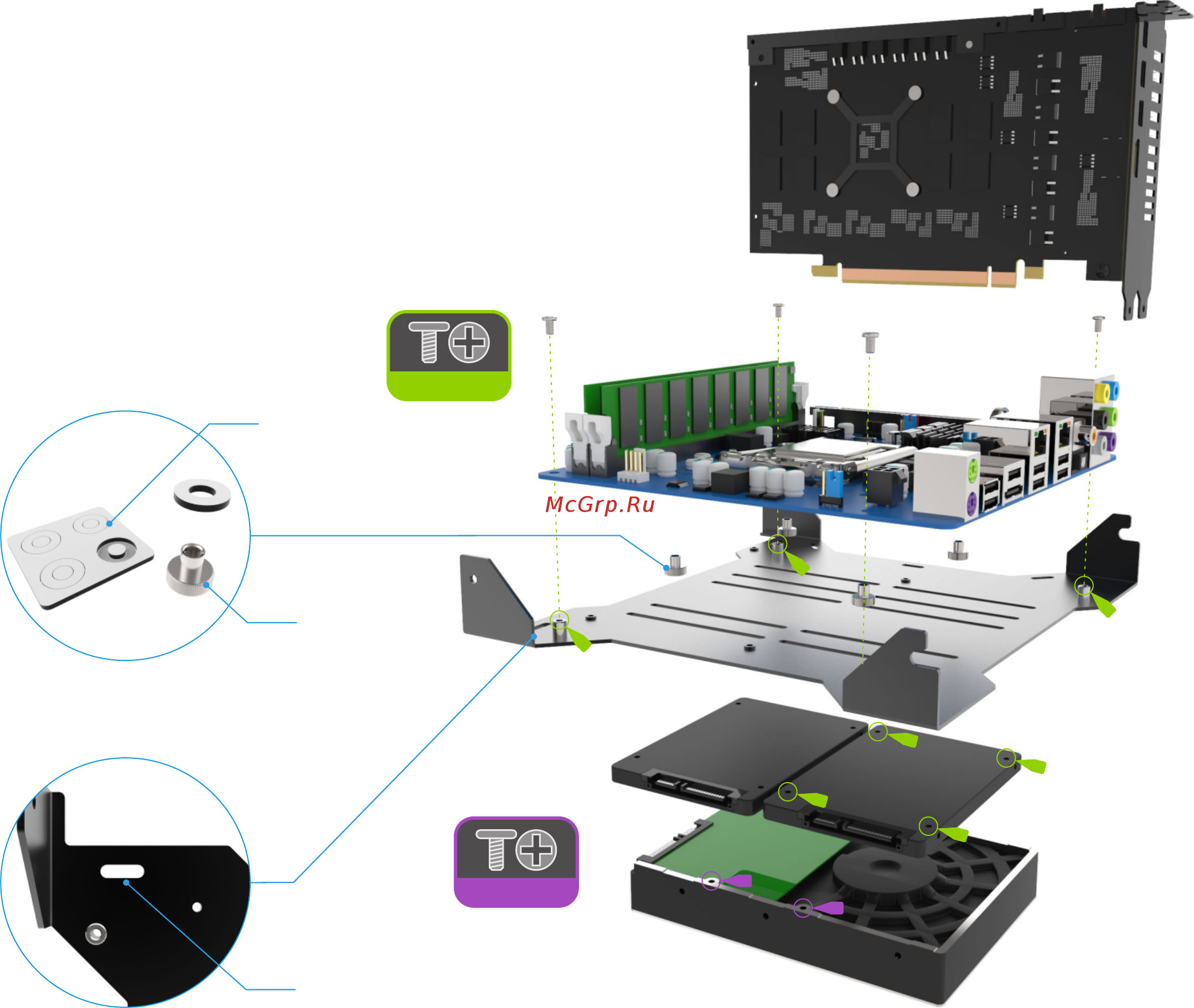

Prior to installing to the tray, M3 nuts must be stuck to the underside of the motherboard, through the CPU cooler mounting holes. The M3 nuts are supplied with

double sided adhesive pads which should first be applied to the M3 nuts. A spare set of adhesive pads are included should you need to change your motherboard in

future. Once the nuts are fitted, align the motherboard with the 4 stand-offs on the tray and secure it using 4 x PTC-M3x5 screws as shown.

If you are planning to fit drives to the motherboard tray, they must be fitted prior to

installing the motherboard. Use the appropriate 4 screws per drive, depending on the

type of drive as shown, M3x5 for 2.5" and 6#32 for 3.5" Drives.

If you have also purchased the optional optical drive kit, the rear of the motherboard

Double Sided Adhesive Pads

M3 Nut

Cable Tie Mount Hole
