CPU Cooler Assembly Overview

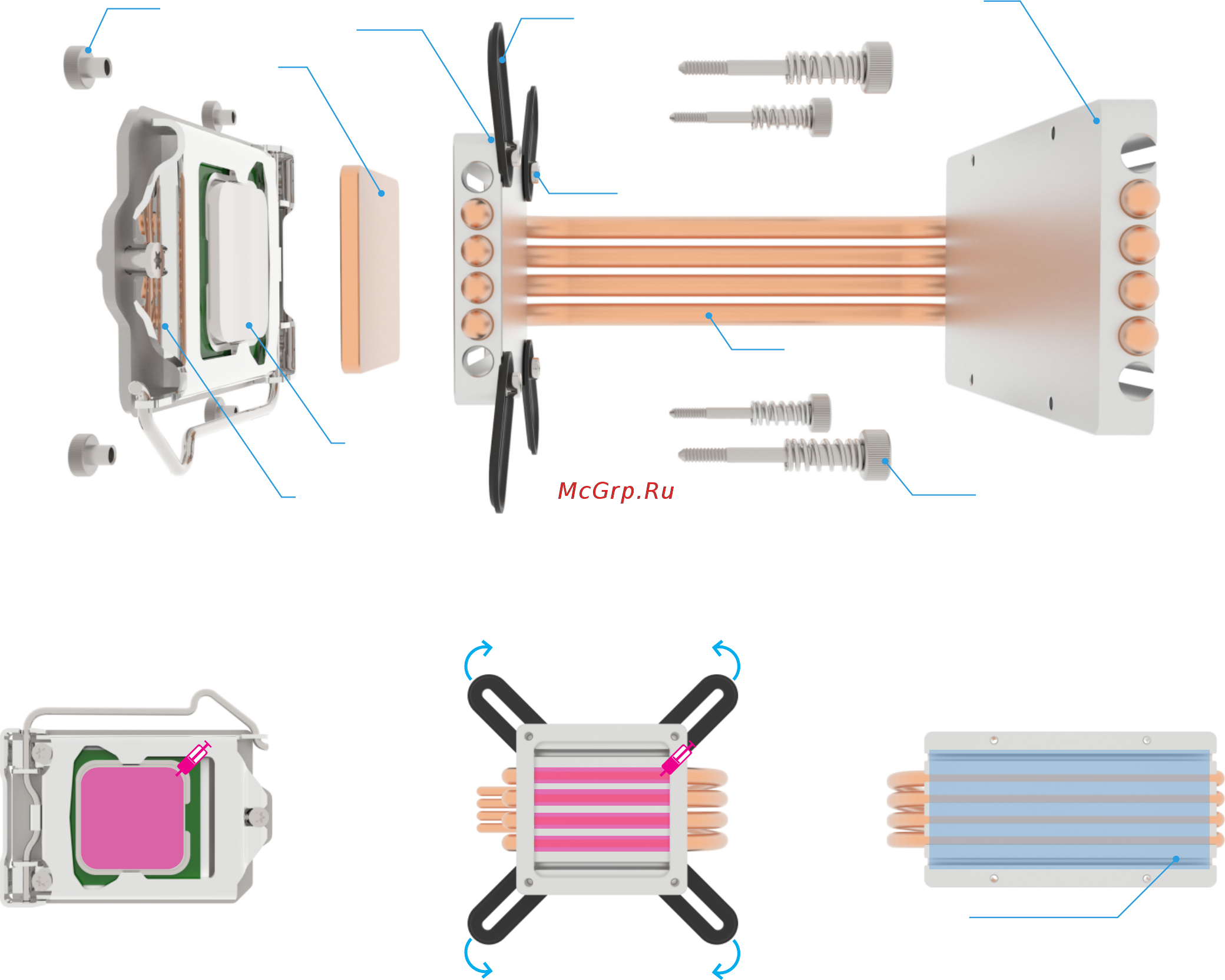

Below is an overview of the DB4 CPU cooler assembly which comprises of 3 main groups. 1- The CPU mount assembly (copper shim, CPU mount, and arms)

which secure the heat pipes to the CPU / motherboard using the spring loaded screws. 2 - The heat sink mount that secures the heat pipes to the case side panel

(heat sink). 3 - The heat pipes that transfer the heat from the CPU to heat sink. The parts are individually packed for protection and require assembly.

The arms come pre-assembled to CPU mount with HEX screws, slightly loosen them so they can pivot outwards and be correctly orientated to align with the

motherboard CPU cooler mounting holes when fitting. Carefully slot the heat pipes (the shorter side) into the CPU mount holes until they slightly protrude, being

careful not to bend or damage them. The other side of the heat pipes can now be slotted into the heat sink mount, again being careful not to bend or damage them.

The use of thermal paste and pads is ESSENTIAL to ensure efficient heat transfer and should be applied to ALL the surfaces indicated below. Thermal paste is messy

Copper Shim

M3 Nut

CPU Mount
