Chapter 5 Configure With Console
The
IP Power Manager
has provided
a serial port that
enables
you to configure and control the
system through your PC’s RS-232 serial
(COM) port. Use the serial cable provided to connect the
console
port to your PC’s COM port as described in “Connecting the console”. This section
describes how to use a console application to control
the
IP Power Manager
and configure its
settings such as its
IP
address, outlet control parameters,
access control table, and trap receivers
table.
5.1 Run Hyper Terminal
Follow these steps to
start HyperTerminal
and communicate with
the
IP Power
Manager
:
1.
To start HyperTerminal,
click
Star
==>
Programs
==>
Accessories ==>
Communications
==>
HyperTerminal from the Windows
Start button.
2.

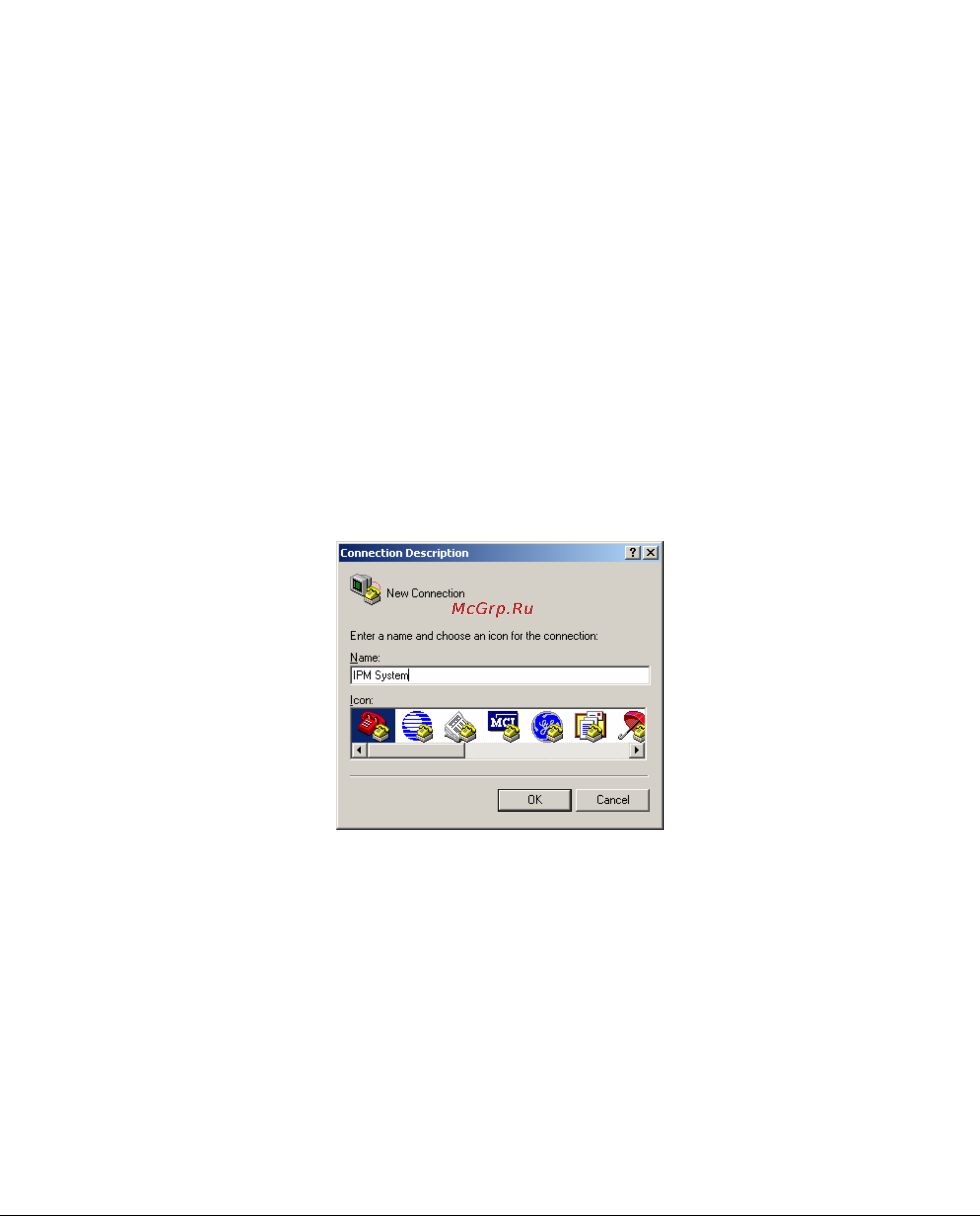

A New Connection opens. Type a name for the
connection in the
Name field and select an icon
for the connection. Click
OK when done.
- 5 -
3.
From the
Connect
T
o drop-down box, select the
COM port
that
IP Power Manager
connected.
Click
OK when done.
