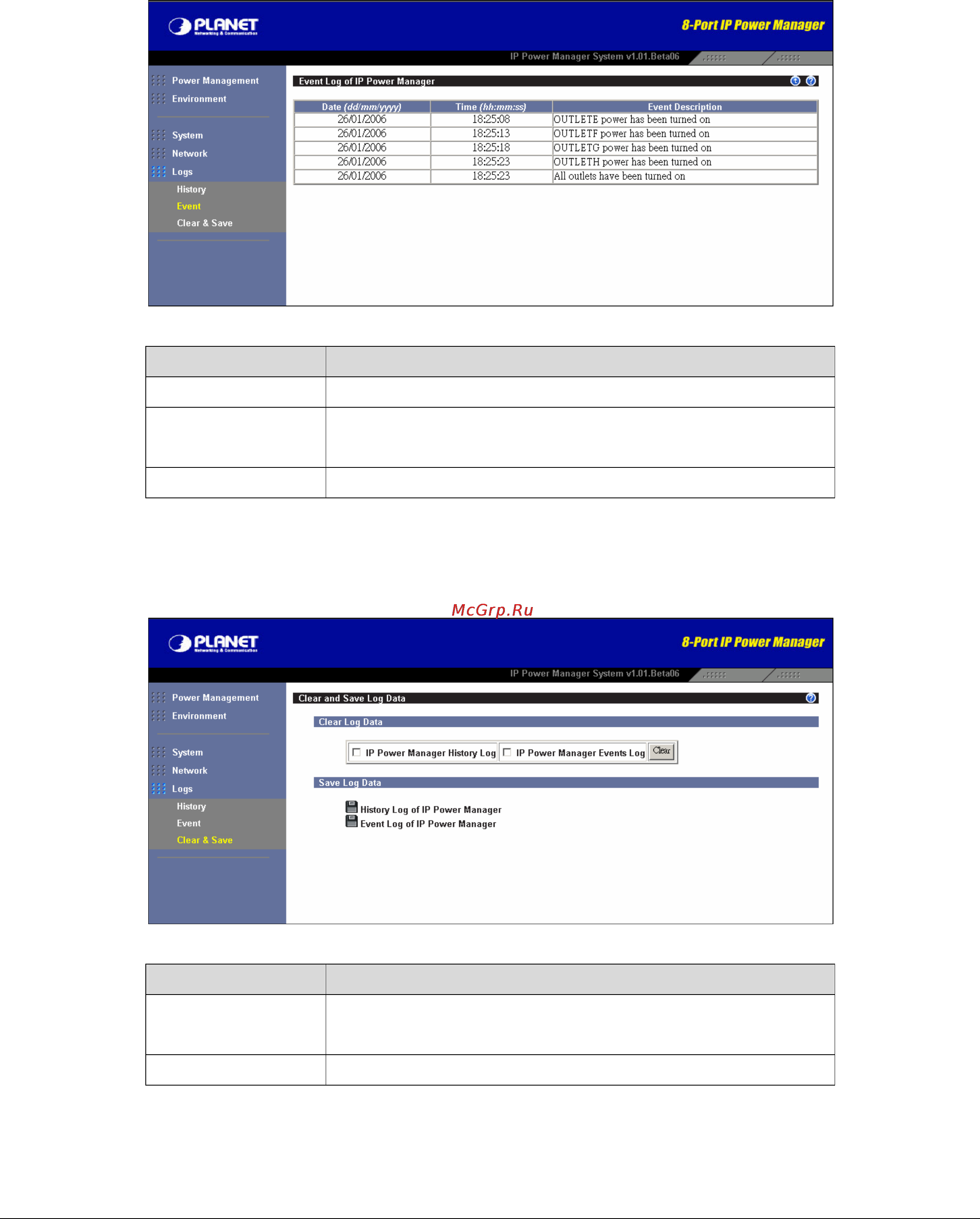

Planet IPM-EMD [50/57] Event description

Option Description

Date (dd/mm/yyyy)

This column show the date on which the recording was made.

Time (hh:mm:ss)

This gives the time in a 24-hour format when the values were

recorded.

Event Description

6.5.3 Clear and Save Log Data

This screen allows you to clear or save the log file.

Option Description

Clear Log Data

Please select which log you would like to delete and click “Clear”

button.

Save Log Data

You can click the diskette icon to save History or Event log into a file.

- 36 -
