4.24 System Reboot
Reboot the Switch in software reset. Click button to reboot the switch.

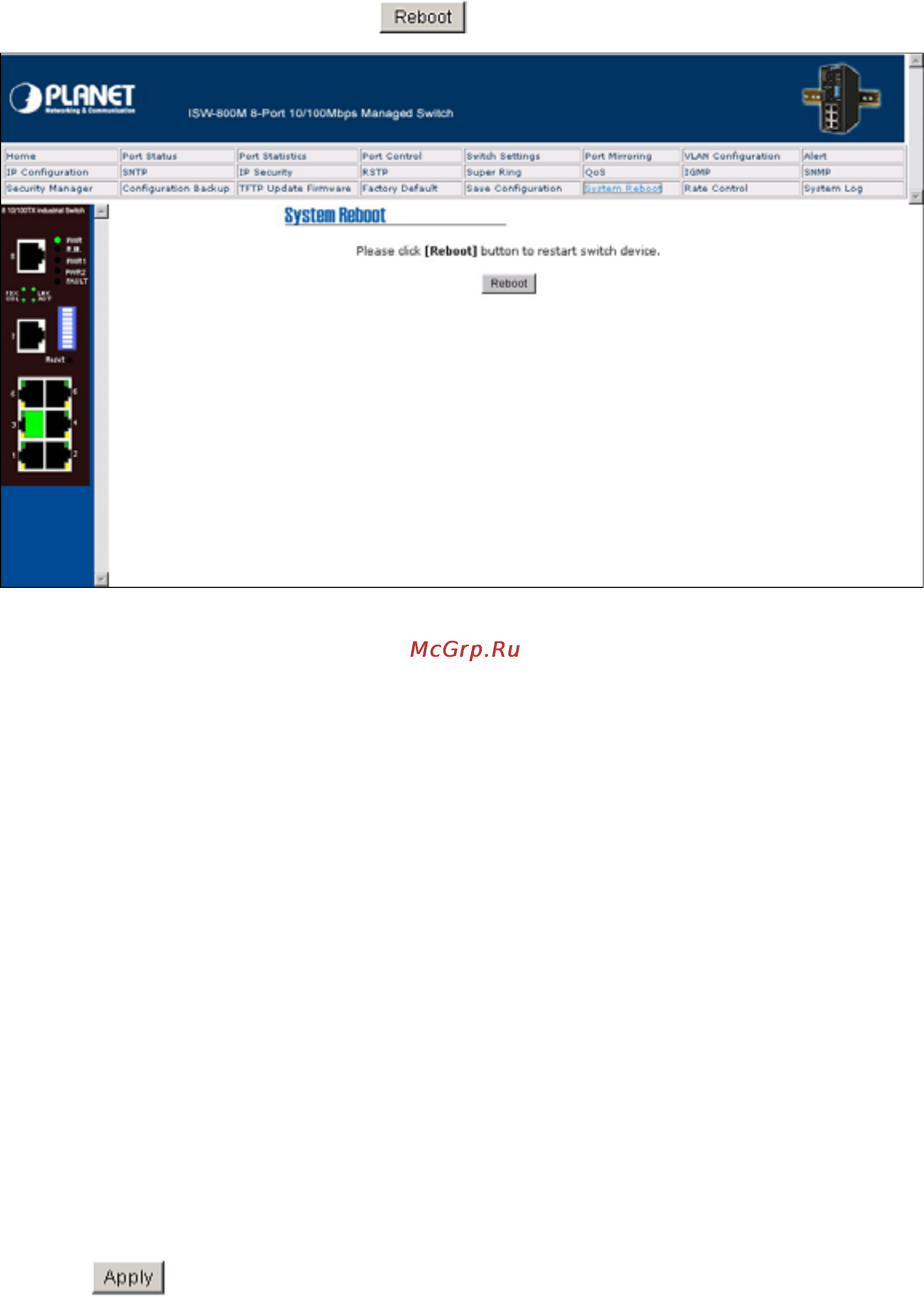

System Reboot interface
4.25 Rate Control
You can set up every port's bandwidth rate and packet limitation type.
■ Limit Packet type: select the packet type that want to filter. The packet types have all type packet,
broadcast/multicast/unknown unicast packet, broadcast/multicast packet, and broadcast packet only.
The broadcast/multicast/unknown unicast packet, broadcast/multicast packet, and broadcast packet
only are only for ingress packet. The egress rate only supports all type packet.
■ The port1 ~ port 8, supports port ingress and egress rate control. For example, assume port 1 is
10Mbps, users can set it's effective egress rate is 1Mbps, ingress rate is 500Kbps. The switch
performs the ingress rate by packet counter to meet the specified rate.
¾ Ingress: select the port effective ingress rate. The valid range value is 1MB, 2MB, 4MB, 8MB,
16MB, 32MB and 64MB. The default value is "disable".
¾ Egress: select the port effective ingress rate. The valid range value is 128kbps, 256Kbps,
512Kbps, 1MB, 2MB, 4MB, and 8MB. The default value is "disable".
■ Click
button to apply the configuration.
[NOTE]
1. Remember to execute the "Save Configuration" action, otherwise the new configuration will lose
when the switch power off.
