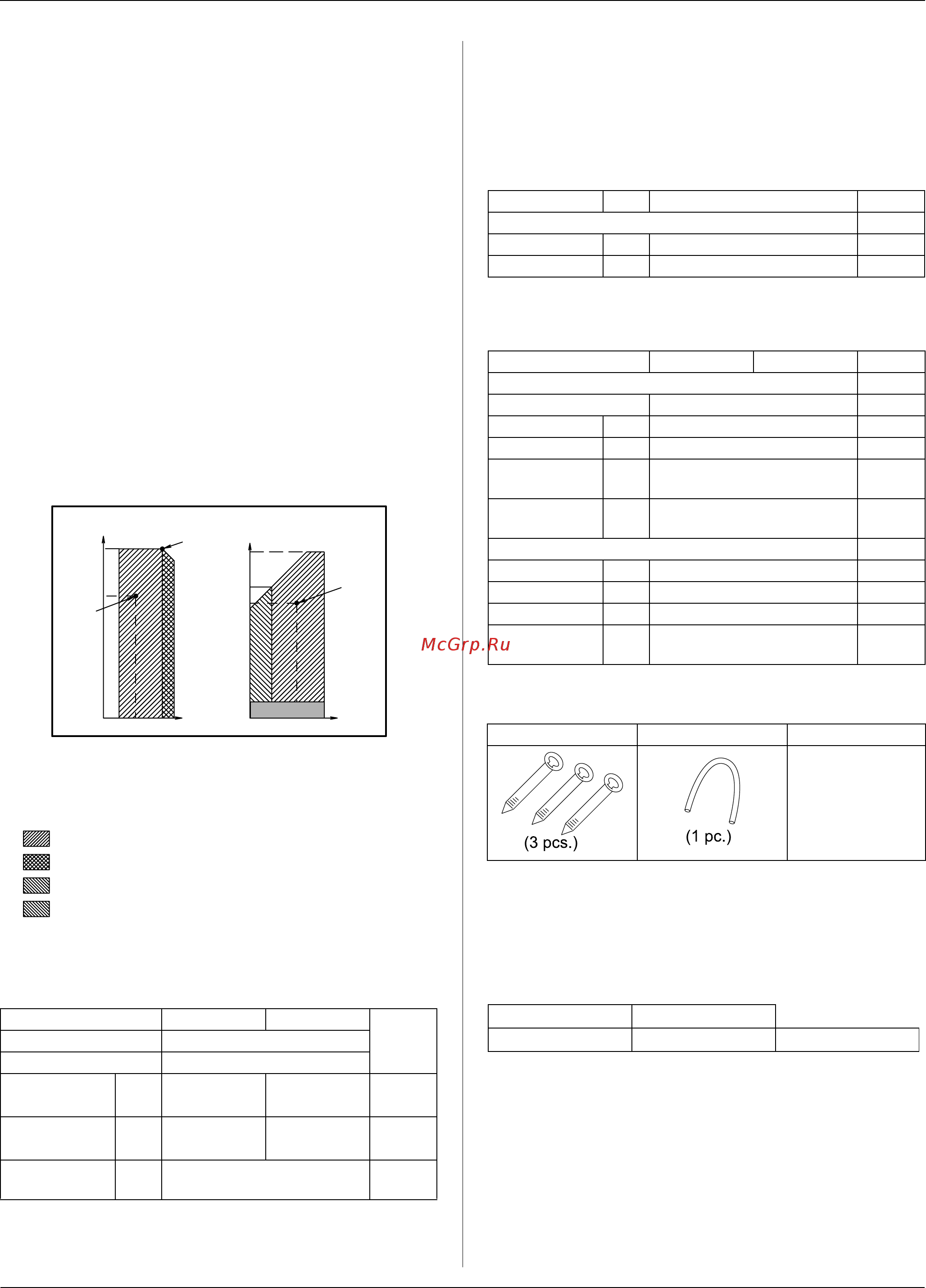

EDUS39-606A-N Installation
Installation of Outdoor Units 11
If the conventional refrigerant and refrigerator oil are mixed
in the R-410A, the refrigerant may deteriorated.
• Never perform outdoor unit piping connection work
when it is raining.
• The PCI Data Station is a class A product. In a domestic
environment this product may cause radio interference in
which case the user may be required to take adequate
measures.
4.2 Introduction
4.2.1 Combination
• Always use an appropriate indoor unit compatible with R-
410A.
To learn which models of indoor units are compatible with
R-410A, refer to the product catalogs.
• Total capacity/quantity of indoor units
<Outdoor unit> <Total capacity of indoor units> <Total quantity of indoor units>
RXYMQ36MVJU.... 18~46.8 6 units
RXYMQ48MVJU.... 24~62.4 8 units
4.2.2 Standard operation limit
The figures below assume following operating conditions for
indoor and outdoor units:
Equivalent pipe length ................25 ft. (7.6 m)
Level difference...........................0 ft.
Cooling Heating
<b>
B
<c>
A
C
D
<a>
∗
∗
∗
–4
5
59
115
41
5050
43
70
95
81
50
23
77
60
67 8257
A Outdoor temperature (°FDB)
B Indoor temperature (°FWB)
C Outdoor temperature (°FWB)
D Indoor temperature (°FDB)
Range for continuous operation
Range for pull down operation
Range for warming up operation
Range for operation
4.2.3 Technical specifications
In the following table, ∗<a> and ∗<b> indicates the operating
condition:
Electrical specifications
∗
<c> in the table indicates the operating condition shown in Sec-
tion 2-3, Technical specifications.
Accessories
Confirm that the following accessories are supplied:
Clamp Insulation tube Others
• Operation manual
• Installation manual
Optional accessories
To install the above outdoor units, use the following optional
parts:
• Refrigerant branching kit*
NOTE: Systems using R-410A must have the appropriate
kit designed for that system.
REFNET joint KHRP26M22T
REFNET header KHRP26M22H KHRP26M33H
*Select the refrigerant branching kit in accordance with Sec-
tion 6. REFRIGERANT PIPING WORK.
Main components:
For main components and function of the main components,
refer to the Engineering Data Book.
4.3 Before Installation
Model
RXYMQ36MVJU RXYMQ48MVJU
Precau-
tion
Refrigerant
R-410A
Power
208-230V 60Hz
Cooling capacity
(MBh) 36 48 ∗<a>
Heating capacity
(MBh) 40 54 ∗<b>
Cooling input
(kW) 3.05 4.73 ∗<a>
Heating input
(kW) 3.27 4.26 ∗<b>
Dimensions
(inch) 52 15/16 × 35 7/16 × 12 5/8
H × W × D
Weight
(lb.) 310
Connections
Gas
(inch) 5/8
Liquid
(inch) 3/8
Model
RXYMQ36MVJU RXYMQ48MVJU
Precaution
Power
Phase ~
Frequency (Hz) 60
Voltage (V) 208-230
Voltage
torerance
(%) ±10
Rated current
of fuse
(A) 30
Compressor
Phase 3~
Frequency (Hz) 60
Voltage (V) 208-230
Min. Circuit
Amps.
(A) 27.0 ∗<c>
