Daikin RXYMQ48MVJU [3/31] Rxymq36 48mvju
![Daikin RXYMQ48MVJU [3/31] Rxymq36 48mvju](/views2/1718439/page3/bg3.png)

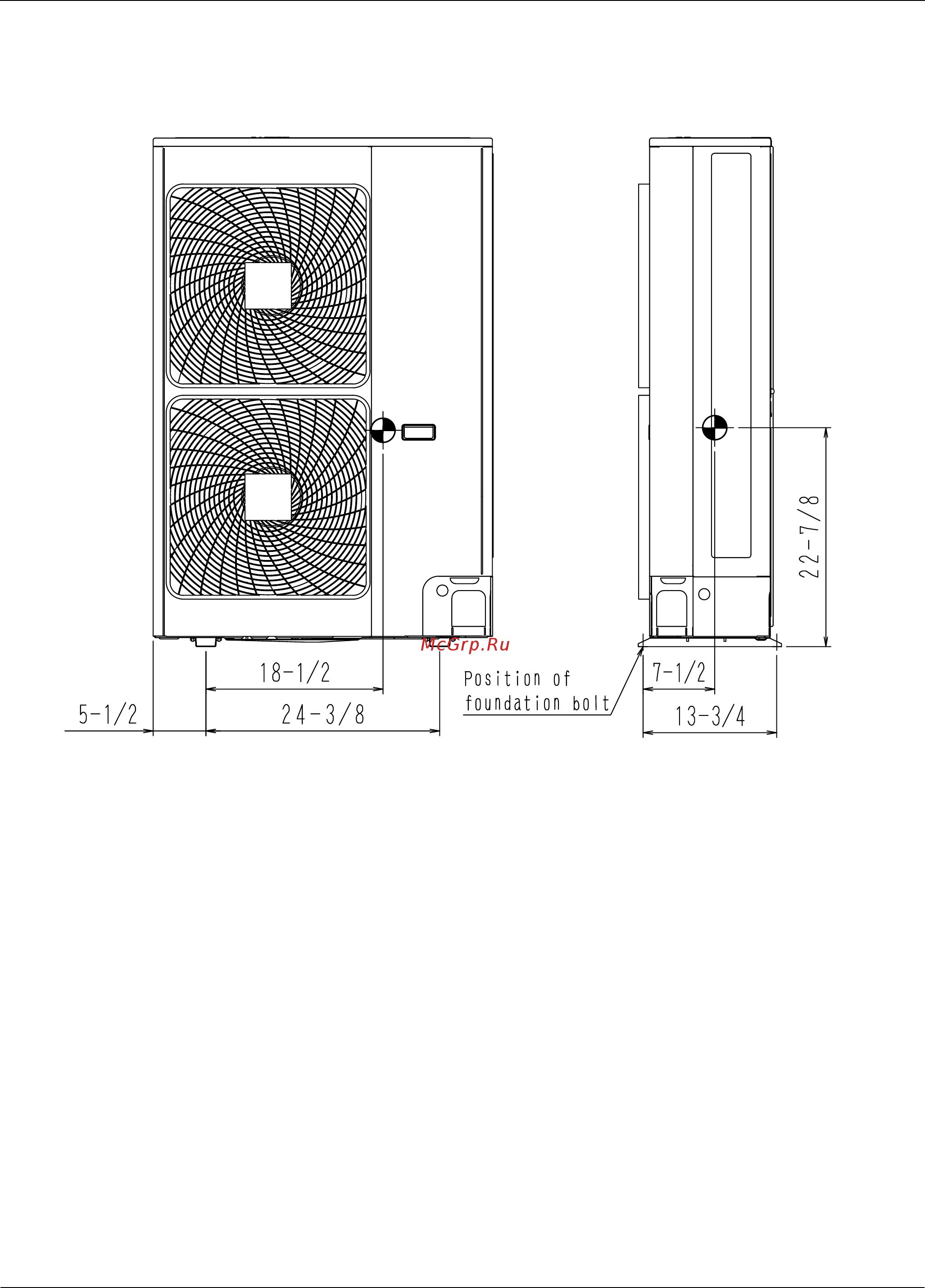

Center of Gravity EDUS39-606A-N
2 Installation of Outdoor Units
1. Center of Gravity
RXYMQ36/48MVJU
4D047387
