EDUS39-606A-N REFNET Pipe System
Installation of Outdoor Units 5

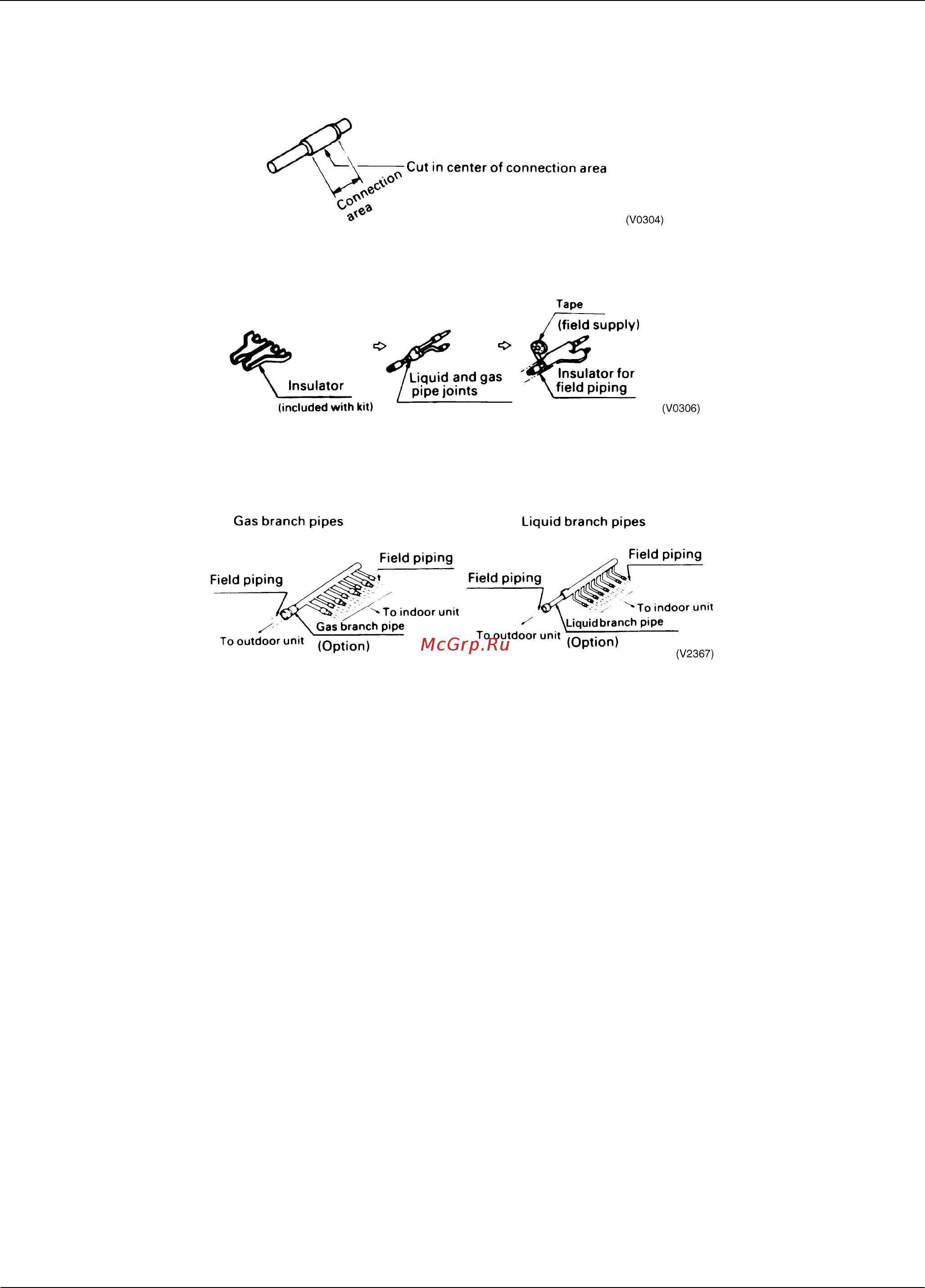

When you are cutting an inlet or outlet pipe with a pipe cutter make sure that you make the cut in the center of the
connection area.
Branch pipes must be insulated in accordance with the handbook accompanying each kit.
2.3.2 REFNET Header
