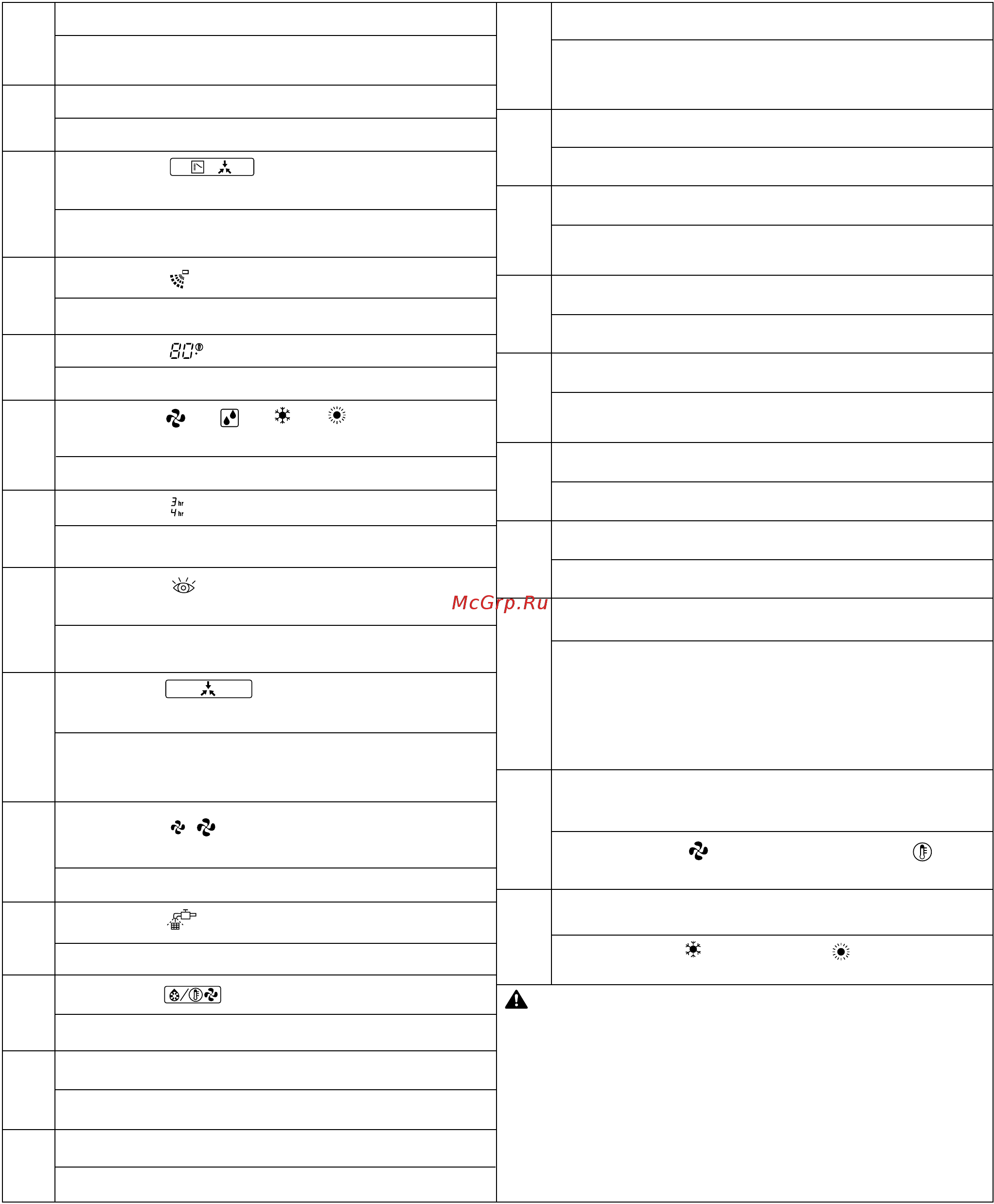

5
ON/OFF button
Press the button and the system will start. Press the
button again and the system will stop.
OPERATION LAMP (RED)
DISPLAY “ ” (CHANGEOVER
UNDER CONTROL)
The lamp lights up during operation.
It is impossible to changeover heat/cool with the remote
controller when this icon is displayed.
DISPLAY “ ” “ ” “ ” “ ”
(OPERATION MODE)
This display shows the current OPERATION MODE.
DISPLAY “ ” (PROGRAMMED TIME)
This display shows PROGRAMMED TIME of the system
start or stop.
DISPLAY “ ” (INSPECTION/TEST
OPERATION)
When the INSPECTION/TEST OPERATION BUTTON is
pressed, the display shows the system mode is in.
DISPLAY “ ” (FAN SPEED).
The display shows the fan speed: “LOW” or “HIGH”.
DISPLAY “ ” (TIME TO CLEAN AIR FILTER)
Refer to the operation manual attached to the indoor unit.
DISPLAY “ ” (UNDER CENTRALIZED
CONTROL)
When this display shows, the system in UNDER
CENTRALIZED CONTROL.
(This is not a standard specification)
Refer to page 10.
This display shows the set temperature.
DISPLAY “ ” (AIR FLOW FLAP)
DISPLAY “ ” (SET TEMPERATURE)
TEST
LH
1
2
3
4
5
6
7
8
9
10
11
INSPECTION/TEST OPERATION button
This button is used only by qualified service for maintenance
purposes.
Do not use it in normal operation.
TEMPERATURE SETTING button
Use this button for SETTING TEMPERATURE of the
thermostat.
FAN SPEED CONTROL button
Press this button to select the fan speed, LOW or HIGH,
of your choice.
PROGRAMMING TIME button
Use this button for programming “START and/or STOP” time.
FILTER SIGN RESET button
Refer to the operation manual attached to the indoor unit.
OPERATION MODE SELECTOR button
Press this button to select OPERATION MODE.
AIR FLOW DIRECTION ADJUST button
Refer to page 10.
NON-FUNCTIONING DISPLAY
15
16
17
18
19
20
21
22
23
If that particular function is not available, pressing the button
may display the words “NOT AVAILABLE” for a few seconds.
When running multiple units simultaneously, the “NOT
AVAILABLE” message will only be appear if none of the
indoor units is equipped with the function. If even one unit is
equipped with the function, the display will not appear.
FAN ONLY/AIR CONDITIONING SELECTOR
SWITCH
Set the switch to “ ” for fan only operation or to “ ” for
heating or cooling operation.
24
COOL/HEAT CHANGEOVER SWITCH
Set the switch to “ ” for cooling or to “ ” for heating
operation.
DISPLAY “ ” (DEFROST/HOT START)
Refer to page 8.
TIMER MODE START/STOP button
Refer to page 11.
12
13
NOTE
• For the sake of explanation, all indications are shown on the display in
the left figure contrary to actual operating situations.
•
If the display “Time to clean air filter” lights up, clean the air filter as explained
in the indoor unit operation manual. After cleaning and reinstalling the air filter,
press the filter sign reset button on the remote controller. The display will go
out.
F
TIMER ON/OFF button
Refer to page 11.
14
01_EN_3PN00286-12Z.fm Page 5 Wednesday, September 14, 2005 8:56 PM
