SiE00-01 Operation
Operation 13
Operating The HRV
Unit Using The
Remote Controller
of The VRV. System
Air Conditioner
When the VRV-system air conditioner is connected with the HRV unit with a direct duct, the remote
controller of the air conditioner cannot be used to select the VENTILATION mode. To use the HRV unit
without operating the air conditioner, set the air conditioner in the FAN VENTILATION mode and select the
low fan speed.

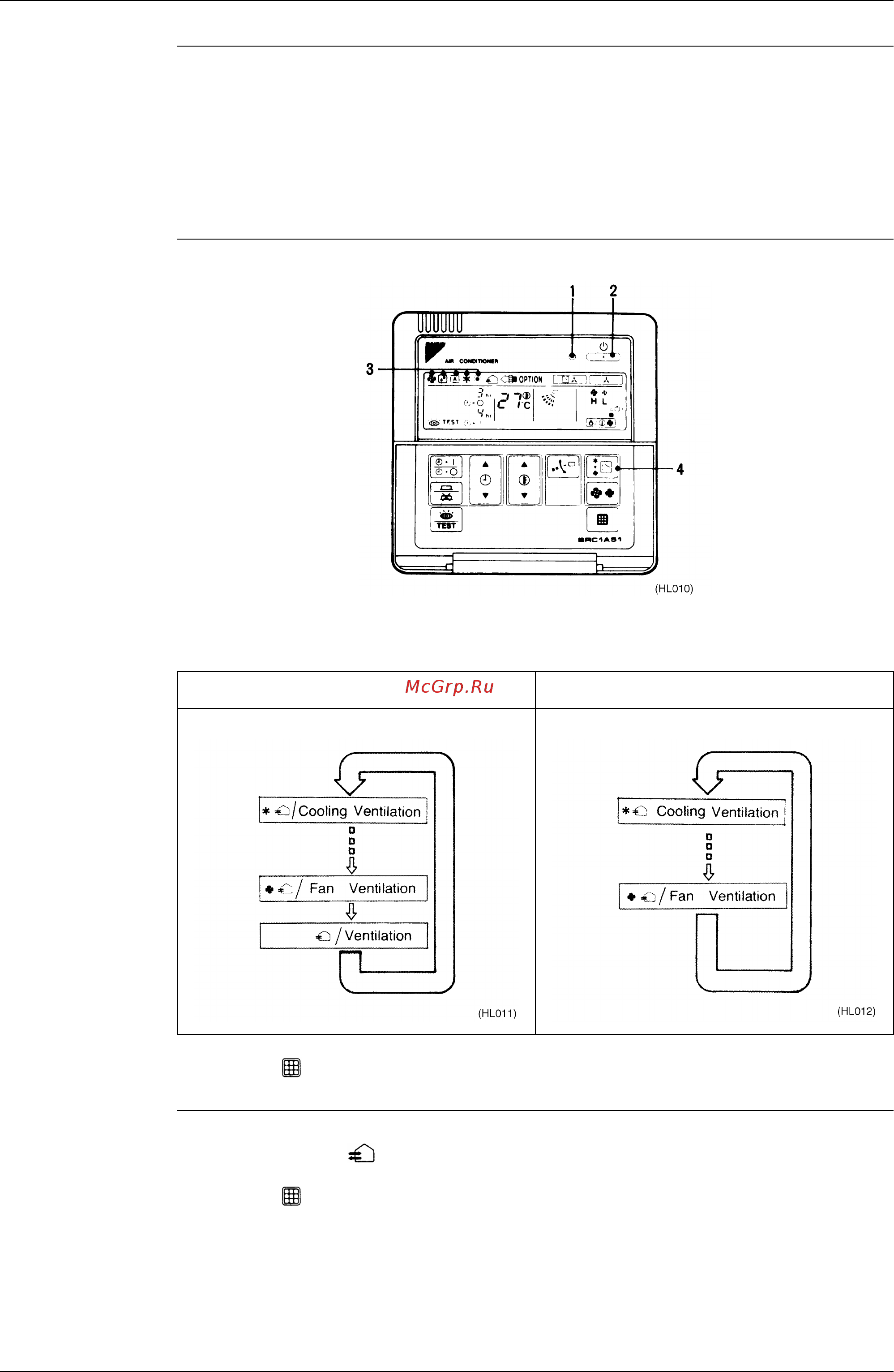

1. Operation lamp
2. Operation/stop button
3. Operation mode display
4. Operation mode selector
Remote Controller
for VRV
BRC1A61·62
Every time the operation mode selector is pressed, the operation mode display changes as shown
below.
(example)
When the “FILTER“ indication appears on the display, clean the filter of the HRV unit.
Independent
Operation of The
HRV Unit Using The
Centralized
Controller
(DCS302B61)
After selecting the zone where the only the HRV unit operation is desired, press the operation mode
selector and select ““ VENTILATION. The HRV unit can then be operated independently from
the air conditioner.
When the “FILTER“ indication apprears on the display, clean the filter of the HRV unit.
When air conditioner and HRV unit are not connected
by duct
When air conditioner and HRV unit are connected by
duct
