SiE00-01 Troubleshooting
Troubleshooting 45
1.12 Field Setting Error
Remote Controller
LCD Display
Error Code UU
UU
AA
AA
Inspection 5 Unit No. 1
LED Indication Remote Controller 1 Main Unit 5
Error Detection
Method
Microcomputers checks if data are transmitted correctly on the communication wire
Error Generating
Conditions
Pleas consult flow chart below
Possible Causes Faulty combination of remote controller
More than 16 units connected to remote controller cable.
Faulty remote controller

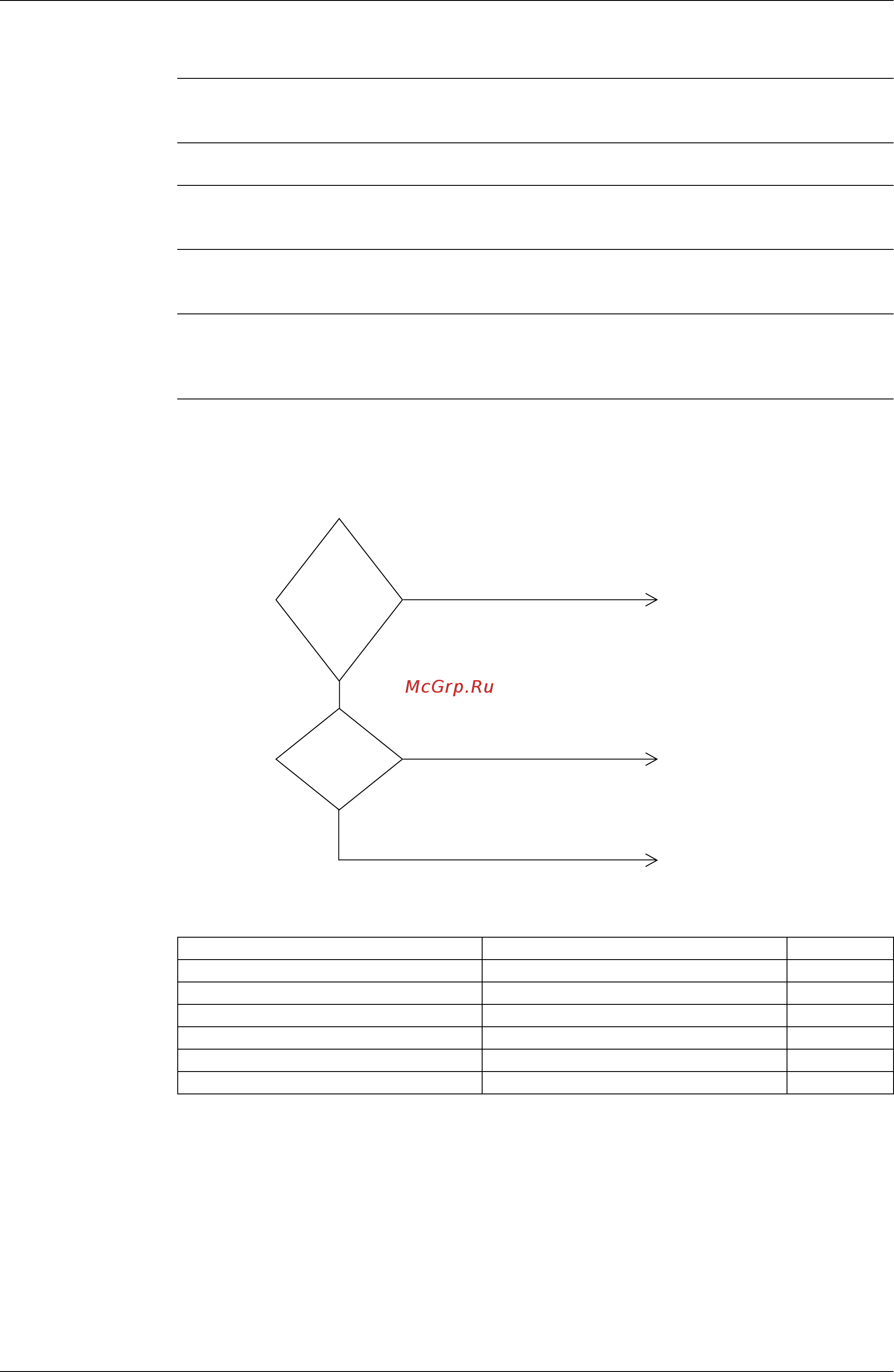

Troubleshooting
<Combination-Right or Wrong>
Main body Remote controller Right/Wrong
Heat recovery ventilation unit only Heat recovery ventilation unit Right
Heat recovery ventilation unit only Heat recovery ventilation unit + air-conditioner Wrong
Heat recovery ventilation unit only Air conditioner Right
Heat recovery ventilation unit + air-conditioner Heat recovery ventilation unit Wrong
Heat recovery ventilation unit + air-conditioner Heat recovery ventilation unit + air-conditioner Right
Heat recovery ventilation unit + air-conditioner Air-conditioner Right
YES
YES
Check the system, and correct
connections.
Change connections so that 16
or fewer units are connected to
remote controller cable.
Replace remote controller.
Is
combination
of remote
controller and HRV
unit (air
conditioner)
correct?
NO
(HF011)
Are
17 or more
units connected
to remote
controller
cable?
NO
Refer "Combination-Right or Wrong"
